Cable and ConnectorsPressure Transmitters
100mbar…100bar pressure range
Suitable for sanitary applications
Suitable for 1.5″ tri-clamp connection
±0.5%FS accuracy
4-20 mA, 0-10V etc. analog output options
IP65 protection
BT10-211 flush pressure transmitter is applicable to food, beverage, pharmaceutical and biological engineering. Full metal flush-mounting isolation diaphragm is directly welded with process connection to ensure the precision connection between process connection and measuring diaphragm. Therefore, no additional sealing gaskets are required, and it ensures there are no measurement dead zones.
| Pressure Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| 0…100 mBar to 0…100 Bar | 4-20mA, 0-20mA, 0-10V, 1-6V, 0-5V, Ratiometric | IP 65 | ±0.5%FS |  |
-1bar…0~0.002bar…100bar pressure range
Flange mounting
±0.3%FS accuracy
Double-wire mode, 4～20mA analog output, HART® protocol
IP65 protection class
Intelligent LCD gauge outfit with backlight
BT10-212 Flush Pressure Transmitter with Flange is a type of flush product in order to meet the flange mounting requirement of the customer. This series are widely applied for the viscous media with particles in the fields such as industrial process control, petroleum, chemical industry, metallurgy etc.
| Pressure Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| -1bar…0~0.002bar…100bar | 4-20mA, 4-20mA+HART | IP 65 | ±0.3%FS | |
Diffusion silicone sensor, 316SUS stainless steel diaphragm
Options from 1Bar to 160Bar
Stainless steel body
High accuracy and stability
Powerful anti-interference design
Remote transmission
IP65 protection class
Suitable for sanitary applications
The diaphragm material of BT10-214 series pressure transmitters is diffusion silicone and the body is stainless steel. Pneumatic system, hydraulic system, environmental protection and medical industry etc.
Datasheet
| Pressure Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| 0~1bar…160bar | 4-20mA | IP 65 | ±%0.5FS, ±%0.25FS | |
0~0,0025bar…0,01bar…1bar pressure range
Suitable for low pressure
φ8 agnail connection, easy to install
±0.5%…±3%FS accuracy
4-20 mA analog output
IP65 protection class
BFT10-110 Differential Pressure Transmitter is ideal for use at low pressures. Pressure connection is in M10 thread and agnail structure. It is widely used in the field of automatic pressure detection and control for air supply in underground ventilation and other electrical and mining industries.
| Pressure Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| 0~0,0025bar…0,001bar…1bar | 4-20mA | IP 65 | ±0.5%…±3%FS | |
0~0,005bar…0,01bar…1bar pressure range
Suitable for low pressure
Diameter 10 barb structure pressure port
±0.5%…±1%FS accuracy
4-20 mA analog output
Built-in LCD display
BFT10-111 Differential Pressure Transmitter is ideal for use at low pressures. Pressure connection is in M10 thread and agnail structure. It is widely used in the field of automatic pressure detection and control for air supply in underground ventilation and other electrical and mining industries.
Datasheet
| Pressure Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| 0~0,005bar…0,001bar…1bar | 4-20mA | IP 65 | ±0.5%…±1%FS | |

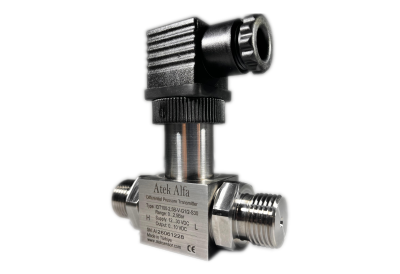

Piezoresistive silicone differential pressure sensor
Stainless steel housing (304)
Different models from 100 mBar to 25 Bar
4-20mA, 0-5 VDC or 1-5 VDC analog output options
±0.5% F.S accuracy
IP65 protection class
Compact construction
MEMS based piezoresistive silicon sensor; stainless steel body; long term stability and high precision; EMC and reverse polarity protection
| Differential Pressure Measuring Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| Different options from 100 mBar to 25 Bar | 4-20 mA, 0-5 VDC, 1-5VDC | IP65 | ±%0,5 F.S | |
Piezoresistive silicone differential pressure sensor
Stainless steel housing (304L)
Different models from 100 mBar to 25 Bar
4-20mA, 0-20mA, 0-10VDC, 0-5 VDC, 1-5 VDC or 0,5-4,5VDC analog output options
±0.5% F.S accuracy
IP65 protection class
Compact construction
MEMS based piezoresistive silicon sensor; stainless steel body; long term stability and high precision; EMC and reverse polarity protection
| Differential Pressure Measuring Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| Different options from 100 mBar to 25 Bar | 4-20 mA, 0-20mA,0-10VDC 0-5 VDC, 1-5VDC,0,5-4,5VDC | IP65 | ±%0,5 F.S | |
Suitable for temperatures up to 300°C
Can work with pressures up to 400 bar
G1/2 or G1/4 connections
Pressure transmitter cooling elements are products that cool the body of the pressure transmitters in high temperature applications and protect them from temperature. It can be used in different connections with different inlet / outlet dimensions.
| Maximum Pressure | Mechanical Connection | Maximum Temperature | Body | Datasheet |
|---|---|---|---|---|
| 400 Bar | G1/4F-G1/2M, G1/4F-G1/4M, G1/2F-G1/2M, G1/2F-G1/4M | 300°C | 316L Stainless Steel | |
Pressure and temperature measurement with a single sensor
Completely welded thin-film steel diaphragm structure that does not require o-ring
Pressure measuring range options from 0…6 bar to 0…1000 bar (optional others)
-40 … +150°C temperature measurement (optional others)
4-20mA, 0-10V, 0.5-4.5V Ratiometric, PT100, PT1000 output options
G1/4, G1/2, NPT1/4, NPT1/2, M14x1 process connection options
High accuracy and stability
Measurement of both pressure and temperature via a single sensor; Fully welded Thin-film steel diaphragm structure that does not require O-rings; high sensitivity; EMC and reverse polarization protection; wide range of analog output and mechanical connection options
| Measuring Range | Output | Mechanical Connection | Protection | Datasheet |
|---|---|---|---|---|
| Temperature: -40ºC … +150ºC (opt. others) Pressure: 6… 1000 bar (opt. others) |
4-20mA, 0-10V, 0.5-4.5V Ratiometric, RTD | G1/4, G1/2, NPT1/4, NPT1/2, M14x1 vb. | IP65 or IP67 | |
Pressure and temperature measurement with a single sensor
Completely welded thin-film steel diaphragm structure that does not require o-ring
Pressure measuring range options from 0…10 bar to 0…2000 bar (optional others)
-40 … +150°C temperature measurement (optional others)
4-20mA, 0-10V, 0.5-4.5V Ratiometric, PT100, PT1000 output options
High accuracy and stability
Measurement of both pressure and temperature via a single sensor; Fully welded Thin-film steel diaphragm structure that does not require O-rings; high sensitivity; EMC and reverse polarization protection; wide range of analog output and mechanical connection options
| Measuring Range | Output | Mechanical Connection | Protection | Datasheet |
|---|---|---|---|---|
| Temperature: -40ºC … +150ºC (opt.others) Pressure: 10… 2000 bar (opt.others) |
4-20mA, 0-10V, 0.5-4.5V Ratiometric, RTD | G1/4 | IP65 or IP67 | |
