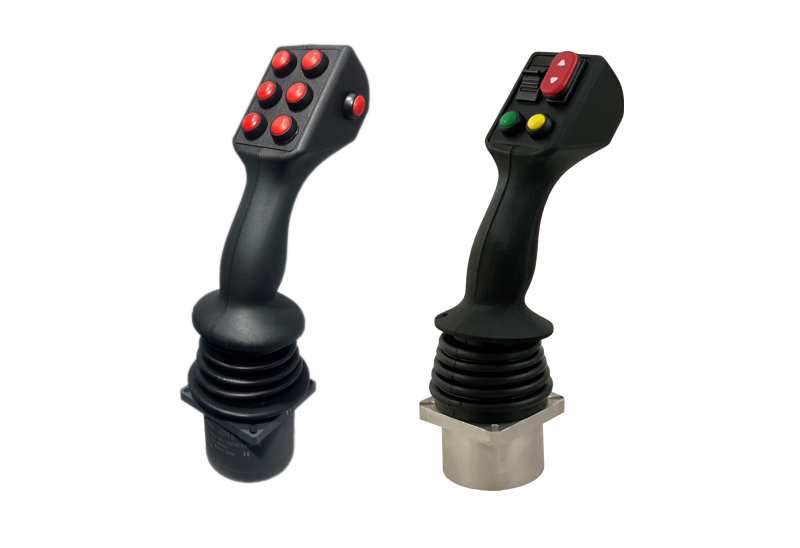

Joysticks
Dro, Display and Counters
Elevator Light Curtains
Speed and Motion Measurement
Counting Sensors
Seismic / Earthquake Sensors
Mechanical Plunger Switches
Accelerometers
Faucet Sensors
Seam Detector Sensors
Encoder Signal Conditioner and Optical Isolator
Couplings
Cable and Connectors
HSO Series Encoder Signal Conditioner and Optical Isolator
Provides optical isolation between the encoder signal and PLC, servo driver or other input devices
Can change the encoder’s signal voltage to match the receiver input
Converts non-differential output (A, B, Z) to differential output (A, B, Z, A/, B/, Z/)
Converts differential output (A, B, Z, A/, B/, Z/) to non-differential output (A, B, Z)
Converts open collector output to differential or non-differential output
Easy mounting on panels with DIN Rail system
Versatile interface between incremental encoder and receiving devices; Ability to convert non-differential signal to differential, differential signal to non-differential; cleaning noisy signals; adjusting the encoder signal voltage according to the receiver; DIN rail system
| Isolator Output Type | Isolator Input Type | Isolator Signal Input Voltage | Output Speed | Isolator Output Voltage | Datasheet |
|---|---|---|---|---|---|
| A, B, Z, A/, B/, Z/ Quadrature | Differential line driver Non-differential line driver, non-differential open collector | 5-30VDC (TTL, RS422, Line Driver) | 1 Mhz Max | 5VDC differential line driver, 5-24VDC differential line driver |  |
- Provides optical isolation between the encoder signal and PLC, servo driver or other input devices
- Provides clearing of noisy signals
- Can change the encoder’s signal voltage to match the receiver input
- Converts non-differential output (A, B, Z) to differential output (A, B, Z, A/, B/, Z/) or
- Converts differential output (A, B, Z, A/, B/, Z/) to non-differential output (A, B, Z)
- Converts open collector output to differential or non-differential output
- Can be used as repeater for longer cable distances
- Ideal for use with encoders and servo drive encoder signal inputs and outputs
- Easy mounting on panels with DIN Rail system
| Brand |
Atek |
|---|---|
| TECHNICAL FEATURES |
–> |
| Isolator Output Type |
A, B, Z, A/, B/, Z/ Quadrature Output |
| Isolator Input Type / Encoder Signal Output Type |
Differential line driver |
| Isolator Signal Input Voltage / Encoder Signal Output Voltage |
5-30 VDC (TTL, RS422, line driver) |
| Isolator Frequency Response |
Max 1Mhz |
| Isolator Supply Voltage |
6-24VDC |
| Isolator Supply Current |
75 mA |
| Isolator Output Voltage Options |
TTL: 5 VDC Differential Line Driver Output, Independent of supply voltage |
| Protection Level |
Reverse polarity protection |
Ideal for use with encoders and servo drive encoder signal inputs and outputs
