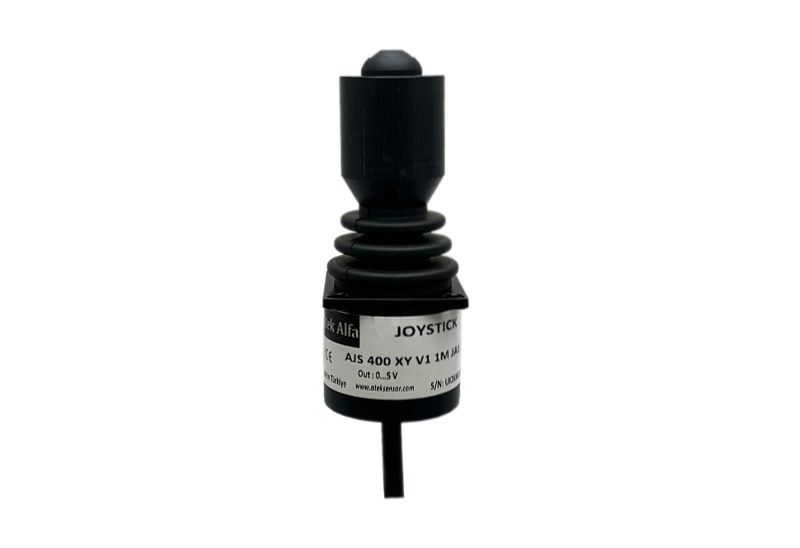

AJS 600 Series Joysticks, Hall-effect || ATEK || Made in Türkiye
Non contact – Hall effect measurement
Dual axis
CANopen or analog output
Configurable button and grip options
11 bit resolution
IP67 protection

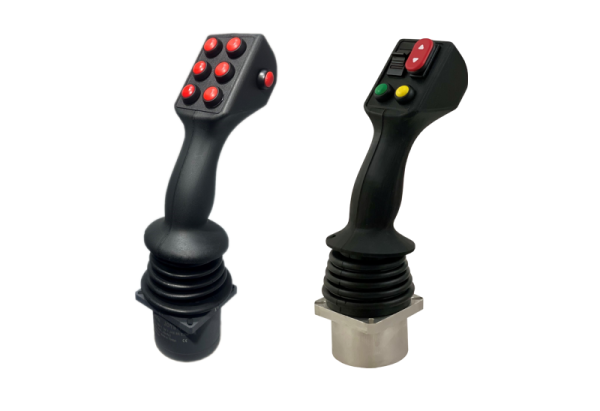

Non contact hall-effect measurement technology; dual axis; CANopen or analog output; ergonomic structure; precise control; configurable button and grip options
| Resolution | Axis | Angle of Movement | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| 11 Bit | 2 axis (X,Y) | ±20° | CANopen or Analog | IP 67 |  |
- Non contact – Hall effect measurement technology
- Dual axis
- Special design for mobile machines
- Robust structure, long service life
- Configurable button and grip options
- Optional Dead man switch
- 5 million cycles mechanical life
- Resistant to electromagnetic field
- 0-10V, 0-5V, 0.5-4.5V, 0-20mA, 4-20mA or CANopen output options
- IP67 protection class
| Brand |
Atek |
|---|---|
| MECHANICAL SPECIFICATIONS |
–> |
| Angle of movement |
±20° (from center) ±1 tolerance |
| Operating Force (X, Y axis) |
6N±1N |
| Life |
5 million lifecycle |
| Material |
Shaft: Stainless steel |
| ENVIRONMENTAL SPECIFICATIONS |
–> |
| Protection Class |
IP67 |
| Operating Temperature |
-40°C…+85°C |
| Storage Temperature |
-40°C…+85°C |
| Relative Humidity |
% 10… % 90 RH |
| ELECTRICAL SPECIFICATIONS FOR ANALOG VERSION |
–> |
| Sensor Type |
Hall-effect, 2 axis |
| Resolution |
11 bit |
| Supply Voltage |
15 … 30 VDC |
| Supply Current |
≤40 mA (per axis) |
| Reverse Polarity Protection |
Yes |
| Short-Circuit Protection |
Yes |
| Overvoltage Protection |
Up to 33V |
| Electrical Interface |
4-20 mA, 0-20 mA, 0-10V, 0-5V, 0.5-4.5V |
| Return to Center Accuracy |
± % 2 |
| Load Resistance |
For current output; min 250 Ω |
| ELECTRICAL SPECIFICATIONS FOR CANOPEN VERSION |
–> |
| Sensor Type |
Hall-effect, 2 axis |
| Resolution |
11 bit |
| Supply Voltage |
8 … 30 VDC |
| Supply Current |
≤40 mA (per axis) |
| Reverse Polarity Protection |
Yes |
| Short-Circuit Protection |
Yes |
| Overvoltage Protection |
Up to 33V |
| Protocol |
CANopen protocol: CiA DS-301 V4.02 |
| Node ID |
Can be set from 1 to 127 with LSS or SDO |
| Baud Rate |
10 kBit/s, 20 kBit/s, 50 kBit/s, 100 kBit/s, 125 kBit/s, 250 kBit/s, 500 kBit/s, 800 kBit/s, 1 Mbit/s |
| PDO Data Rate |
100 ms |
| Error Check |
Heartbeat, Emergency Message |
| PDO |
3 Tx PDO |
| PDO Modes |
Event/Time triggered, Synch/Asynch |
| SDO |
1 server |
| Position Data |
Object Dictionary 0x6020 |
| Terminating Resistor |
Optional |
- Agricultural machinery
- Construction machinery
- Crane and transport machinery
- Forestry machinery
- Mobile vehicles
Benzer Ürünler
60°, 90°, 345°, 350°, 355° electrical angle 6 mm shaft diameter ±0.5% linearity 1000 RPM operating speed Long life up to 10 million movements IP40 protection class
Rotary potentiometer with shaft; synchro size 20; movement life up to 10 million ; infinite and continuous rotation; 2 or 3 potentiometric outputs in one product| Measuring Range | Shaft Diameter | Body Diameter | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|---|
| 60°, 90°, 345°, 350°, 355° |
6 mm |
52.8 mm |
Potentiometric (2 or 3 outputs) |
IP40 |
±0.5% | |
Spring-return (self-return) 60°, 110° or 120° electrical angle 120° or 150° limited mechanical angle M6x1 threaded shaft (optional others) 30 mm body diameter Potentiometric output ±%1 linearity 2 million cycyles lifetime IP67 protection
Rotary potentiometer with spring return; Up to 2 million movement life; Self-return feature; potentiometric output, high protection class| Measuring Range | Shaft Diameter | Body Diameter | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|---|
| Electrical Ang: 60°, 110°, 120° Mechanical Ang: 120°, 150° |
M6x1 |
30 mm |
Potentiometric |
IP67 |
±%1 | |
Resistant to most oils, fuels, hydraulics, dust and solvents Mechanical switch for 10mA - 5A at 9-32VDC Vibration (5G) resistant Designed to allow both vertical and angular movement Standard NO, optional NC switch output IP67 protection class
Oil, fuel, hydraulic and dust resistant; resistant to vibrations; commercial vehicles, industrial equipment, conveyor systems, etc. Status detection and output for many different situations that may occur in systems| Voltage and Current Range | temperature Range | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| 12-24V / 10mA-5A | -40°C ... +150°C | 26mm | NC or NO | IP67 | |
Non-contact distance measurement with laser (TOF) 940 nm invisible laser (VCSEL), Class 2 2000mm mesauring range 12mm small body diamater Analog, CANopen, MODBUS and switch output options IP67 protection class
Precise non-contact distance measurement and approximation detection with laser beam; small and compact structure; Analog, switch, CANopen or MODBUS interface options| Measuring Range | Output | Field of View | Accuracy | Protection | Datasheet |
|---|---|---|---|---|---|
| 2000 mm | 4-20 mA, 0-20 mA, 0-10V, 0-5V, CANopen, RS-485, PNP Open Collector | 18° | ±%2 FS | IP67 | |
Pressure Measurement, Pressure Transmitters, Temperature Measurement, Temperature Sensors and Transmitters, New Products

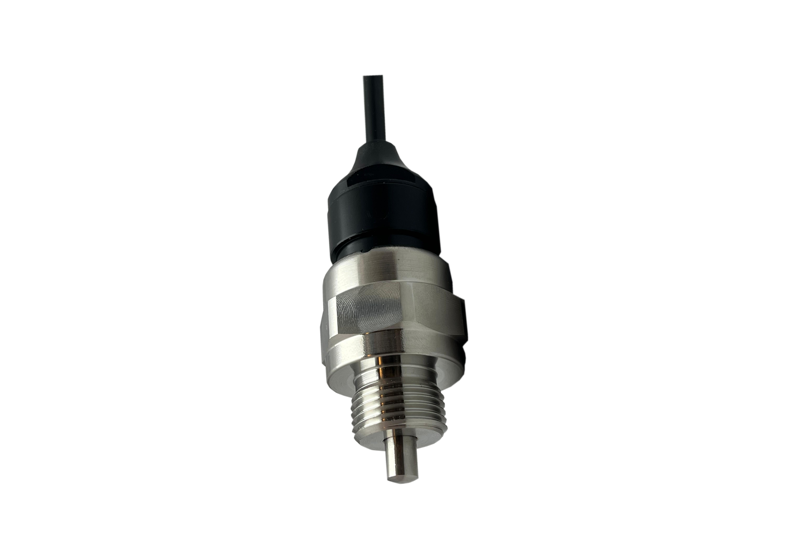

Pressure and temperature measurement with a single sensor Completely welded thin-film steel diaphragm structure that does not require o-ring Pressure measuring range options from 0…10 bar to 0…2000 bar (optional others) -40 … +150°C temperature measurement (optional others) 4-20mA, 0-10V, 0.5-4.5V Ratiometric, PT100, PT1000 output options High accuracy and stability
