TM1 Series (Plug-in Flange) || NOVOTECHNIK || Made in Germany
Non-contact magnetostrictive measurement
Plug-in Flange Rod type body
Absolute operating
Operating pressure up to 350 bar
Analog output options
High precision up to 0.04%
IP67 or IP6K9K protection class
Non-contact and magnetostrictive measuring principle; internal connection to hydraulic or pneumatic cylinders; absolute operation, that is, not to lose position information in case of power failure
| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| 50 – 2000 mm |
Analog (0.5-4.5 V, 0.25-4.75 V, 0-10 V, 4-20 mA)
|
IP 67 / IP 69k
|
≤±0,04 %FS |  |
- Suitable for mobile and industrial applications
- Non-contact magnetostrictive principle
- Endless mechanical life due to completely non-contact measurement
- Special design which can be integrated into hydraulic and pneumatic cylinders thanks to rod type body
- Float reader magnet options suitable for liquid level measurement
- Ring reader magnet options for cylinders
- Speed ​​of movement of reader magnet is unlimited
- Absolute operating
- Operating up to 350 Bar, resistant to instant high pressures up to 450 bar
- Analog output options
- High sensitivity up to 0.04%
| Brand |
Novotechnic |
|---|---|
| Stroke Values |
Different models between 50 mm and 2000 mm |
| Repeatability |
≤ ±0,1 mm |
| Linearity |
±0.04 %FS |
| Output Signals |
4 – 20 mA , 0 – 10 VDC, 0.5 – 4.5 VDC, 0.25 – 4,75 VDC |
| Supply Voltage |
For 0.25 … 4.75 V and 0.5 … 4.5 V : 12/24 VDC (8 … 32 VDC) |
| Mounting |
Plugged into cylinders, secured in position with set screw M5 ISO 4026 |
| Protection Class |
IP69k or IP67 |
| Operating Temperature |
-40 … +105°C |
| Life |
Mechanically unlimited |
| Electrical Connection |
With cable or socket |
- All hydraulic or pneumatic cylinders powered by fluid power
- Manufacturing industry
- Mobile Machines
- Liquid Level Measurement
Benzer Ürünler

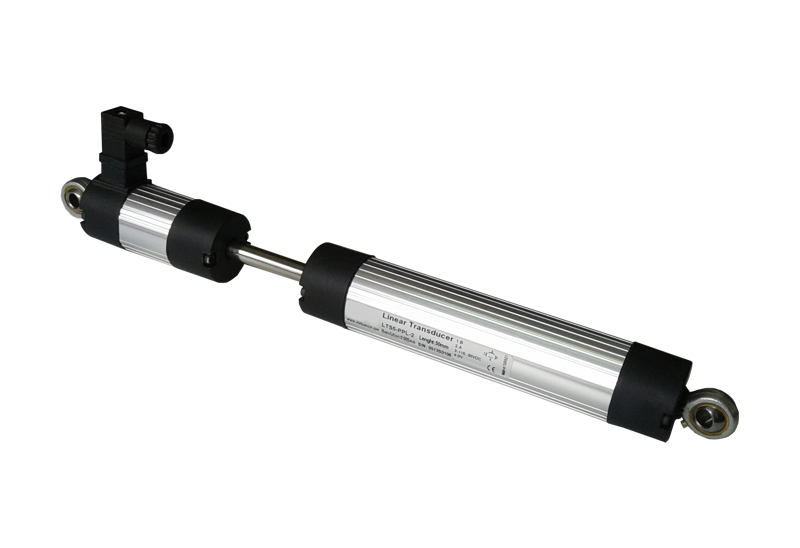

Non-contact inductive measuring principle High linearity: 0.1% 0-20 mA or 4-20 mA analog output options Extra robust housing Long life IP67 or IP50 protection class
Inductive principle with absolute and very precise measurement; unlimited mechanical life due to non-contact; extra durability thanks to fully enclosed body; linear scale which is not affected by temperature changes thanks to special coil| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| 10 mm | Analog (0-20 mA, 4-20 mA) | IP67 | ±0,1 %FS | |
Magnetic, non-contact measurement Incremental encoder output Fixed Z reference point Different measuring lengths between 50 … 2000 mm Resolution options up to 5 µm IP67 protection LED indicator Compatible with Delem, Cybelec and ESA
High accuracy measurement with contactless magnetic system; special design for press brake machines; movable reference point; high tolerance to shock and vibrations; high protection against harsh environments with dust, humidty and oil| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 2000 mm |
Push-Pull, TTL RS422 Line Driver |
IP 67 | B2 | 5µm, 10µm, 25µm,50 µm, 62.5µm | |
Magnetic measurement Small size Easy mounting Measure up to 100 meters Resolution from 1 μm to 100 μm Model with cable or socket Spiral or PUR cable option IP67 protection class
Reader sensor for contactless measurement on magnetic tape; internal tape slider against dust; extra durability against environmental factors such as moisture, oil, dust; model with cable or socket
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 100 meters | Push-Pull, TTL RS422 Line Driver | IP 67 | B2, B5 | 1µm, 5 µm, 10µm, 25µm, 62.5µm, 80µm, 100µm, others on request | |
Magnetic measurement Small size Easy mounting Measure up to 100 meters Resolution from 1 μm to 100 μm Spiral or PUR cable option IP67 protection class
Reader sensor capable of contactless measurement on magnetic tape; the perfect solution for tight spaces with very small size; it is completely insensitive to factors such as moisture, oil, dust, etc.; models with cable or spiral
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 100 meters | Push-Pull, TTL RS422 Line Driver | IP 67 | B2, B5 | 1 µm, 5 µm, 10 µm, 25 µm, 62.5 µm, 80µm, 100µm, others on request | |
Magnetic measurement Incremental output Resolution from 5 μm to 100 μm Easy mounting Options with or without chip scraper IP67 protection class
The principle of magnetic non-contact precision measurement; durable aluminum armored, high temperature, extra resistant against harsh conditions such as vibration or speed; options with cable or spiral; slide or slideless options
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 100 meters | Push-Pull, TTL RS422 Line Driver | IP 67 | B5 | 5µm, 10µm, 25µm, 62.5µm, 80µm, 100µm, others on request | |

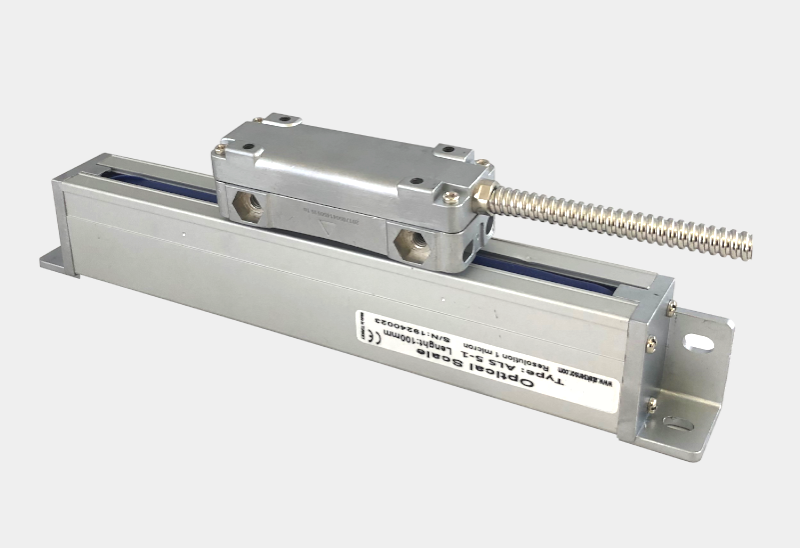

Incremental optical system Different mesuring lengths from 50 mm to 1000 mm Selectable reference signal at every 10 mm 5µm resolution IP54 protection class 60 m/min traversing speed Compatible with Delem, Cybelec and ESA
