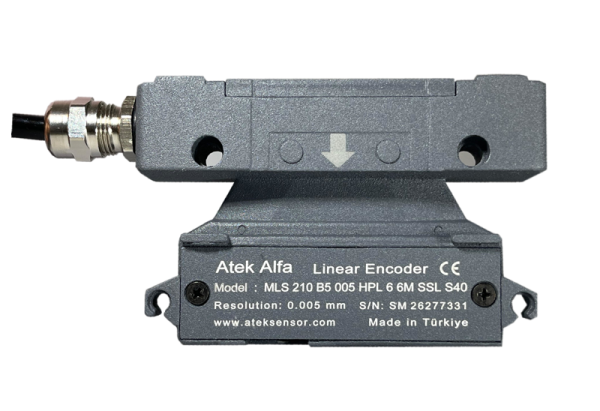

MLS 210 Series Magnetic Reader Sensor || ATEK || Made in Türkiye
Magnetic measurement
Incremental output
Resolution from 5 μm to 100 μm
Easy mounting
Options with or without chip scraper
IP67 protection class
The principle of magnetic non-contact precision measurement; durable aluminum armored, high temperature, extra resistant against harsh conditions such as vibration or speed; options with cable or spiral; slide or slideless options
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 100 meters |
Push-Pull, TTL RS422 Line Driver
|
IP 67 | B5 |
5µm, 10µm, 25µm, 62.5µm, 80µm, 100µm, others on request
|
 |
- Easy mounting
- Big size
- Resolution from 5 μm to 100 μm
- High accuracy and repeatability
- Spiral and wired options
- Measure up to 100 meters
- Robust aluminum armored, metal enclosure
- IP67 protection class
- Options with or without chip scraper
*We highly recommend using our Process Control Devices to precisely display measured values on your Magnetic Linear Scale for motion conrolling, and our DRO(Digital Readout) Displays to use on metal working machines such as CNC, lathe etc.
| Brand |
Atek |
|---|---|
| Measuring Range |
Up to 100 meters |
| Resolution |
5µm, 10µm, 25µm, 50µm, 62.5µm, 80µm, 100µm, (others on request) |
| Measuring Principle |
Magnetic |
| Output Type |
Push-Pull or TTL RS422 Line Driver |
| Magnetic Tape |
B5 |
| Output Signals |
A, /A, B, /B, Z, /Z |
| Input Current |
Maximum 40 mA per channel |
| Supply Voltage |
PP: 10..30 VDC or TTL: 5 VDC |
| Housing Material |
Aluminum |
| Electrical Connection |
D-Sub 9 pin, 5 or 8 x 0,14 mm2 shielded cable |
| Operating Speed |
3 m/s |
| Repeatability |
± 1 Pulse |
| Operating Temperature |
-25°C … +85°C |
| Protection Class |
IP67 |
- Machinery Industry
- PVC Cutting Machines
- Woodworking Machines
- Presses
- Textile Machinery
- Marble Machines
- Transfer Machines
- Saws
- Metal Processing Machines
- Turning, Milling
- Bohrwerk
- Dragline
- Automation and Robots
