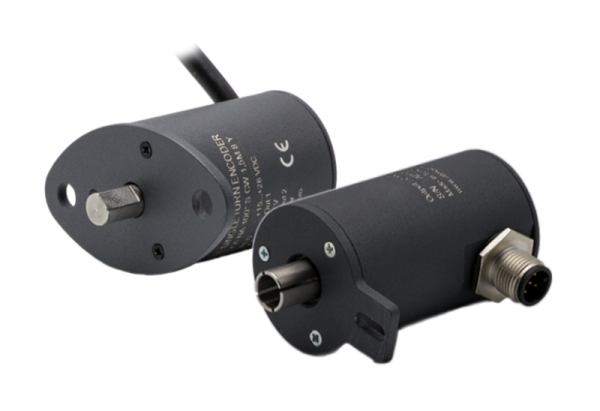

SAS 37 Series Programmable Singleturn Absolute Rotary Encoder || ATEK || Made in Türkiye
Absolute measurement with magnetic principle
37 mm body diameter
CANopen or analog output
Shaft, semi hollow shaft and sleeved options
14 bit angular resolution
3000 RPM operating speed
IP67 protection class
Absolute measurement with magnetic principle; 37 mm body diameter; CANopen or analog output; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| 14 Bit | 6, 8 or 10 mm | 37 mm | CANopen or Analog | IP 67 |  |
- Absolute measurement with magnetic principle
- 37 mm body diameter
- Shaft, semi hollow shaft and sleeved options
- 14 bit angular resolution
- Analog or CANopen output options
- Redundant output
- Analogue output signal forms can be selected according to 3 selected points
- High sensitivity
- IP67 Protection class
| Brand |
Atek |
|---|---|
| Working Principle |
Hall Effect |
| Supply Voltage |
Analog: 15 … 26 VDC |
| Current Consumption |
40 mA |
| Reverse Polarity Protection |
Yes |
| Measuring Range |
0…360° |
| Accuracy |
±0,1° |
| Repeatability |
0,1° |
| Angular Resolution |
14 Bit |
| Response Frequency |
333 Hz |
| Electrical Interface |
CANopen |
| Maximum Speed |
3000 RPM |
| Body Diameter |
37 mm |
| Shaft Diameter |
6 mm, 8 mm or 10 mm |
| Protection Class |
IP67 |
| Operating Temperature |
-20 … +70 °C |
| Relative Humidity |
% 10 … % 90 |
| Material |
Shaft: Stainless Steel |
| Communication Profile |
CiA 301 |
| Device Type |
CANopen, CiA DS406 |
| Node ID |
Between 1 and 127, configurable via LSS or SDO |
| Baud Rate |
10 kBit/s, 20 kBit/s, 50 kBit/s, 100 kBit/s, 125 kBit/s, 250 kBit/s, 500 kBit/s, 800 kBit/s, 1 Mbit/s |
| PDO Data Rate |
100 ms |
| Error Check |
Heartbeat, Emergency Message |
| PDO |
3 Tx PDO |
| PDO Modes |
Event/Time triggered, Synch/Asynch |
| SDO |
1 server |
| Position data |
Object Dictionary 0x6020 |
| Terminating Resistor |
Optional |
- Identifying multi-axis orientation in CNC machines used in component manufacturing
- Automatically determine the height of the scissor bearings used in hospitals
- Correct placement of multiple stabilizers for large vehicles such as cranes or air lifts
- Automatic doors or slots to move without limiting key
- Continue robotic movement even after a power failure
