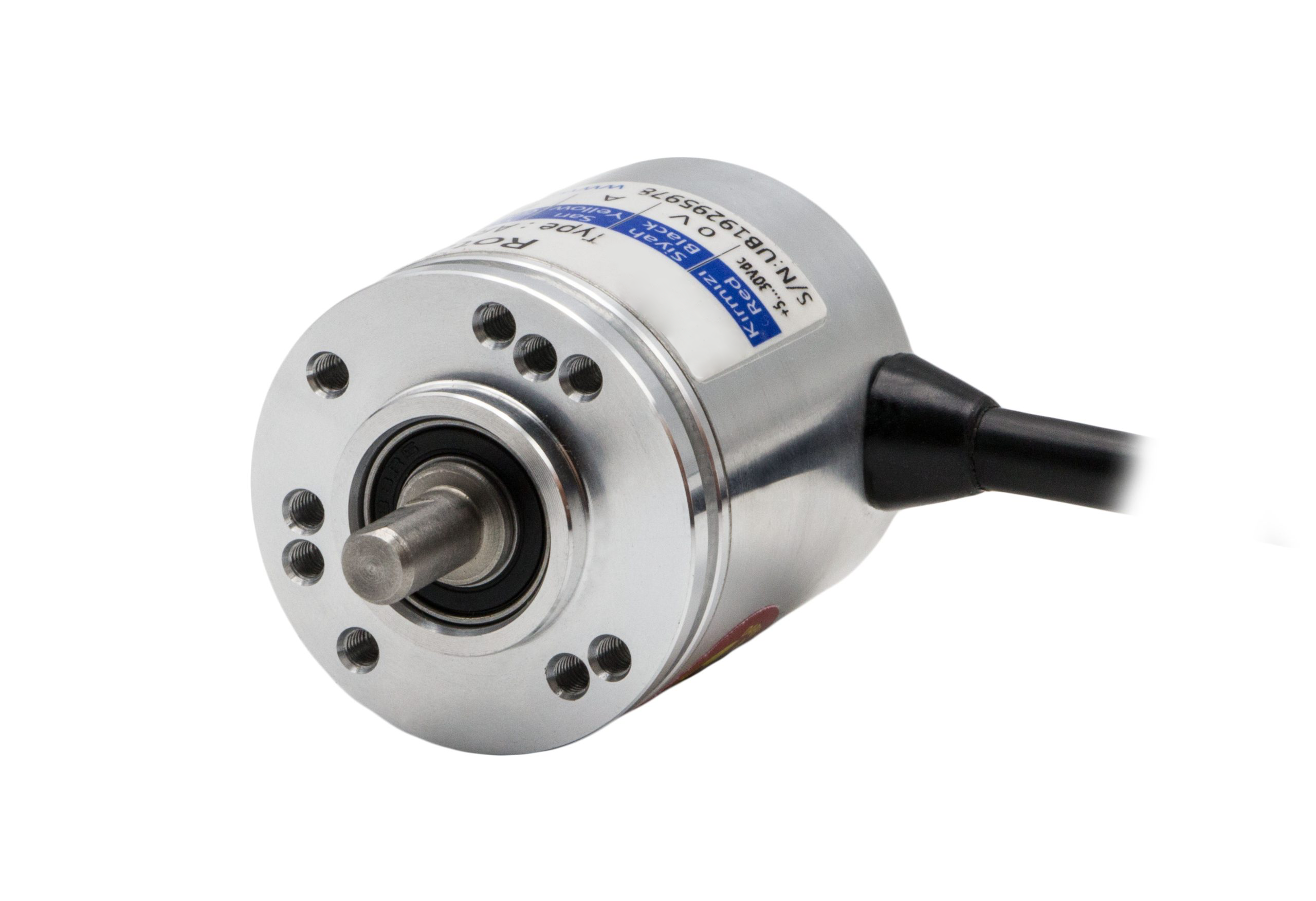

ARS S 37 Shaft || ATEK || Made in Türkiye

Incremental measurement with magnetic principle
37 mm body diameter
6, 8 or 10 mm shaft options
Resolution options from 1 to 1024 pulses
Durable up to 3000 RPM
IP54 protection class

Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 37 mm body diameter; different shaft options

Resolution Shaft Diameter Body Diameter Output Protection Datasheet
Different options from 1 to 1024 pulses 6, 8 or 10 mm 37 mm
Push-Pull, TTL Line Driver, Open Collector
IP 54
  • Magnetic principle, incremental, angular measurement
  • 37 mm body diameter
  • Shaft options of 6, 8 or 10 mm in diameter
  • Resistant to vibration and shock due to robust aluminum body
  • Easy assembly
  • Resolution options from 1 to 1024 pulses
  • Durable up to 3000 RPM
  • IP54 protection class

    -We highly recommend using our Process Control Devices to precisely display measured values on your Rotary Encoder for your automation solutions.

Brand

Atek

Measuring Type

Magnetic

Resolution

Different options from 1 to 1024 pulses

Max Operating Speed

3000 RPM

Output Frequency

300 kHz

Supply Voltage

10 … 30 VDC veya 5 VDC

Current Consumption

50 mA nominal

Output Type

Push pull, TTL Line Driver, Open Collector

Output Signals

A, /A, B, /B, Z, /Z

Input Current

100 mA max (per channel)

Operating Temperature

-25…+85 °C

Storage Temperature

-40…+85 °C

Electrical Connection

5 or 8 x 0,14 mm2 shielded cable

Body Diameter

37 mm

Shaft Diameters

6, 8 or 10 mm

Protection Class

IIP54

Material

Body: Aluminum
Shaft: Stainless Steel

  • Servo-motors
  • In the feedback task of measuring linear movements
  • Elevator industry
  • Packaging and Production lines
  • Machinery Industry
  • Textile Machinery
  • Woodworking Machines
  • Turning, Milling
  • Automation and Robots
