ARS T 40 Series Non-Contact Incremental Rotary Enkoder || ATEK || Made in Türkiye
Non-contact measurement with magnetic principle
Incremental encoder pulse output
40mm body, 20mm rotor diameter
Resolution options from 1 to 1024 pulses
3000 RPM operating speed
IP67 protection class
Non-contact measurement with magnetic principle; 40 mm body diameter; incremental encoder pulse output; compact design
| Resolution | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 40 mm | Push-Pull, TTL Line Driver, Open Collector | IP 67 |  |
- Incremental measurement with magnetic principle
- Resolution up to 1024 pulses
- 40 mm body, 20 mm rotor diameter
- 3000 RPM operating speed
- 300 KHz response frequency
- High accuracy
- Robust structure, long operating life
- Compact design
- IP67 protection
| Brand |
Atek |
|---|---|
| Measuring type |
Magnetic, non-contact |
| Resolution |
Resolution options between 1 and 1024 pulses |
| Operating Speed |
3000 RPM |
| Response Frequency |
300 kHz |
| Supply Voltage |
10 … 30 VDC or 5 VDC |
| Current Consumption |
50 mA nominal |
| Output Type |
Push pull, TTL Line Driver, Open Collector |
| Output Signals |
A, /A, B, /B, Z, /Z |
| Output Current |
100 mA max. (per channel) |
| Electrical Connection |
5 or 8 x 0,14 mm2 shielded cable |
| Maximum Speed |
3000 RPM |
| Dimensions |
Body: Ø40 |
| Weight |
Body: ~55g (except cable) |
| Protection |
IP67 |
| Operating Temp. |
-25°C … +85°C |
| Material |
Body: Aluminum |
- Servo-motors
- In the feedback task of measuring linear movements
- Elevator industry
- Packaging and Production lines
- Machinery Industry
- Textile Machinery
- Woodworking Machines
- Turning, Milling
- Automation and Robots
Benzer Ürünler
Rotary Encoder, Incremental Rotary Encoders, Linear Measurement, Magnetic Linear Encoders, Rotary Measurement
Suitable for MLS 110/120/130/210 series Different resolution options up to 36000 pulses with Atek MLS series reader sensors Magnetic non-contact incremental measurement 1mm, 2mm or 5mm pitch Hollow shaft up to 54mm IP67 protection
Incremental magnetic ring made of sintered hard ferrite material suitable for use with magnetic reader sensors MLS 110/120/130/210 series
| Number Of Pole | Pitch | Material | Accuracy | Datasheet |
|---|---|---|---|---|
| 36, 46, 50, 64, 72, 100 or 128 | 1 / 2 / 5 mm | Sintered hard ferrite | 0.1° / 0.01° (depending on ring diameter) | |
Non-contact measurement with magnetic principle Incremental encoder pulse output 20mm body, 15mm rotor diameter Resolution options from 1 to 1024 pulses 30.000 RPM operating speed IP68 protection class
Non-contact measurement with magnetic principle; 20 mm body diameter; incremental encoder pulse output; compact design
| Resolution | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 20 mm | TTL Line Driver | IP 68 | |
Non-contact measurement with magnetic principle Incremental output Operating speed up t 20.000 RPM 50 mm body diameter Resolution options between 1 pulse and 1024 pulses Standard IP54, optional IP67 protection class
Incremental non-contact measurement with magnetic principle; 50 mm body diameter; operating speed up to 20.000 RPM| Resolution | Hollow Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Options from 1 to 1024 pulses | Different hollow diameters between 5 mm and 16 mm | 50 mm |
Push-Pull, TTL Line Driver, Open Collector |
Standard IP54, Optional IP67 | |
Incremental measurement with optical principle 50 mm body diameter 6, 8 or 10 mm shaft options Resolution options from 60 to 20000 pulses Durable up to 6000 RPM IP54 protection class
Incremental and extremely high precision measurement with optical measuring principle; 50 mm body diameter; different shaft options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 60 to 20000 pulses | 6, 8 or 10 mm | 50 mm | Clamping | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |

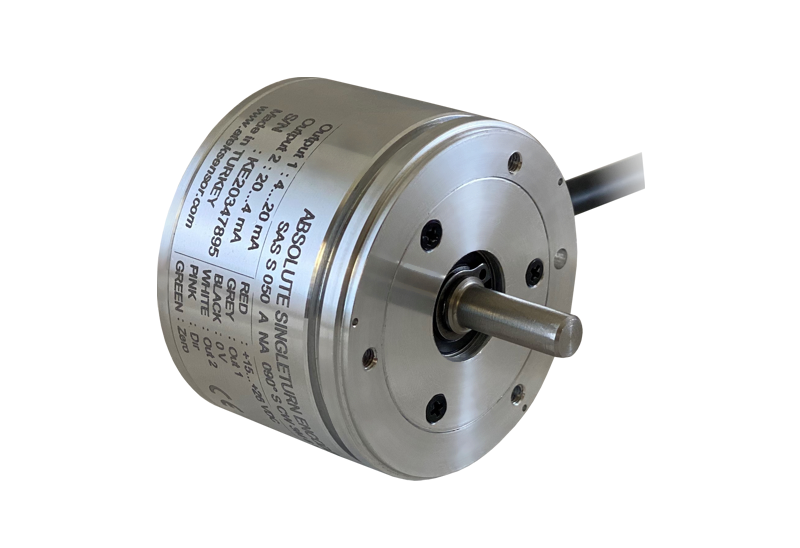

Absolute measurement with magnetic principle 50 mm body diameter 6, 8 or 10 mm shaft options 12 bit angular resolution SSI interface Durable up to 3000 RPM IP54 protection class
