Gncub

Precise and long life melt pressure and temperature sensor
Measurement options from 0 … 17 bar to 0 … 2000 bar
0-20 mA, 4-20 mA, 0-10 VDC analog output options available
0.15%, 0.25% or 0.5% F.S accuracy
IP65 or IP55 protection class
Compact structure

Melt pressure and temperature sensor up to 500 °C (thermocouple); stable and external resistant current or voltage output options; high durability with new membrane technology; NTX technology for precision measurement without mercury


Datasheet
Measuring Range Output Protection Linearity Datasheet
 0 … 17 bar to 0 … 2000 bar
 0-20 mA, 4-20 mA, 0-10 VDC IP65, IP55  0,15%, 0,25% or 0,5% F.S
  • Long life and precise melt pressure and temperature sensor (thermocouple)
  • Measurement options up to 2000 bar
  • High precision: 0.15%, 0.25% or 0.5% FS
  • ±0.1% FS repeatability
  • Stable and long-distance current and voltage output options:

– 4-20 mA with 2, 3 or 4 wires (Most preferred is the standard 2-pin 4-20 mA model.)
– 0-20 mA with 3 or 4 wires
– 0-10 VDC output with 3 or 4 wires

  • Protected against incorrect wiring
  • Special G-coating membrane resistant to adhesive materials
  • Robust G-Armor components
  • J, L or K type thermocouple options
  • Minimum loss of sensitivity to temperature changes: ± 0.02 bar / °C
  • 3 different measuring fluid options:

– Mercury-free NTX ™ (N-terminal telopeptide) fluid for food industry up to 300 °C
– Hg (Mercury) resistant up to 400 °C
– NaK (Sodium Potassium) resistant up to 500 °C

Brand

Gncub
Pressure Range

0…17 bar to 0…2000 bar
Accuracy

0,15 %, 0,25 % OR 0,5 % F.S
Repeatability

± 0,1 %
Membrane Coating

G-coating
Resolution

16 bit
Max. Pressure Overload

2 x range up to 1000bar
1,5 x pressure range over 1000 bar
Bridge Resistance

3500 Ohm
Supply Voltage

12…32 VDC
Output Signal

V or mA
Transmission medium

NTX TM as standard
Mechanical Connection

1/2”20 UNF or M18 x 1,5
Calibration Point

80 %
Insulation Resistance

>1000 MOhm @ 50 V
Max. Temperature at Diaphragm

300 °C NTX
400 °C HG
500 °C NAK
Max. Operating Temperature

– 40… +85 °C
Protection Class

IP65 / IP55
Max Torque

1/2”20 UNF 30 Nm
M18 x 1,5 50 Nm
  • Plastic Machinery
  • Food industry (models with NTX technology without mercury)
  • Pharmaceutical industry (models with NTX technology without mercury)
  • Pipe Machinery
  • Cable coating industry
DATASHEET
PDF

Benzer Ürünler
BCT 22 Pressure Transmitter || ATEK || Made in Türkiye
,

Piezoresistive working principle Stainless steel housing (1.4305) Optional 316L or titanium housing Different models between 100 mBar and 600 Bar Analog 4-20mA / 0-10V and CANopen output options ±0.5% F.S or ± 0.3% F.S accuracy IP65 or IP67 protection class Compact construction

Stainless steel body; high sensitivity; EMC and reverse polarization protected; small and compact design
Datasheet
TR
EN
Measuring Range Output Protection Accuracy Body Diameter Datasheet
Different models from 0...100mbar to 0...600bar  Different vacuum models from 0...-100mbar to 0...-1bar 4-20 mA, 0-10 VDC, 0-20 mA, 1-6 VDC, 0-5 VDC, Ratiometric or CANopen IP65 or IP67 ±%0,5 F.S (ceramic), ±%0,3 F.S (silicon) 22mm
Quick view

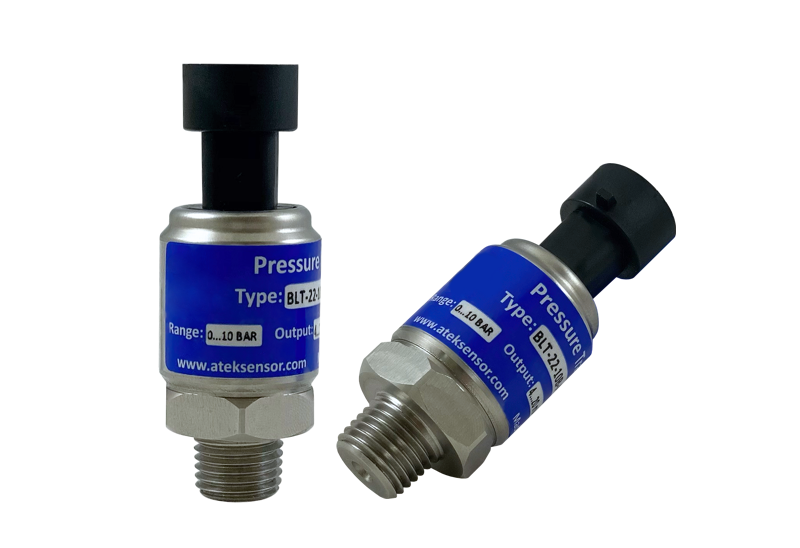

BLT 22 Pressure Transmitter || ATEK || Made in Türkiye
,
