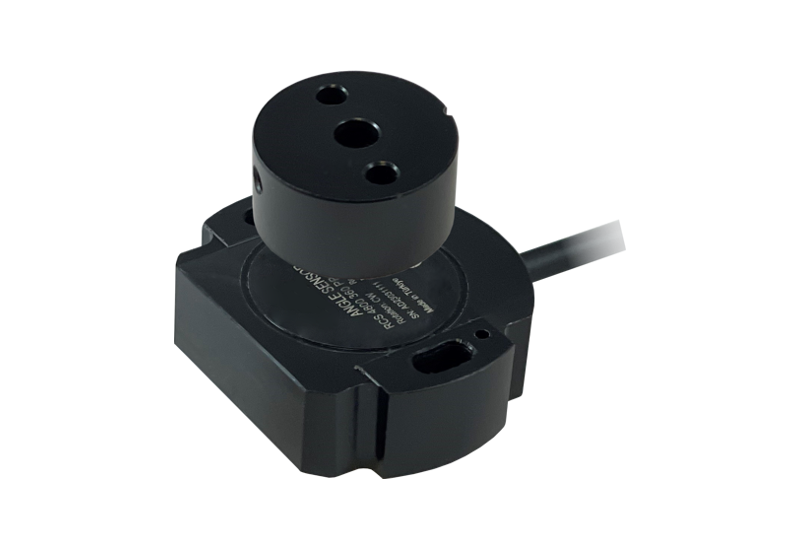

RCS 4800 Series Non-Contact Angle Sensor || ATEK || Made in Türkiye
Non-contact magnetic measurement
0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
User-selectable angle values between 0-360 °
12 bit resolution
±%0.5 FS linearity
IP67 protection class
Contact-free, high-accuracy magnetic principle angular measurement; very durable against harsh environmental conditions; easy installation thanks to its two-piece structure
| Measurement Range | Resolution | Output | Protection | Supply Voltage | Datasheet |
|---|---|---|---|---|---|
| Different options between 0…360º | 12 bit | 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA | IP 67 | 5 VDC or 24 VDC |  |
- Non-contact measurement
- 12 bit resolution
- User-selectable angle values between 0-360 °
- 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
- Resistant to harsh environmental conditions and vibration
- IP67 high protection class
- Long service life
- Compact design
- High accuracy
| Measuring Type |
Magnetic, non-contact |
|---|---|
| Measuring Range |
Can be produced in the desired range from 0 to 360 ° |
| Resolution |
12 bit |
| Linearity |
± % 0.5 FS |
| Repeatability |
0.1° |
| Response Frequency |
250 Hz |
| Output Signal |
Ratiometric (Supply Voltage:5 VDC, Load:≥ 1KΩ) |
| Current Consumption |
30 mA maks |
| Reverse Polarity Protection |
Yes, only supply |
| Operating Temperature |
-25…+85 °C |
| Electrical Connection |
3 x 0,14 mm2 shielded cable |
| Max Operational Speed |
Mechanically unlimited |
| Protection Class |
IP67 |
| Material |
Body: Plastic |
- Robotic systems
- Auto parts
- Solar energy and photovoltaic systems
- Automatic Guided Systems
- Crane and lifting systems
- Wind Power Plants
