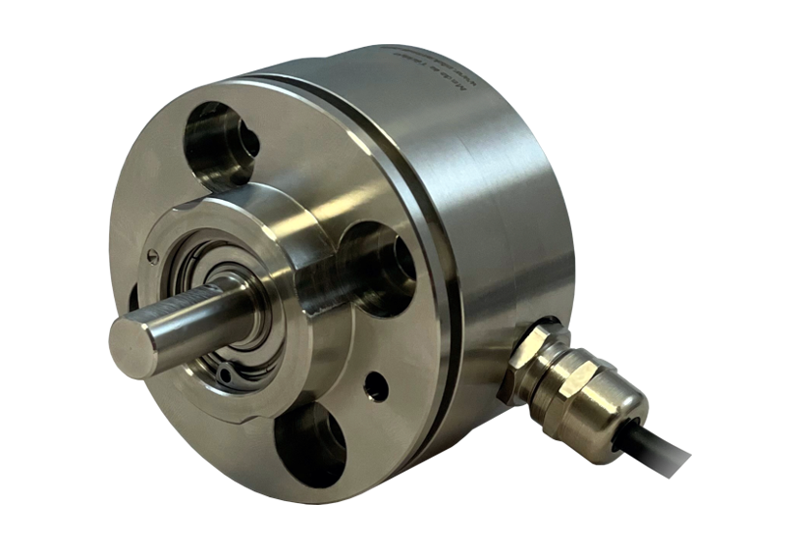

RCS 9200 Series Angle Sensor || ATEK || Made in Türkiye
Non-contact measurement
0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
User-selectable angle values between 0-360°
12 bit resolution
68 mm body, 10 mm shaft diameter
IP67 protection class
Contactless, high-accuracy magnetic principle angular measurement; durable against environmental conditions; connection with coupling; stainless steel body; very long mechanical life
| Measurement Range | Resolution | Output | Body Diameter | Shaft Diameter | Protection | Supply Voltage | Datasheet |
|---|---|---|---|---|---|---|---|
| Different options between 0…360º | 12 bit | 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA | 68mm | 10mm | IP 67 | 5 VDC or 24 VDC |  |
- Non-contact measurement
- 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
- User-selectable angle values between 0-360°
- 12 bit resolution
- 68 mm body, 10 mm shaft diameter
- IP67 protection class
| Brand |
Atek |
|---|---|
| Measuring Typei |
Magnetic, non-contact |
| Measuring Range |
Can be produced in the desired range from 0 to 360 ° |
| Resolution |
12 bit |
| Linearity |
±%0.5 FS |
| Repeatability |
0.1° |
| Response Frequency |
250 Hz |
| Output Signal |
Ratiometric (Supply Voltage:5 VDC, Load:≥ 1KΩ) |
| Current Consumption |
30 mA max |
| Operating Temperature |
-25…+85 °C |
| Electrical Connection |
3 x 0,14 mm² shielded cable |
| Max Operational Speed |
3000 rpm |
| Protection Class |
IP67 |
| Material |
Body: Stainless steel |
- Robotic systems
- Auto parts
- Solar energy and photovoltaic systems
- Automatic Guided Systems
- Crane and lifting systems
- Wind Power Plants
