RCS 2210 Series Non-Contact Angle Sensor || ATEK || Made in Türkiye
Back to products

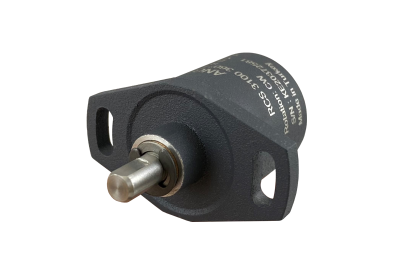

RCS 3100 Series Angle Sensor || ATEK || Made in Türkiye

RCS 2300 Series Angle Sensor || ATEK || Made in Türkiye

Click to enlarge
Atek

Hall-effect measurement technology
12 bit resolution
8 different angle measurement range up to 360°
0.5-4.5VDC (ratiometric or non-ratiometric), 0-10VDC or 4-20mA analog output
Shaft type with lever or without lever
IP69K high protection class

Angular measurement with non-contact, highly accurate hall-effect technology; Shaft with lever or without lever actuator type; Industry standard AMP connector, Various analog output options; Resistant to harsh environmental conditions


Datasheet
TR
EN
 Measuring Range Resolution Output Actuator Type Protection Supply Voltage Datasheet
8 different measurement range up to 360° 12 bit 0.5-4.5V Ratio., 0-10V, 4-20mA
4.5V-0.5V Ratio., 10-0V, 20-4mA		 6mm shaft without lever or with lever IP69K 5 VDC or 24 VDC
  • Hall-effect measurement technology
  • 12 bit resolution
  • 8 different angle measurement range up to 360°
  • 0.5-4.5VDC (ratiometric or non-ratiometric), 0-10VDC or 4-20mA analog output
  • Inverted analog output option
  • Shaft type with lever or without lever
  • Industry standard AMP connector
  • Resistant to electromagnetic fields
  • Easy installation and use
  • IP69K high protection class
Brand

Atek
ELECTRICAL SPECIFICATIONS

–>
Working Principle

Hall Effect
Electrical angle

50° (±25°), 60° (±30°), 70° (±35°), 90° (±45°), 120° (±60°), 180° (±90°), 270° (±135°), 360° (±180°)
Output

0.5-4.5 VDC (ratioetric), 4.5-0.5 VDC (non-ratiometric), 0-10 VDC,4-20 mA
4.5-0.5 VDC (ratiometric), 4.5-0.5 VDC (non-ratiometric), 10-0 VDC, 20-4 mA
Supply voltage

For 0.5-4.5 VDC (ratiometric): 5 VDC
For 0.5-4.5 VDC (non-ratiometric):15…32 VDC
For 0-10 VDC:15…32 VDC
For 4-20 mA:9…32 VDC
Supply current

30mA maks.
Overvoltage protection

Yes
Reverse polarity protection

Yes
Short circuit protection

Yes
Resolution

12 bit
Linearity

±%0.5
Response frequency

250 Hz
MECHANICAL SPECIFICATIONS

–>
Mechanical angle

360°, continious
Life

35M cycles
Material

Shaft: Stainless steel
Sensor housing: Plastic
Sensor bushing: Stainless steel
Mating connector

AMP superseal 282087-1
Mechanical stop

No
Operating temperature

-40°C … +85°C
Protection

IP69K
Media compatibility

Heavy transportation fluids
  • Valve control
  • HVAC damper control
  • Irrigation equipment pivot control
  • Solar energy and photovoltaic systems
  • Robotic systems
  • Automatic guided systems
  • Crane and lifting systems
  • Wind farms
DATASHEET
PDF
PDF
CAD / STEP
ZIP
