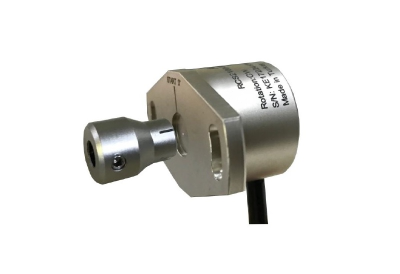

RCS 2210 Series Non-Contact Angle Sensor || ATEK || Made in Türkiye
Non-contact measurement
0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
User-selectable angle values between 0-360°
12 bit resolution
±%0.5 FS linearity
IP67 protection class
Contactless, high-accuracy magnetic principle angular measurement; durable against environmental conditions; special screw socket design
| Measurement Range | Resolution | Output | Protection | Supply Voltage | Datasheet |
|---|---|---|---|---|---|
| Different options between 0…360º | 12 bit | 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA | IP 67 | 5 VDC or 24 VDC |  |
- Non-contact measurement
- 12 bit resolution
- User-selectable angle values between 0-360 °
- 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
- Resistant to harsh environmental conditions and vibration
- IP67 high protection class
- Long service life
- Compact design
- High accuracy
| Brand |
Atek |
|---|---|
| Measuring Typei |
Magnetic, non-contact |
| Measuring Range |
Can be produced in the desired range from 0 to 360 ° |
| Resolution |
12 bit |
| Linearity |
± %0.5 FS |
| Repeatability |
0.1° |
| Response Frequency |
250 Hz |
| Output Signal |
Ratiometric (Supply Voltage:5 VDC, Load:≥ 1KΩ) |
| Current Consumption |
30 mA maks |
| Reverse Polarity Protection |
Yes, only supply |
| Operating Temperature |
-25…+85 °C |
| Storage Temperature |
-40…+85 °C |
| Electrical Connection |
3 x 0,14 mm² shielded cable |
| Max Operational Speed |
Mechanically unlimited |
| Protection Class |
IP67 |
| Material |
Body: Delrin |
- Robotic systems
- Auto parts
- Solar energy and photovoltaic systems
- Automatic Guided Systems
- Crane and lifting systems
- Wind Power Plants
Benzer Ürünler
Rotary Encoder, Incremental Rotary Encoders, Linear Measurement, Magnetic Linear Encoders, Rotary Measurement
Suitable for MLS 110/120/130/210 series Different resolution options up to 36000 pulses with Atek MLS series reader sensors Magnetic non-contact incremental measurement 1mm, 2mm or 5mm pitch Hollow shaft up to 54mm IP67 protection
Incremental magnetic ring made of sintered hard ferrite material suitable for use with magnetic reader sensors MLS 110/120/130/210 series
| Number Of Pole | Pitch | Material | Accuracy | Datasheet |
|---|---|---|---|---|
| 36, 46, 50, 64, 72, 100 or 128 | 1 / 2 / 5 mm | Sintered hard ferrite | 0.1° / 0.01° (depending on ring diameter) | |
Incremental measurement with magnetic principle 37 mm body diameter Different hollow shaft options from 4 to 10 mm Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 37 mm body diameter; different end hollow shaft options
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 4, 5, 6, 8 or 10 mm | 37 mm | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Incremental measurement with magnetic principle 50 mm body diameter 6, 8, 10 or 12 mm semi hollow shaft options Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 50 mm body diameter; end hollow shaft; different flange options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 6, 8, 10 or 12 mm | 50 mm | Z type or Circular | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Incremental measurement with optical principle 50 mm body diameter 6, 8, 10 or 12 mm semi hollow shaft options Resolution options from 60 to 20000 pulses Durable up to 6000 RPM IP54 protection class
Incremental and extremely high precision measurement with optical measuring principle; 50 mm body diameter; end hollow shaft; different flange options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 60 to 20000 pulses | 6, 8, 10 or 12 mm | 50 mm | Z type or Circular | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Incremental measurement with magnetic principle 58 mm body diameter Shaft options between 6 and 20 mm Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 58 mm body diameter; end hollow shaft; different flange options
| Resolution | Hole Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | Different hollow diameters between 6 mm and 20 mm | 58 mm | Z type or Circular | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
ARS: Magnetic, ARC: Optical principle incremental angular measurement 58 mm body diameter Main body is 12 mm, end part is 8 mm thread 1024 pulse resolution Durable up to 6000 RPM IP54 protection class
Exclusive custom product; incremental precision measurement; 58 mm body diameter; magnetic or optical principle option; reverse polarity and short-circuit protection
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| 1024 pulse | Main body: 12mm, End point: 8mm threaded | 58 mm | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
