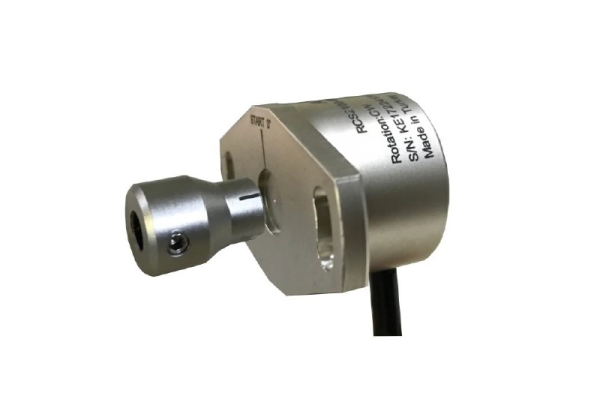

RCS 2100 Series Non-Contact Angle Sensor || ATEK || Made in Türkiye
Non-contact measurement
0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
User-selectable angle values between 0-360 °
12 bit resolution
±%0.5 FS linearity
IP67 protection class
Contact-free, high-accuracy magnetic principle angular measurement; very durable against harsh environmental conditions; special screw socket design
| Measurement Range | Resolution | Output | Protection | Supply Voltage | Datasheet |
|---|---|---|---|---|---|
| Different options between 0…360º | 12 bit | 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA | IP 67 | 5 VDC or 24 VDC |  |
- Non-contact measurement
- 12 bit resolution
- User-selectable angle values between 0-360 °
- 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
- Resistant to harsh environmental conditions and vibration
- IP67 high protection class
- Long service life
- Compact design
- High accuracy
| Brand |
Atek |
|---|---|
| Measuring Typei |
Magnetic, non-contact |
| Measuring Range |
Can be produced in the desired range from 0 to 360 ° |
| Resolution |
12 bit |
| Linearity |
± %0.5 FS |
| Repeatability |
0.1° |
| Response Frequency |
250 Hz |
| Output Signal |
Ratiometric (Supply Voltage:5 VDC, Load:≥ 1KΩ) |
| Current Consumption |
30 mA maks |
| Reverse Polarity Protection |
Yes, only supply |
| Operating Temperature |
-25…+85 °C |
| Storage Temperature |
-40…+85 °C |
| Electrical Connection |
3 x 0,14 mm² shielded cable |
| Max Operational Speed |
Mechanically unlimited |
| Protection Class |
IP67 |
| Material |
Body: Aluminum |
- Robotic systems
- Auto parts
- Solar energy and photovoltaic systems
- Automatic Guided Systems
- Crane and lifting systems
- Wind Power Plants
Benzer Ürünler
Non-contact measurement with magnetic principle Incremental encoder pulse output 20mm body, 15mm rotor diameter Resolution options from 1 to 1024 pulses 30.000 RPM operating speed IP68 protection class
Non-contact measurement with magnetic principle; 20 mm body diameter; incremental encoder pulse output; compact design
| Resolution | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 20 mm | TTL Line Driver | IP 68 | |
Incremental measurement with magnetic principle 37 mm body diameter 6, 8 or 10 mm shaft options Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 37 mm body diameter; different shaft options
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 6, 8 or 10 mm | 37 mm | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Incremental measurement with magnetic principle 50 mm body diameter 6, 8 or 10 mm shaft options Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 50 mm body diameter; different shaft options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 6, 8 or 10 mm | 50 mm | Clamping | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Incremental measurement with magnetic principle 58 mm body diameter 6, 8, 10, 12 or 14 mm shaft options Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 58 mm body diameter; different shaft options; different flange options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 6, 8, 10, 12 or 14 mm | 58 mm | Clamping, Synchro, Tacho and Square | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Incremental measurement with magnetic principle 50 mm body diameter 6, 8, 10 or 12 mm semi hollow shaft options Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 50 mm body diameter; end hollow shaft; different flange options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 6, 8, 10 or 12 mm | 50 mm | Z type or Circular | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Absolute measurement with magnetic principle 37 mm body diameter CANopen or analog output Shaft, semi hollow shaft and sleeved options 14 bit angular resolution 3000 RPM operating speed IP67 protection class
Absolute measurement with magnetic principle; 37 mm body diameter; CANopen or analog output; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| 14 Bit | 6, 8 or 10 mm | 37 mm | CANopen or Analog | IP 67 | |
