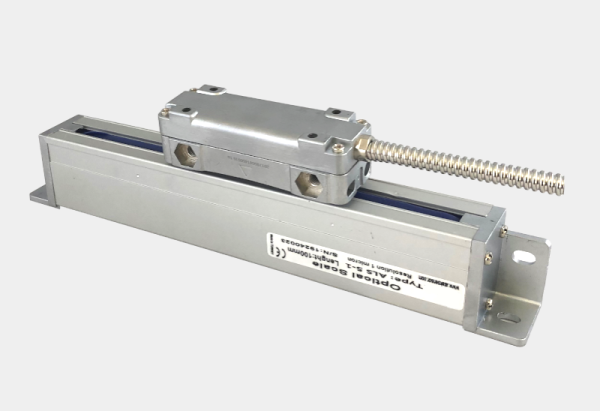

ALS 5 Thick Body Optical Linear Scale || ATEK || Made in Türkiye
Stroke options from 100 mm to 1500 mm
Incremental optical system
Thick body type
Reference point at 50 mm intervals
High resolution up to 1 μm
IP54 protection class
60 m/min operating speed
Optical precision measurement on glass surface; thick body with single gasket protection; 5 ball bearing system orientation; compact design, high accuracy
Measuring Range | Output Type | Protection | Resolution | Datasheet |
---|---|---|---|---|
Different measuring lengths from 100 mm to 1500 mm |
TTL RS-422
or Sinus
|
IP 54 | 1µm, 5µm | ![]() |
- Very precise measurement on glass surface with optical principle
- Thick body type with one gasket
- High resolution options starting from 1 μm
- Robust orientation with 5 ball bearing system
- Easy installation
- Stroke options from 100 mm to 1000 mm
- Reference point at 50 mm intervals
- 60 m/min operating speed capability
Brand |
Atek |
---|---|
Measuring Type |
Optical |
Measuring Lengths |
Different measuring lengths from 100 mm to 1500 mm |
Resolution |
1µm, 5µm |
Signal Period |
20 µm |
Accuracy |
± 10 µm |
Repeatability |
± 1 pulse |
Max Operating Speed |
60m/min |
Supply Voltage |
5 VDC |
Output Type |
TTL RS-422 or Sinus |
Reference Point |
Every 50 mm |
Body Material |
Aluminium |
Operating Temperature |
0°C … +50°C |
Storage Temperature |
-20°C…+70°C |
Protection Class |
IP54 |
Cable Length |
50 – 500 mm (3 meters armored cable) |
