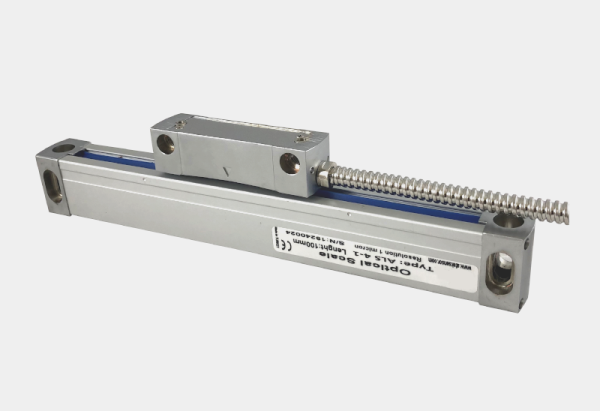

ALS 4 Thin Body Optical Linear Scale || ATEK || Made in Türkiye
Stroke options from 100 mm to 1000 mm
Incremental optical system
Slim body type
Reference point at 50 mm intervals
High resolution options up to 1 μm
IP54 protection class
60 m/min operating speed
Optical precision measurement on glass surface; thin body with single or double gasket protection; 5 ball bearing system orientation; compact design, high accuracy
| Measuring Range | Output Type | Protection | Resolution | Datasheet |
|---|---|---|---|---|
| Different measuring lengths from 100 mm to 1000 mm |
TTL RS-422
or Sinus
|
IP 54 | 1µm, 5µm |  |
- Very precise measurement on glass surface with optical principle
- Slim body type with single or double gasket protection
- High resolution options up to 1 μm
- Robust orientation with 5 ball bearing system
- Easy installation
- Stroke options from 100 mm to 1000 mm
- Reference point at 50 mm intervals
- 60 m/min operating speed capability
*We highly recommend using our Process Control Devices to precisely display measured values on your Optical Linear Scale for motion conrolling.
| Brand |
Atek |
|---|---|
| Measuring Type |
Optical |
| Measuring Lengths |
Different measuring lengths from 100 mm to 1000 mm |
| Resolution |
1µm, 5µm |
| Signal Period |
20 µm |
| Accuracy |
± 10 µm |
| Repeatability |
± 1 pulse |
| Max Operating Speed |
60m/min |
| Supply Voltage |
5 VDC |
| Output Type |
TTL RS-422 or Sinus |
| Reference Point |
Every 50 mm |
| Body Material |
Aluminium |
| Operating Temperature |
0°C … +50°C |
| Storage Temperature |
-20°C…+70°C |
| Protection Class |
IP54 |
| Cable Length |
50 – 500 mm (3 meters armored cable) |
- PVC Cutting Machines
- Machinery Industry
- Woodworking Machines
- Presses
- Textile Machinery
- Marble Machines
- Transfer Machines
- Saws
- Metal Processing Machines
- Turning, Milling
- Bohrwerk
- Dragline
- Automation and Robots
Benzer Ürünler
Precise measurement with inductive principle Ability to calibrate by LED and buttons Superior linearity up to 0.1% 0.05% high resolution More than 100 million movement life Standard (without spring) or spring model options Version with cable or socket
Compact body and tie rod design on both sides; absolute precision measurement with inductive principle; endless mechanical life because it is non-contact; Adjustable measuring parameters with teach-in function
| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| 25 - 200 mm | Analog (0.1-10V, 10-01.V, 4-20mA, 20-4mA) | IP 40 | < ±0,1 %FS | |
Precise potentiometric measurement Different measuring lengths from 100 mm to 3000 mm Linearity up to 0.02% <0.01 mm high resolution Motion life of up to 100 million IP54 protection class
Precise and long-lasting position measurement; takes up less space with rodless design; not affected by misalignment thanks to articulated connection
| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 100 mm and 3000 mm | Analog (potentiometric) | IP 54 | ±%0,02 | |
Precise potentiometric measurement Different measuring lengths from 10 mm to 100 mm Superior linearity up to 0.04% High resolution: <0.01 mm Motion life of up to 50 million Cable or socket versions IP67 protection class
Precise position measurement with extra durable housing; easy mounting with ball joint at both sides; extra long life thanks to the special membrane that compensates the pressure on the shaft; extra protection against vibrations and corrosion
| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 50 mm and 750 mm | Analog (potentiometric) | IP 67 | ±%0.04 | |
Magnetic measurement Incremental encoder output Contactless / non-friction system Slim profile structure Measuring up to 20 meters Resolution options starting from 5µm IP67 protection class
High accuracy measurement with contactless magnetic system; Slim, retention profile closed system; Sealed protection against harsh environments with dust, humid and oil
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 20 meters | Push-Pull, TTL RS422 Line Driver | IP 67 | B5 | 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm, optional other resolutions | |
Magnetic measurement Measuring up to 4000 mm Resolution options starting from 5µm Self-embedded bearing system IP67 protection class Compatible with Delem, Cybelec and ESA
High accuracy measurement with contactless magnetic system; special design for press brake machines; self-aligning system; extra resistant to harsh conditions such as high temperature, speed or vibration
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 4000 mm | Push-Pull, TTL RS422 Line Driver | IP 67 | B5 | 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm, optional other resolutions | |
Stroke options from 100 mm to 3200 mm Incremental optical system Thick and long-distance body type Reference point at 50 mm intervals High resolution up to 1 μm IP54 protection class 60 m/min operating speed
Precise measurement on glass surface with optical principle; thick, long-distance body with single seal; 5 ball bearing system orientation; compact design, high accuracy| Measuring Range | Output Type | Protection | Resolution | Datasheet |
|---|---|---|---|---|
| Different measuring lengths from 100 mm to 3200 mm |
TTL RS-422
or Sinus |
IP 54 | 1µm, 5µm | |
