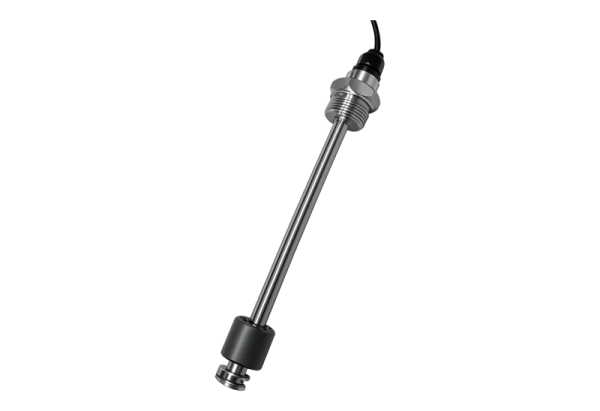

AFT 110 Float Level Sensor || ATEK || Made in Türkiye
Various immersion length options from 75 mm to 1500 mm
Wide range of customizable features (mechanical connection type, electrical connection, material type, etc.)
Various analog output options
Maximum reliability thanks to high-quality reed contacts
Fast and easy installation
| Immersion Length | Output Signal | Process Connection | Protection | Datasheet |
|---|---|---|---|---|
| Different options from 75 to 1500mm | 4…20mA (2 wire), 0…10VDC, 0…5VDC, Ratiometrik | G1/2’’, G1”, G1-1/2’’, G2, M20x1,5 | IP65 |  |
- Various immersion length options from 75 mm to 1500 mm
- Wide range of customizable features (mechanical connection type, electrical connection, material type, etc.)
- Various analog output options
- Maximum reliability thanks to high-quality reed contacts
- Fast and easy installation
| TEKNİK ÖZELLİKLER | |
|---|---|
| Measurement Principle |
The reed contacts are actuated by a magnet located inside the float. The combination of these contacts generates a resistance value corresponding to the liquid level, which is converted into a continuous analog output signal by the transmitter electronics. |
| Çözünürlük |
20 mm |
| Çıkış Sinyali |
4…20mA (2 wire), 0…10VDC, 0…5VDC, 0.5-4.5VDC (Ratiometrik) |
| Supply Voltage |
4-20mA: 8 … 32 VDC |
| Immersion Pipe Length |
Different options from 75mm to 1500mm (optional others) |
| Mechanical Connection |
G1/2’’, G1”, G1-1/2’’, G2, M20x1,5 (optional others) |
| Electrical Connection |
DIN43650-A, DIN43650-C, M12x4 Connector ve Cable |
| Material |
E304 Stainless Steel |
| Protection |
IP65 |
| Working Temperature |
-40°C … +85°C |
The AFT 110 Series Level Sensors are used in a wide range of applications, from industrial automation to food production, providing accurate liquid level monitoring and control. They are suitable for applications in water treatment plants, mobile hydraulic systems, the food and beverage industry, and the chemical and pharmaceutical industries, including:
- Tank level measurement and control
- Boiler level monitoring and control
- Potable water and wastewater level monitoring
- Hydraulic oil tank level measurement and control
