Incremental measurement with optical principle 58 mm body diameter 10 , 12, 14 or 15 mm hollow shaft options Resolution options from 1024 to 20000 pulses Durable up to 6000 RPM IP54 protection class
Incremental and extremely high precision measurement with optical measuring principle; 58 mm body diameter; hollow shaft ; different flange options
Datasheet| Resolution | Hole Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1024 to 20000 pulses | 10, 12, 14 or 15 mm | 58 mm | Z type or Circular |
Push-Pull, TTL Line Driver, Open Collector |
IP 54 |  |

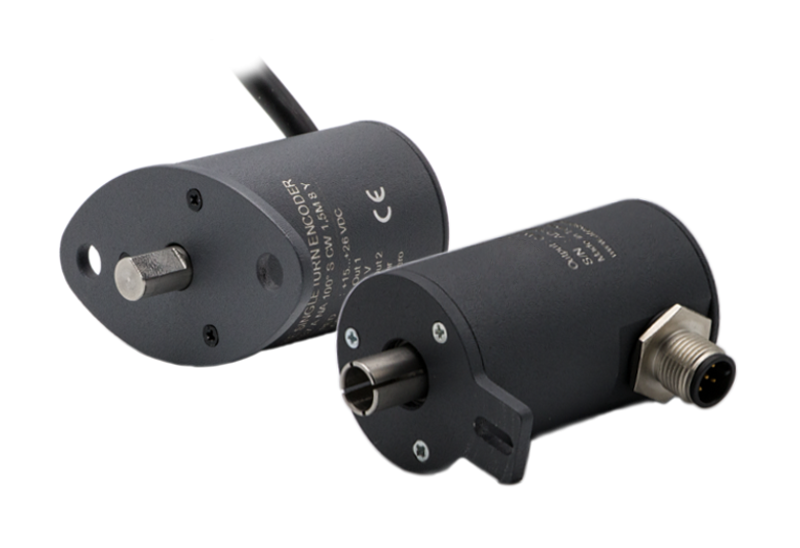

Incremental measurement with magnetic principle 37 mm body diameter 6, 8 or 10 mm shaft options Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 37 mm body diameter; different shaft options
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 6, 8 or 10 mm | 37 mm | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |

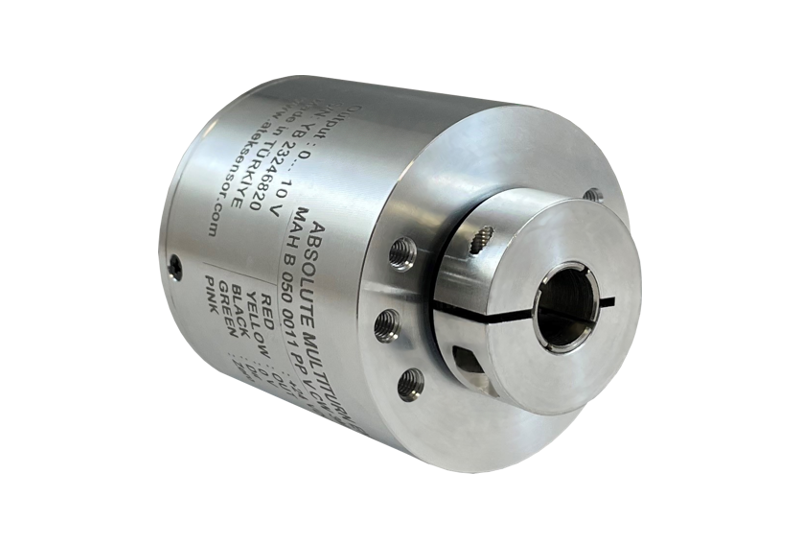

Absolute measurement with magnetic principle 50 mm or 58 mm body diameter Shaft or semi hollow shaft CANopen or analog output For Analog output 14 bit resolution For CANopen output singleturn:1...14 bit, multiturn:1...32 bit resolution 3000 RPM operating speed IP64 protection
Magnetic principled measurement; 50 mm or 58 mm body diameters; absolute measurement; with shaft or hollow shaft; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Analog: 16 Bit CANopen: Singleturn 1...14 bit / Multiturn 1...31 bit | Shaft: 6, 8 veya 10 mm Semi Hollow Shaft: 6, 8, 10, 12, 14, veya 16 mm | 50 or 58 mm | CANopen or Analog | IP 64 | |
Absolute measurement with magnetic princip 58 mm body diameter Shaft options from 6 mm to 17 mm CANopen or analog output For Analog output 14 bit resolution For CANopen output singleturn:1...14 bit, multiturn:1...32 bit resolution 3000 RPM operating speed IP68 protection class
Measurement with magnetic principle; 58 mm body diameter; absolute measurement; shaft; CANopen or analog output; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Analog: 16 Bit CANopen: Singleturn 1...14 bit / Multiturn 1...31 bit | 6, 8, 10, 12, 14, 15 veya 17 mm | 58 mm | CANopen or Analog | IP 68 | |
Non-contact measurement with magnetic principle Incremental output Operating speed up t 20.000 RPM 50 mm body diameter Resolution options between 1 pulse and 1024 pulses Standard IP54, optional IP67 protection class
Incremental non-contact measurement with magnetic principle; 50 mm body diameter; operating speed up to 20.000 RPM| Resolution | Hollow Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Options from 1 to 1024 pulses | Different hollow diameters between 5 mm and 16 mm | 50 mm |
Push-Pull, TTL Line Driver, Open Collector |
Standard IP54, Optional IP67 | |
Incremental measurement with magnetic principle 50 mm body diameter 6, 8, 10 or 12 mm semi hollow shaft options Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 50 mm body diameter; end hollow shaft; different flange options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 6, 8, 10 or 12 mm | 50 mm | Z type or Circular | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Incremental measurement with magnetic principle 58 mm body diameter Shaft options between 6 and 20 mm Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 58 mm body diameter; end hollow shaft; different flange options
| Resolution | Hole Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | Different hollow diameters between 6 mm and 20 mm | 58 mm | Z type or Circular | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Suitable for MLS 110/120/130/210 series Different resolution options up to 36000 pulses with Atek MLS series reader sensors Magnetic non-contact incremental measurement 1mm, 2mm or 5mm pitch Hollow shaft up to 54mm IP67 protection
Incremental magnetic ring made of sintered hard ferrite material suitable for use with magnetic reader sensors MLS 110/120/130/210 series
| Number Of Pole | Pitch | Material | Accuracy | Datasheet |
|---|---|---|---|---|
| 36, 46, 50, 64, 72, 100 or 128 | 1 / 2 / 5 mm | Sintered hard ferrite | 0.1° / 0.01° (depending on ring diameter) | |
Incremental measurement with magnetic principle 50 mm body diameter 6, 8 or 10 mm shaft options Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 50 mm body diameter; different shaft options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 6, 8 or 10 mm | 50 mm | Clamping | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Absolute measurement with magnetic principle 58 mm body diameter 6, 8,10, 12 or 14 mm shaft options 12 bit angular resolution SSI interface Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; absolute precision measurement; 58 mm body diameter; different shaft options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| 12 bit | 6, 8, 10, 12 or 14 mm | 58 mm | Clamping, Synchro, Tacho and Square | SSI 13 bit (12 bit data + 1 stop bit) | IP 54 | |
Incremental measurement with optical principle 50 mm body diameter 6, 8, 10 or 12 mm semi hollow shaft options Resolution options from 60 to 20000 pulses Durable up to 6000 RPM IP54 protection class
Incremental and extremely high precision measurement with optical measuring principle; 50 mm body diameter; end hollow shaft; different flange options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 60 to 20000 pulses | 6, 8, 10 or 12 mm | 50 mm | Z type or Circular | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Absolute measurement with magnetic principle 50 mm body diameeter Shaft options from 6 mm to 17 mm CANopen or analog output For Analog output 14 bit resolution For CANopen output singleturn:1...14 bit, multiturn:1...32 bit resolution 3000 RPM operating speed IP68 protection class
Measurement with magnetic principle; 50 mm body diameter; absolute measurement; shaft; CANopen or analog output; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Analog: 16 Bit CANopen: Singleturn 1...14 bit / Multiturn 1...31 bit | 6, 8, 10, 12, 14, 15 or 17 mm | 50 mm | CANopen or Analog | IP 68 | |
