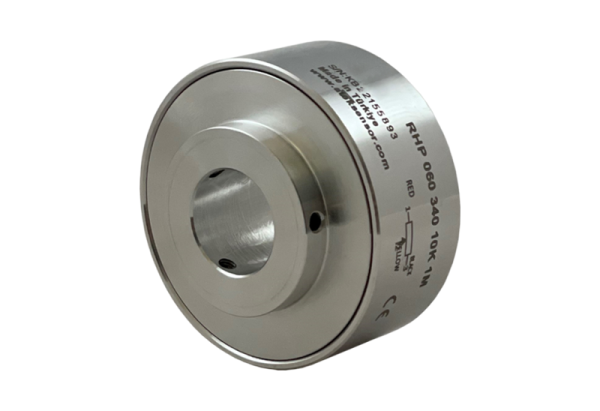

RHP 60 Series Rotary Potentiometer || ATEK || Made in Türkiye
Potentiometric output
150° or 340° electrical angle
20 mm hollow diameter
59.80 mm body diameter
Linearity up to ±0.5%
Long life up to 10 million movements
IP63 protection class
Rotary potentiometer with hollow shaft; movement life up to 10 million ; infinite and continuous rotation; potentiometric output
| Measuring Range | Hollow Diameter | Body Diameter | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|---|
| 150°, 340° |
20 mm
|
59.8 mm
|
Potentiometric
|
IP63
|
±0.5% |  |
• 150° ve 340° electrical angle
• 20 mm hollow shaft
• 59.80 mm body diameter
• Potentiometric output
• High linearity up to ±%0.5
• Long life up to 10 million movements
• Dust and moisture resistant, IP63 protection class
• No mechanical rotation limitation
| Brand |
Atek |
|---|---|
| Electrical Angle |
150°, 340° |
| Output Type |
Potentiometric |
| Resistance Values |
1K, 2K, 5K, 10K |
| Resistance Tolerance |
±% 20 |
| Repeatability |
0.1° max. |
| Independent Linearity |
±% 0.5 |
| Supply Voltage |
42V max |
| Recommended Wiper Current |
100 µA max. |
| Minimum Life (electrical) |
10 million movements |
| Electrical Connection |
3×0,102 mm2 PVC cable (standard 1m, optional others) |
| Mechanical Angle |
360°, continuous |
| Torque |
6 Ncm max. |
| Operating Temperature |
-25°C … +75°C |
| Protection Class |
IP63 |
- Textile machinery
- Automatic door control systems
- Automotive
- All kinds of control and mesurement applications
