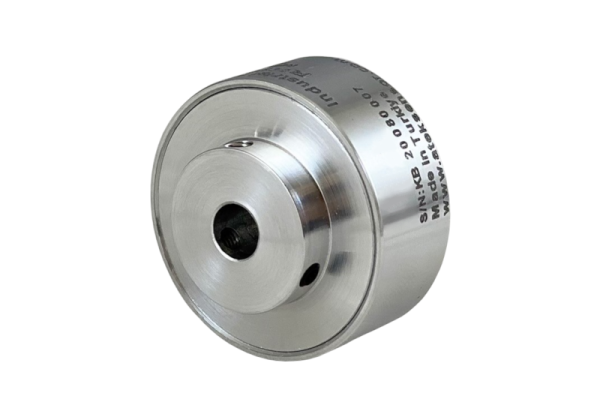

RHP 30 Series Rotary Potentiometer || ATEK || Made in Türkiye
20°, 45°, 150°, 180°, 270° , 354° electrical angle
6…8 mm hollow diameter
Linearity up to ±0.5%
Long life up to 10 million movements
IP63 protection class
Rotary potentiometer with hollow shaft; movement life up to 10 million ; infinite and continuous rotation; analog output options
| Measuring Range | Hollow Diameter | Body Diameter | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|---|
| 20°, 45°, 150°, 180°, 270° , 354° |
6…8 mm
|
30.1 mm
|
Potentiometric, 0-10V, 4-20 mA, 0-20 mA
|
IP63
|
±0.5% |  |
- 20°, 45°, 150°, 180°, 270° , 354° electrical angle
- 6…8 mm hollow diameter
- Potentiometric, 0-10V, 4-20mA, 0-20mA output
- High linearity up to ±0.5%
- Long life up to 10 million movements
- IP63 protection class
- No mechanical rotation limitation
| Brand |
Atek |
|---|---|
| Electrical Angle |
20°, 45°, 150°, 180°, 270° , 354° |
| Resistance Values |
1K, 2K, 5K, 10K |
| Resistance Tolerance |
±% 20 |
| Repeatability |
0.1° max. |
| Independent Linearity |
±%0.5 |
| Output Type |
Potentiometric, 0-10V, 4-20mA or 0-20mA |
| Supply Voltage |
For potentiometric output: 42V max. |
| Recommended Wiper Current |
100 µA max. |
| Minimum Life (electrical) |
10 million movements |
| Electrical Connection |
3×0,102 mm2 PVC cable (standard 1m, optional others) |
| Mechanical Angle |
360°, continuous |
| Çalışma Torku |
Torque |
| Operating Temperature |
-25°C … +75°C |
| Protection Class |
IP63 |
- Textile machinery
- Automatic door control systems
- Automotive
- All kinds of control and mesurement applications
