MAH S 58 Series Programmable Multiturn Absolute Rotary Encoder || ATEK || Made in Türkiye
Absolute measurement with magnetic princip
58 mm body diameter
Shaft options from 6 mm to 17 mm
CANopen or analog output
For Analog output 14 bit resolution
For CANopen output singleturn:1…14 bit, multiturn:1…32 bit resolution
3000 RPM operating speed
IP68 protection class
Measurement with magnetic principle; 58 mm body diameter; absolute measurement; shaft; CANopen or analog output; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Analog: 16 Bit CANopen: Singleturn 1…14 bit / Multiturn 1…31 bit | 6, 8, 10, 12, 14, 15 veya 17 mm | 58 mm | CANopen or Analog | IP 68 |  |
- Absolute measurement with magnetic principle
- 58 mm body diameter
- 6, 8, 10, 12, 14, 15 or 17 mm shaft options
- Analog or CANopen output options
- Programmable analog output
- For Analog output : 16 bit resolution
- For CANopen output : single turn 1…14 bit, multiturn 1…32 bit resolution
- Long service life
- IP68 protection class
| Brand |
Atek |
|---|---|
| ELECTRICAL SPECIFICATIONS |
–> |
| Working Principle |
Hall Effect |
| Measuring Range |
2…2¹⁷ turns |
| Supply Voltage |
Analog : 15 … 26 VDC |
| Current Consumption |
60 mA |
| Reverse Polarity Protection |
Yes |
| Accuracy |
±0,5° |
| Angular Resolution |
For Analog output: 16 Bit |
| Response Frequency |
500 Hz |
| Electrical Interface |
CANopen |
| MECHANICAL SPECIFICATIONS |
–> |
| Maximum Speed |
3000 RPM |
| Body Diameter |
58 mm |
| Shaft Diameter |
6, 8, 10 12, 14, 15 or 17 mm |
| Protection Class |
IP68 |
| Operating Temperature |
-45 … +85°C |
| Relative Humudity |
% 10 … % 90 |
| Material |
Shaft: Stainless Steel |
| CANOPEN SPECIFICATIONS |
–> |
| Communication Profile |
CiA 301 |
| Device Type |
CANopen, CiA DS406 |
| Node ID |
It can be set from 1 to 127 with LSS or SDO |
| Baud Rate |
10 kBit/s, 20 kBit/s, 50 kBit/s, 100 kBit/s, 125 kBit/s, 250 kBit/s, 500 kBit/s, 800 kBit/s, 1 Mbit/s |
| PDOData Rate |
100 ms |
| Error Control |
Heartbeat, Emergency Message |
| PDO |
3 Tx PDO |
| PDO Modes |
Event/Time triggered, Synch/Asynch |
| SDO |
1 server |
| Position Information |
Object Dictionary 0x6020 |
| Termination Resistance |
Optional |
- Identifying multi-axis orientation in CNC machines used in component manufacturing
- Automatically determine the height of the scissor bearings used in hospitals
- Correct placement of multiple stabilizers for large vehicles such as cranes or air lifts
- Automatic doors or slots to move without limiting key
- Continue robotic movement even after a power failure
Benzer Ürünler
Absolute measurement with magnetic principle 58 mm body diameter 6, 8,10, 12 or 14 mm shaft options 12 bit angular resolution SSI interface Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; absolute precision measurement; 58 mm body diameter; different shaft options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| 12 bit | 6, 8, 10, 12 or 14 mm | 58 mm | Clamping, Synchro, Tacho and Square | SSI 13 bit (12 bit data + 1 stop bit) | IP 54 | |
Absolute measurement with magnetic principle 50 mm or 58 mm body diameter Shaft or semi hollow shaft CANopen or analog output For Analog output 14 bit resolution For CANopen output singleturn:1...14 bit, multiturn:1...32 bit resolution 3000 RPM operating speed IP64 protection
Magnetic principled measurement; 50 mm or 58 mm body diameters; absolute measurement; with shaft or hollow shaft; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Analog: 16 Bit CANopen: Singleturn 1...14 bit / Multiturn 1...31 bit | Shaft: 6, 8 veya 10 mm Semi Hollow Shaft: 6, 8, 10, 12, 14, veya 16 mm | 50 or 58 mm | CANopen or Analog | IP 64 | |
Absolute measurement with magnetic principle 50 mm body diameeter Shaft options from 6 mm to 17 mm CANopen or analog output For Analog output 14 bit resolution For CANopen output singleturn:1...14 bit, multiturn:1...32 bit resolution 3000 RPM operating speed IP68 protection class
Measurement with magnetic principle; 50 mm body diameter; absolute measurement; shaft; CANopen or analog output; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Analog: 16 Bit CANopen: Singleturn 1...14 bit / Multiturn 1...31 bit | 6, 8, 10, 12, 14, 15 or 17 mm | 50 mm | CANopen or Analog | IP 68 | |
Non-contact measurement 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options User-selectable angle values between 0-360 ° 12 bit resolution ±%0.5 FS linearity IP67 protection class
Contact-free, high-accuracy magnetic principle angular measurement; very durable against harsh environmental conditions; special screw socket design| Measurement Range | Resolution | Output | Protection | Supply Voltage | Datasheet |
|---|---|---|---|---|---|
| Different options between 0...360º | 12 bit | 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA | IP 67 | 5 VDC or 24 VDC | |
Hall-effect measurement technology 12 bit resolution 8 different angle measurement range up to 360° 0.5-4.5VDC (ratiometric or non-ratiometric), 0-10VDC or 4-20mA analog output Shaft type with lever or without lever IP69K high protection class
Angular measurement with non-contact, highly accurate hall-effect technology; Shaft with lever or without lever actuator type; Industry standard AMP connector, Various analog output options; Resistant to harsh environmental conditions| Measuring Range | Resolution | Output | Actuator Type | Protection | Supply Voltage | Datasheet |
|---|---|---|---|---|---|---|
| 8 different measurement range up to 360° | 12 bit | 0.5-4.5V Ratio., 0-10V, 4-20mA 4.5V-0.5V Ratio., 10-0V, 20-4mA | 6mm shaft without lever or with lever | IP69K | 5 VDC or 24 VDC | |

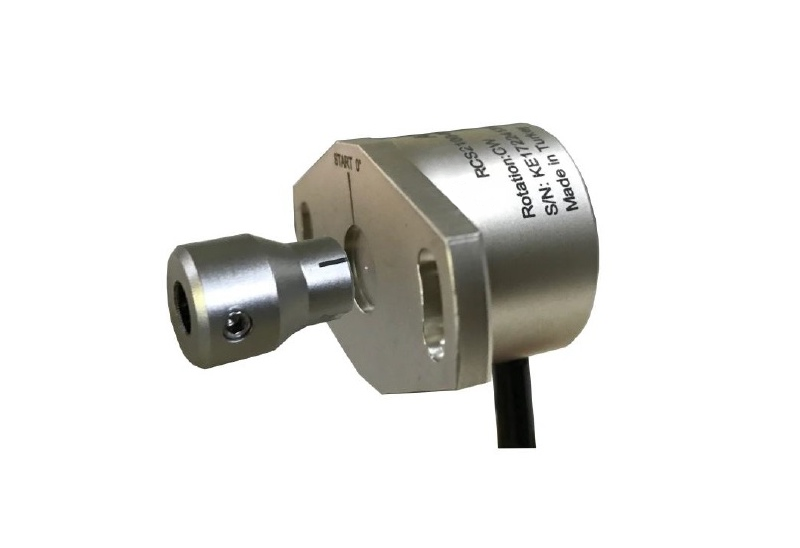

Electrical angle options up to 360° Spring and mechanical stop option for 120° (mechanical 124°) 0-10 VDC, 4-20 mA or ratiometric output options 12 bit resolution 8 mm hole diameter IP54 protection class
Contactless, high-accuracy magnetic principle angular measurement; spring return and mechanical stop option; long life sensor| Electrical Measurement Range | Mechanical Measurement Range | Resolution | Output | Protection | Supply Voltage | Datasheet |
|---|---|---|---|---|---|---|
| Different options between 0...360º | 360° continious, optionally with 124°±3 mechanical stop | 12 bit | Ratiometric, 4-20 mA or 0-10 VDC | IP 54 | 5 VDC or 24 VDC | |
