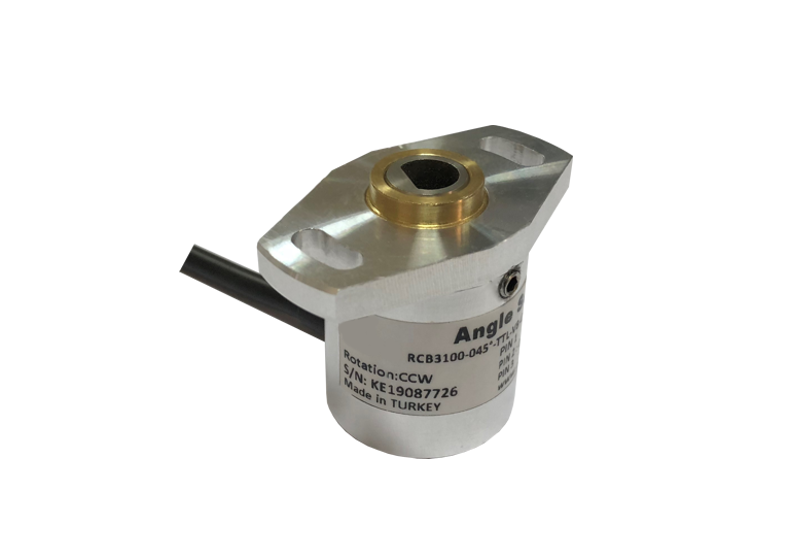

RCB 3100 Series Return Spring System Angle Sensor || ATEK || Made in Türkiye
Electrical angle options up to 360°
Spring and mechanical stop option for 120° (mechanical 124°)
0-10 VDC, 4-20 mA or ratiometric output options
12 bit resolution
8 mm hole diameter
IP54 protection class
Contactless, high-accuracy magnetic principle angular measurement; spring return and mechanical stop option; long life sensor
| Electrical Measurement Range | Mechanical Measurement Range | Resolution | Output | Protection | Supply Voltage | Datasheet |
|---|---|---|---|---|---|---|
| Different options between 0…360º | 360° continious, optionally with 124°±3 mechanical stop | 12 bit | Ratiometric, 4-20 mA or 0-10 VDC | IP 54 | 5 VDC or 24 VDC |  |
- 12 bit resolution
- 0-10 VDC, 4-20 mA or ratiometric output options
- Electrical angle options up to 360°
- Spring and mechanical stop option for 120° (mechanical 124°)
- IP54 protection
- Long service life
- Compact design
- High accuracy
| Brand |
Atek |
|---|---|
| Measuring Type |
Magnetic, non-contact |
| Electrical Measuring Range |
Can be produced in the desired range up to 360° |
| Mechanical Measuring Range |
360° continious, optionally with 124°±3 mechanical stop |
| Resolution |
12 bit |
| Linearity |
±%0.5 FS |
| Repeatability |
0.1° |
| Response Frequency |
250 Hz |
| Output Signal |
Ratiometric (Supply Voltage:5 VDC, Load:≥ 1KΩ) |
| Reverse Polarity Protection |
Yes, only supply |
| Operating Temperature |
-25…+85 °C |
| Electrical Connection |
3 x 0,14 mm² shielded cable and superseal connector |
| Max Operational Speed |
120 rpm |
| Protection Class |
IP54 |
| Material |
Body: Aluminum |
- Robotic systems
- Auto parts
- Solar energy and photovoltaic systems
- Automatic Guided Systems
- Crane and lifting systems
- Wind Power Plants
