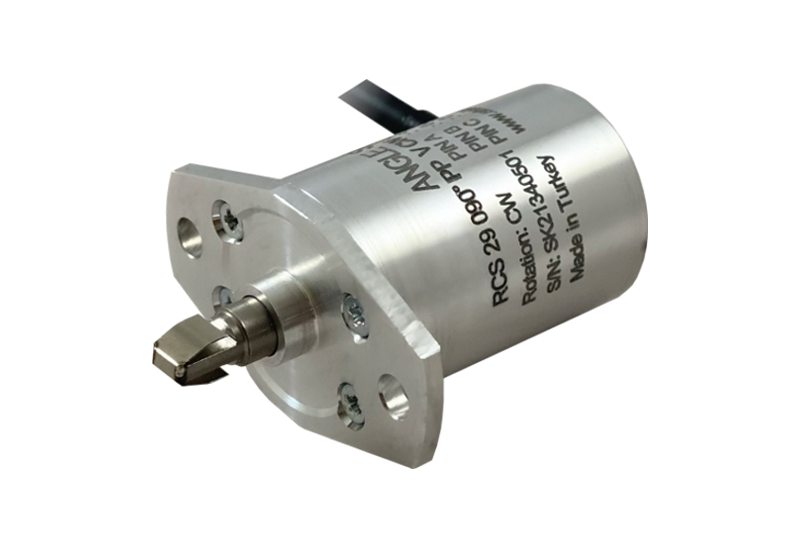

RCS 29 Series Angle Sensor || ATEK || Made in Türkiye
Non-contact measurement
4-20 mA, 0-5VDC, 0-10 VDC or 0.5-4.5 VDC ratiometric output options
User-selectable angle values between 0-360 °
12 bit resolution
Push-on mechanical connection
IP67 protection
Contactless, high-accuracy magnetic principle angular measurement; Push-on mechanical connection; durable against harsh environmental conditions; very long mechanical life
| Measuring Range | Resolution | Output | Protection | Supply Voltage | Datasheet |
|---|---|---|---|---|---|
| Different options between 0…360º | 12 bit | 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA | IP 67 | 5 VDC or 24 VDC |  |
- Non-contact measurement
- 12 bit resolution
- User-selectable angle values between 0-360 °
- 4-20 mA, 0-5VDC, 0-10 VDC or 0.5-4.5 VDC ratiometric output options
- IP67 protection class
- Push-on mechanical connection
- Long service life
- Compact design
- High accuracy
| Brand |
Atek |
|---|---|
| Measuring Type |
Magnetic, non-contact |
| Measuring Range |
Can be produced in the desired range from 0 to 360 ° |
| Resolution |
12 bit |
| Linearity |
±%0.5 FS |
| Repeatability |
0.1° |
| Response Frequency |
250 Hz |
| Output Signal |
Rasyometrik ( Besleme Gerilimi: 5 VDC, Yük : ≥ 1KΩ) |
| Reverse Polarity Protection |
Yes, only supply |
| Operating Temperature |
30 mA maks |
| Operating Temperature |
-25…+85 °C |
| Electrical Connection |
3 x 0,14 mm² shielded cable and DT04-3P connector |
| Max Operational Speed |
120 rpm |
| Protection Class |
IP67 |
| Material |
Body: Aluminum |
- Robotic systems
- Auto parts
- Solar energy and photovoltaic systems
- Automatic Guided Systems
- Crane and lifting systems
- Wind Power Plants
