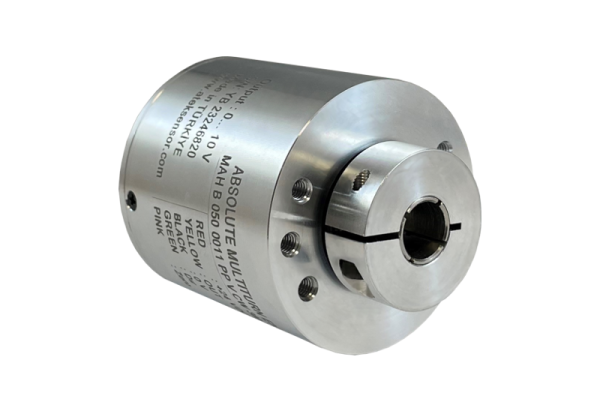

MAH B 50 Programmable Multiturn Absolute Rotary Encoder || ATEK || Made in Türkiye
Absolute measurement with magnetic principle
50 mm body diameter
6, 8, 10, 12, 14 or 15 mm semi hollow shaft options
CANopen or analog output
For Analog output 14 bit resolution
For CANopen output singleturn:1…14 bit, multiturn:1…32 bit resolution
3000 RPM operating speed
IP68 protection
Measurement with magnetic principle; 50 mm body diameter; absolute measurement; semi hollow shaft; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Analog: 16 Bit CANopen: Singleturn 1…14 bit / Multiturn 1…31 bit |
6, 8, 10, 12, 14 or 16 mm | 50 mm | Analog or CANopen | IP 68 |  |
- Absolute measurement with magnetic principle
- 50 mm body diameter
- 6, 8, 10, 12, 14 or 15 mm semi hollow shaft options
- Analog or CANopen output options
- Programmable analog output
- For Analog output : 16 bit,
- For CANopen output : single turn 1…14 bit, multiturn 1…32 bit resolution
- IP68 protection class
| Brand |
Atek |
|---|---|
| ELECTRICAL SPECIFICATIONS |
–> |
| Working Principle |
Hall Effect |
| Measuring Range |
2…2¹⁷ turns |
| Supply Voltage |
Analog : 15 … 26 VDC |
| Current Consumption |
60 mA |
| Reverse Polarity Protection |
Yes |
| Accuracy |
±0,5° |
| Angular Resolution |
Analog: 16 Bit |
| Response Frequency |
500 Hz |
| Electrical Interface |
CANopen |
| MECHANICAL SPECIFICATIONS |
–> |
| Maximum Speed |
3000 RPM |
| Body Diameter |
50 mm |
| Mil Shaft Diameter |
6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 15 mm |
| Protection |
IP68 |
| Operating Temperature |
-45 … +85°C |
| Relative Humudity |
% 10 … % 90 |
| Material |
Şaft: Paslanmaz Çelik |
| CANOPEN SPECIFICATIONS |
–> |
| Communication Profile |
CiA 301 |
| Device Type |
CANopen, CiA DS406 |
| Node ID |
It can be set from 1 to 127 with LSS or SDO |
| Baud Rate |
10 kBit/s, 20 kBit/s, 50 kBit/s, 100 kBit/s, 125 kBit/s, 250 kBit/s, 500 kBit/s, 800 kBit/s, 1 Mbit/s |
| PDO Data Rate |
100 ms |
| Error Control |
Heartbeat, Emergency Message |
| PDO |
3 Tx PDO |
| PDO Modes |
Event/Time triggered, Synch/Asynch |
| SDO |
1 server |
| Position Information |
Object Dictionary 0x6020 |
| Termination Resistance |
Optional |
- Identifying multi-axis orientation in CNC machines used in component manufacturing
- Automatically determine the height of the scissor bearings used in hospitals
- Correct placement of multiple stabilizers for large vehicles such as cranes or air lifts
- Automatic doors or slots to move without limiting key
- Continue robotic movement even after a power failure
