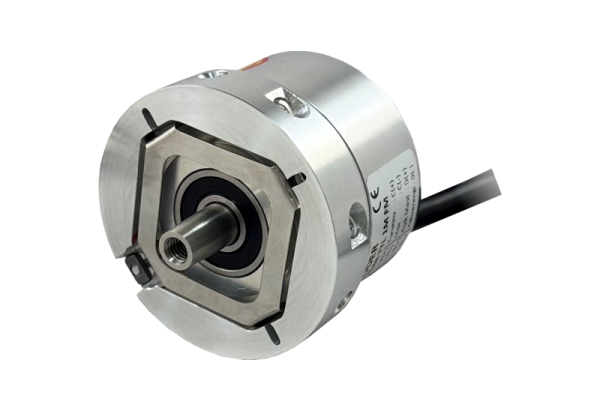

ARF S 58 Absolute Rotary Encoder || ATEK || Made in Türkiye
Magnetic and optic principle absolute measurement
59.6 mm body diameter
10 mm tapered shaft
Incremental 2048 pulse resolution
Durable up to 3000 RPM
IP 54 protection class
Extremely resistant to harsh environmental conditions with magnetic and optic mesauring principle; sin/cos waves output signals; 59.6 mm body diameter; absolute and incremental measurement; compact design with shaft
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Incremental 2048 pulse | 10 mm Tapered Shaft | 59.6 mm | Sin/Cos | IP 54 |  |
- Magnetic and optic principle absolute measurement
- 59.6 mm shaft body diameter
- Incremental 2048 pulse resolution
- Absolute Sin/Cos waves output signals
- Durable up to 3000 RPM
- IP 54 protection class
-We highly recommend using our Process Control Devices to precisely display measured values on your Rotary Encoder for your automation solutions.
| Brand |
Atek |
|---|---|
| Measuring Type |
Optical and Magnetic |
| Resolution |
Incremental 2048 pulse |
| Output Frequency |
≤180 kHz |
| Signal Level |
1 Vpp (±10 %) |
| Short Circuit Protection |
Yes |
| Max Operating Speed |
3000 RPM |
| Supply Voltage |
5 VDC |
| Current Consumption |
≤100 mA |
| Output Type |
Absolute Sin/Cos |
| Operating Temperature |
-25…+85 °C |
| Storage Temperature |
-40…+100 °C |
| Electrical Connection |
12 x 0,14mm2 shielded cable |
| Body Diameter |
59.6 mm |
| Shaft Diameters |
10 mm konik |
| Protection Class |
IP54 |
| Material |
Body: Aluminum |
- Servo-motors
- In the feedback task of measuring linear movements
- Elevator industry
- Packaging and Production lines
- Machinery Industry
- Textile Machinery
- Woodworking Machines
- Turning, Milling
- Automation and Robots
