TR and TRS Series || NOVOTECHNIK || Made in Germany
Precise potentiometric measurement
Different measuring lengths from 10 mm to 100 mm
Superior linearity up to 0.075%
Motion life of up to 100 million
Cable or socket version
IP40 protection class
Precise and cost-effective position measurement; compact design; high speed operation; high repeatability value: 0.002 mm; push-back spring system
| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 10 mm and 100 mm | Analog (potentiometric) | IP 40 | ±%0,075 |  |
- Precise, cost-effective potentiometric measurement
- Excellent linearity: 0.075%
- High resolution: <0.01 mm
- TR series: Cable version TRS series: Plug-in version
- Resistant to high forces at the end of the shaft thanks to the built-in return spring which pushes the shaft out
- It is suitable for measurements such as thickness, curvature, tolerance
- Very high repeatability: 0.002 mm
- Resistant to high-speed movement
- With analog measurement, position information is not lost in case of power failure
- More than 100 million movement life
| Brand |
Novotechnic |
|---|---|
| Stroke Values |
Different measuring lengths between 10 mm and 100 mm |
| Resolution |
<0,01 mm |
| Repeatability |
≤0,002 mm |
| Independent Linearity |
% 0,075 – % 0,25 |
| Resistance Values |
1 or 5 kΩ |
| Insulation Resistance |
≥10 MΩ |
| Max. wiper current |
10 mA |
| Max. permissible applied voltage |
42 V |
| Mounting |
adjustable clamps 2 x Z-45 and 4 x cylinder screw M4x10 (included in delivery |
| Housing |
Aluminum AlMgSi, anodized |
| Protection class |
IP40 |
| Temperature Range |
-30°C … +100°C |
| Life |
> 100 x 106 movements |
| Speed |
5m/s |
| Electrical connections |
TR series: 3-pole cable, PVC insulated, 0.14 mm² (AWG 26), shielded, 2 m length |
- Press Machines
- Textile Machinery
- Marble Machines
- Transfer Machines
- Hydraulic Machines
- Robot and Automation solutions
Benzer Ürünler
Non-contact magnetostrictive measurement Plug-in Flange Rod type body Absolute operating Operating pressure up to 350 bar Analog output options High precision up to 0.04% IP67 or IP6K9K protection class
Non-contact and magnetostrictive measuring principle; internal connection to hydraulic or pneumatic cylinders; absolute operation, that is, not to lose position information in case of power failure
| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| 50 - 2000 mm | Analog (0.5-4.5 V, 0.25-4.75 V, 0-10 V, 4-20 mA) | IP 67 / IP 69k | ≤±0,04 %FS | |
Precise potentiometric measurement Different measuring lengths from 10 mm to 100 mm High resolution: <0.05 mm ± 1% linearity Motion life of up to 10 million Springless and back spring model options IP65 protection class
Precise and cost-effective position measurement; compact design; high speed operation; optional push back spring
| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 10 mm and 100 mm | Analog (potentiometric) | IP 65 | ±%1 | |
Magnetic measurement Incremental encoder output Contactless / non-friction system Measuring up to 20 meters Resolution options starting from 5µm IP67 protection class
High accuracy measurement with contactless magnetic system; Retention profile closed system, Protection against harsh environments with dust, humid and oil
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 20 meters | Push-Pull, TTL RS422 Line Driver | IP 67 | B5 | 5µm, 10µm, 25µm, 50µm, 62.5µm, 100µm, optional other resolutions | |

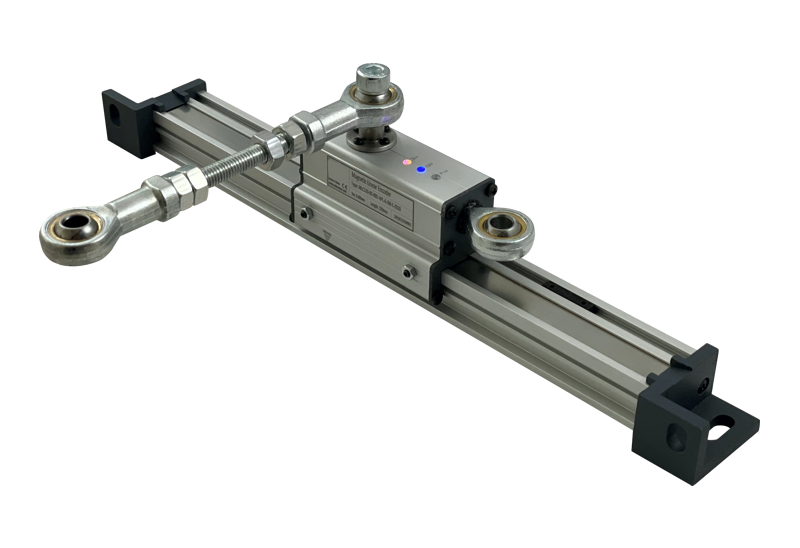

Magnetic, non-contact measurement Incremental encoder output Fixed Z reference point Different measuring lengths between 50 … 2000 mm Resolution options up to 5 µm IP67 protection LED indicator Compatible with Delem, Cybelec and ESA
High accuracy measurement with contactless magnetic system; special design for press brake machines; movable reference point; high tolerance to shock and vibrations; high protection against harsh environments with dust, humidty and oil| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 2000 mm |
Push-Pull, TTL RS422 Line Driver |
IP 67 | B2 | 5µm, 10µm, 25µm,50 µm, 62.5µm | |

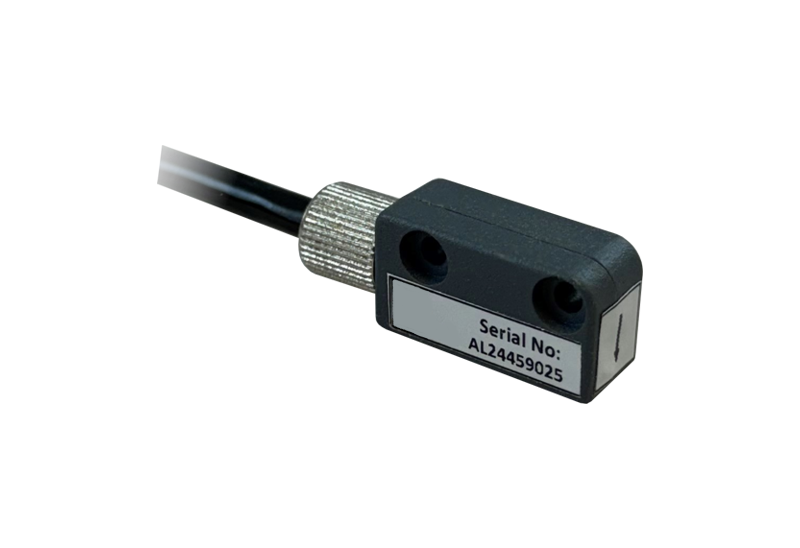

Magnetic measurement Small size Easy mounting Measure up to 100 meters Resolution from 1 μm to 100 μm Spiral or PUR cable option IP67 protection class
Reader sensor capable of contactless measurement on magnetic tape; the perfect solution for tight spaces with very small size; it is completely insensitive to factors such as moisture, oil, dust, etc.; models with cable or spiral
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 100 meters | Push-Pull, TTL RS422 Line Driver | IP 67 | B2, B5 | 1 µm, 5 µm, 10 µm, 25 µm, 62.5 µm, 80µm, 100µm, others on request | |

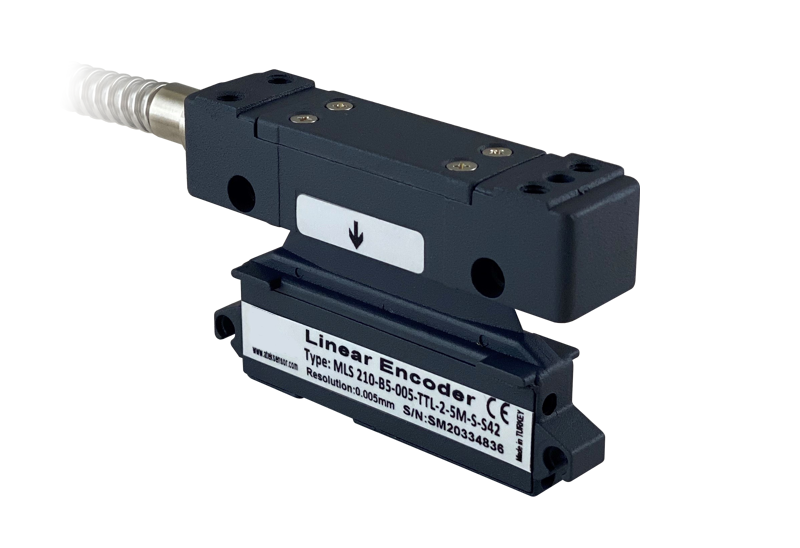

Magnetic measurement Incremental output Resolution from 5 μm to 100 μm Easy mounting Options with or without chip scraper IP67 protection class
The principle of magnetic non-contact precision measurement; durable aluminum armored, high temperature, extra resistant against harsh conditions such as vibration or speed; options with cable or spiral; slide or slideless options
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 100 meters | Push-Pull, TTL RS422 Line Driver | IP 67 | B5 | 5µm, 10µm, 25µm, 62.5µm, 80µm, 100µm, others on request | |
