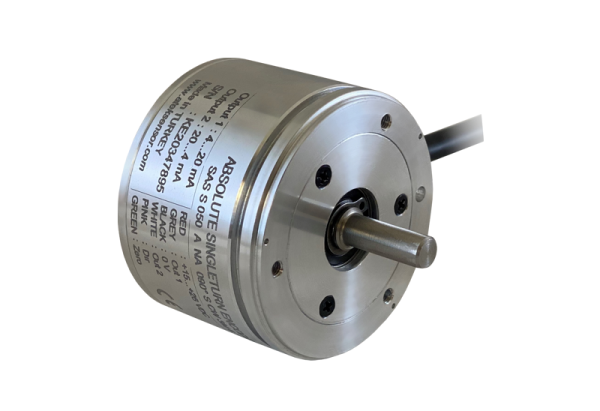

SAS 51 Series Programmable Singleturn Absolute Rotary Encoder || ATEK || Made in Türkiye
Absolute measurement with magnetic principle
50 mm body diameter
CANopen or analog output
6 mm or 8 mm shaft diameter
14 bit angular resolution
3000 RPM operating speed
IP67 protection class
Absolute measurement with magnetic principle; 50 mm body diameter; CANopen or analog output; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| 14 Bit | 6 mm or 8 mm | 50 mm | CANopen or Analog | IP 67 |  |
- Absolute measurement with magnetic principle
- 50 mm body diameter
- 6 mm or 8 mm shaft diameter
- 14 bit angular resolution
- Analog or CANopen output options
- Redundant output
- Analogue output signal forms can be selected according to 3 selected points
- High sensitivity
- IP67 Protection class
| Brand |
Atek |
|---|---|
| ELECTRICAL SPECIFICATIONS |
–> |
| Working Principle |
Hall Effect |
| Supply Voltage |
For Analog: 15 … 26 VDC |
| Current Consumption |
40 mA |
| Reverse Polarity Protection |
Yes |
| Measuring Range |
0…360° |
| Accuracy |
±0,1° |
| Repeatability |
0,1° |
| Angular Resolution |
14 Bit |
| Response Frequency |
333 Hz |
| Electrical Interface |
CANopen |
| MECHANICAL SPECIFICATIONS |
–> |
| Maximum Speed |
3000 RPM |
| Body Diameter |
50 mm |
| Protection Class |
IP67 |
| Operating Temperature |
-20 … +70 °C |
| Relative Humidity |
% 10 … % 90 |
| Material |
Shaft: Stainless Steel |
| CANOPEN SPECIFICATIONS |
–> |
| Communication Profile |
CiA 301 |
| Device Type |
CANopen, CiA DS406 |
| Node ID |
Between 1 and 127, configurable via LSS or SDO |
| Baud Rate |
10 kBit/s, 20 kBit/s, 50 kBit/s, 100 kBit/s, 125 kBit/s, 250 kBit/s, 500 kBit/s, 800 kBit/s, 1 Mbit/s |
| PDO Data Rate |
100 ms |
| Error Check |
Heartbeat, Emergency Message |
| PDO |
3 Tx PDO |
| PDO Modes |
Event/Time triggered, Synch/Asynch |
| SDO |
1 server |
| Position data |
Object Dictionary 0x6020 |
| Terminating Resistor |
Optional |
- Identifying multi-axis orientation in CNC machines used in component manufacturing
- Automatically determine the height of the scissor bearings used in hospitals
- Correct placement of multiple stabilizers for large vehicles such as cranes or air lifts
- Automatic doors or slots to move without limiting key
- Continue robotic movement even after a power failure
