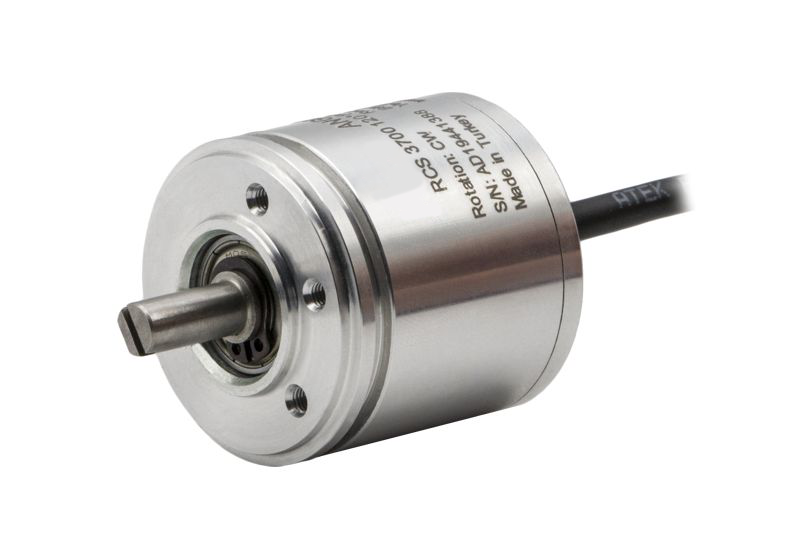

RCS 3700 Series || ATEK || Made in Türkiye

Click to enlarge
Atek

Non-contact measurement
0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
User-selectable angle values between 0-360°
12 bit resolution
6 mm shaft diameter
IP67 protection class

Contactless, high-accuracy magnetic principle angular measurement; durable against environmental conditions; connection with coupling; very long mechanical life


Datasheet
TR
EN
Measurement Range Resolution Output Body Diameter Shaft Diameter Protection Supply Voltage Datasheet
Different options between 0…360º 12 bit 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA 36,5mm 6mm IP 67 5 VDC or 24 VDC
  • Non-contact measurement
  • 12 bit resolution
  • User-selectable angle values between 0-360 °
  • 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
  • 6 mm shaft diameter
  • IP67 protection class
  • Long service life
  • Compact design
  • High accuracy
Brand

Atek
Measuring Typei

Magnetic, non-contact
Measuring Range

Can be produced in the desired range from 0 to 360 °
Resolution

12 bit
Linearity

± %0.5 FS
Repeatability

0.1°
Response Frequency

250 Hz
Output Signal

Ratiometric (Supply Voltage:5 VDC, Load:≥ 1KΩ)
0…10VDC (Supply Voltage:15…32 VDC, Load:≥ 1KΩ)
0…5VDC (Supply Voltage: 5VDC or 15…32 VDC, Load : ≥ 1KΩ)
4…20 mA (Supply Voltage:9…32 VDC, Load:0…250 Ω)
Reverse Polarity Protection

Reverse Polarity Protection
Operating Temperature

-25…+85 °C
Storage Temperature

-40…+85 °C
Electrical Connection

3 x 0,14 mm² shielded cable
Max Operational Speed

120 rpm
Protection Class

IP67
Material

Body: Aluminum
Shaft: Stainless steel
  • Robotic systems
  • Auto parts
  • Solar energy and photovoltaic systems
  • Automatic Guided Systems
  • Crane and lifting systems
  • Wind Power Plants
