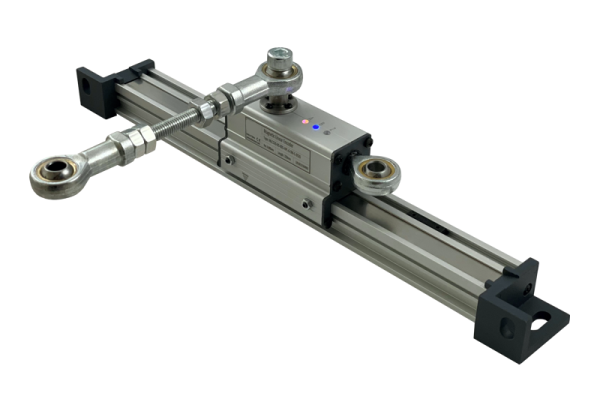

MLC 520 Series Linear Encoders || ATEK || Made in Türkiye
Magnetic, non-contact measurement
Incremental encoder output
Fixed Z reference point
Different measuring lengths between 50 … 2000 mm
Resolution options up to 5 µm
IP67 protection
LED indicator
Compatible with Delem, Cybelec and ESA
High accuracy measurement with contactless magnetic system; special design for press brake machines; movable reference point; high tolerance to shock and vibrations; high protection against harsh environments with dust, humidty and oil
| Measuring Range | Output | Protection | Magnetic Tape | Resolution | Datasheet |
|---|---|---|---|---|---|
| Up to 2000 mm |
Push-Pull, TTL RS422 Line Driver
|
IP 67 | B2 | 5µm, 10µm, 25µm,50 µm, 62.5µm |  |
- Magnetic non-contact measurement
- Different measuring lengths between 50 … 2000 mm
- Fixed Z reference points
- 5µm, 10µm, 25µm, 50µm, 62.5µm resolution options
- Incremental encoder output: A, B, Z, /A, /B, /Z
- Status LEDs
- Versatile mounting possibilities
- Shock and vibrations resistance
- Resistant to dust, oil and moisture
- Robust aluminum body
- IP67 protection
- Compatible with Delem, Cybelec and ESA
| Brand |
Atek |
|---|---|
| Measuring Length |
Different options between 50 … 2000 mm |
| Resolution |
5µm, 10µm, 25µm,50 µm, 62.5µm |
| Measuring Type |
Magnetic, non-contact |
| Output Type |
Push-Pull or TTL RS422 Line Driver |
| Magnetic Tape |
B2 |
| Output Signals |
A, /A, B, /B, Z, /Z |
| Current Consumption |
40 mA /channel max. |
| Supply Voltage |
PPL: 10..30 VDC or TTL: 5 VDC |
| Material |
Sensor: Anodized aluminum and delrin |
| Electrical Connection |
D-Sub 9 pin, 5 or 8 x 0,14 mm2 shielded cable |
| Maximum Speed |
3 m/s |
| Accuracy |
± 35 µm/m |
| Repeatability |
± 1 Pulse |
| Operating Temperature |
-25°C … +85°C |
| Protection |
IP67 |
- PVC Cutting Machines
- Machinery Industry
- Woodworking Machines
- Presses
- Textile Machinery
- Marble Machines
- Transfer Machines
- Saws
- Metal Processing Machines
- Turning, Milling
- Bohrwerk
- Dragline
- Automation and Robots
Benzer Ürünler
Non-contact inductive measurement Resolution up to 10 µm Reproducibility up to 5 µm Analog or digital output options IP67 protection class
Non-contact and inductive measuring principle; ability to measure at high speeds; 10 kHz refresh rate; infinite mechanical life; resistant to magnetic field; Very high sensitivity and resolution![](/wp-content/uploads/2023/07/pdf-1.png")
Datasheet| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| 100 - 1000 mm | Analog(Curent or Voltage), SSI, IO-Link, CANopen | IP 67 | ≤±0.025 %FS | |
Precise measurement with inductive principle Ability to calibrate by LED and buttons Superior linearity up to 0.1% 0.05% high resolution More than 100 million movement life Standard (without spring) or spring model options Version with cable or socket
Compact body and tie rod design on both sides; absolute precision measurement with inductive principle; endless mechanical life because it is non-contact; Adjustable measuring parameters with teach-in function
| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| 25 - 200 mm | Analog (0.1-10V, 10-01.V, 4-20mA, 20-4mA) | IP 40 | < ±0,1 %FS | |

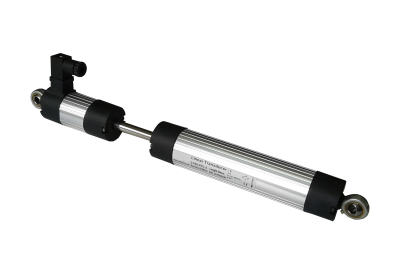

Precise potentiometric measurement Different measuring lengths from 10 mm to 300 mm Linearity up to 0.05% <0.01 mm high resolution Motion life of up to 100 million Articulated, Rod and Spring model options IP54 protection class
Precise position measurement; Easy installation with compact and small design; 3 different body options: Articulated, Rod and Spring; cost effective solution| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 10 mm and 300 mm | Analog (potentiometric) | IP 54 | ±%0,05 | |
Precise potentiometric measurement Different measuring lengths from 10 mm to 100 mm Superior linearity up to 0.04% High resolution: <0.01 mm Motion life of up to 50 million Cable or socket versions IP67 protection class
Precise position measurement with extra durable housing; easy mounting with ball joint at both sides; extra long life thanks to the special membrane that compensates the pressure on the shaft; extra protection against vibrations and corrosion
| Measuring Range | Output | Protection | Linearity | Datasheet |
|---|---|---|---|---|
| Different measuring lengths between 50 mm and 750 mm | Analog (potentiometric) | IP 67 | ±%0.04 | |

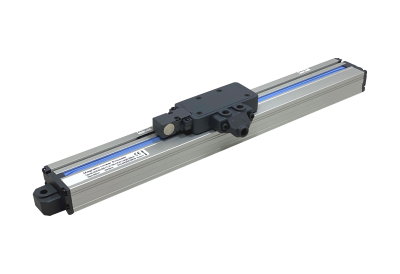

Magnetic measurement Incremental encoder output Contactless / non-friction system Measuring up to 20 meters Resolution options starting from 5µm IP67 protection class
