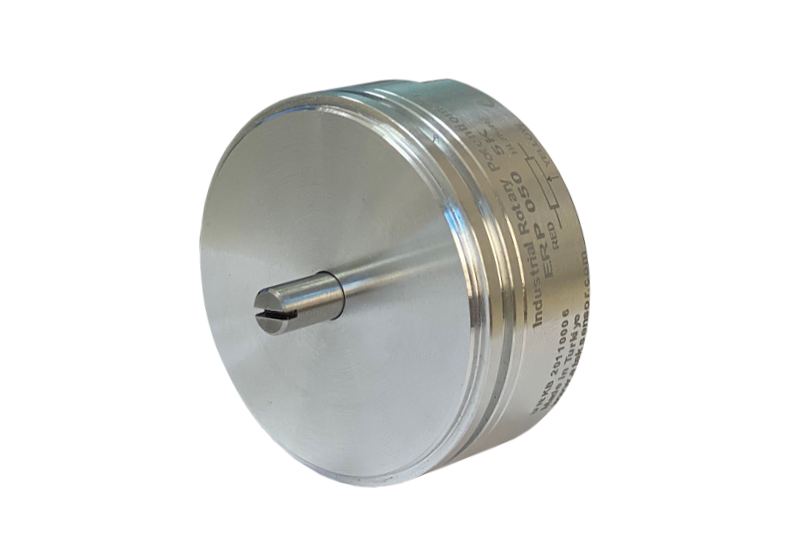

ERP 50 Series Rotary Potentiometer || ATEK || Made in Türkiye
60°, 90°, 345°, 350°, 355° electrical angle
6 mm or 6.34 mm shaft diameter
±0.5% linearity
1000 RPM operating speed
Long life up to 10 million movements
IP40 protection class
Rotary potentiometer with shaft; servo size 20; movement life up to 10 million ; infinite and continuous rotation; analog output options
| Measuring Range | Shaft Diameter | Body Diameter | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|---|
| 60°, 90°, 345°, 350°, 355° |
6 mm or 6,34 mm
|
50.8 mm
|
Potentiometric, 0-10V, 4-20 mA, 0-20 mA
|
IP40
|
±0.5% |  |
- 60°, 90°, 345°, 350°, 355° electrical angle
- 6 mm or 6,34 mm shaft diameter
- 50.8 mm body diameter
- Potentiometric, 0-10V, 4-20mA or 0-20mA output
- High linearity up to ±0.5%
- Long life up to 10 million movements
- IP40 protection class
- No mechanical rotation limitation
| Brand |
Atek |
|---|---|
| Electrical Angle |
60°, 90°, 345°, 350°, 355° |
| Resistance Values |
1K, 2K, 5K, 10K |
| Resistance Tolerance |
±%2 0 |
| Repeatability |
0.1° max. |
| Independent Linearity |
±% 0.5 |
| Output Type |
Potansiyometrik, 0-10V, 4-20 mA veya 0-20 mA |
| Supply Voltage |
For potentiometric output: 42V max. |
| Recommended Wiper Current |
100 µA max. |
| Minimum Life (electrical) |
10 million movements |
| Electrical Connection |
3×0,102 mm2 PVC cable (standard 1m, optional others) |
| Mounting |
With 3 clamps |
| Size |
Servo size 20 |
| Torque |
0.5 Ncm max. |
| Operating Temperature |
-25°C … +75°C |
| Protection Class |
IP40 |
- Textile machinery
- Automatic door control systems
- Automotive
- All kinds of control and mesurement applications
