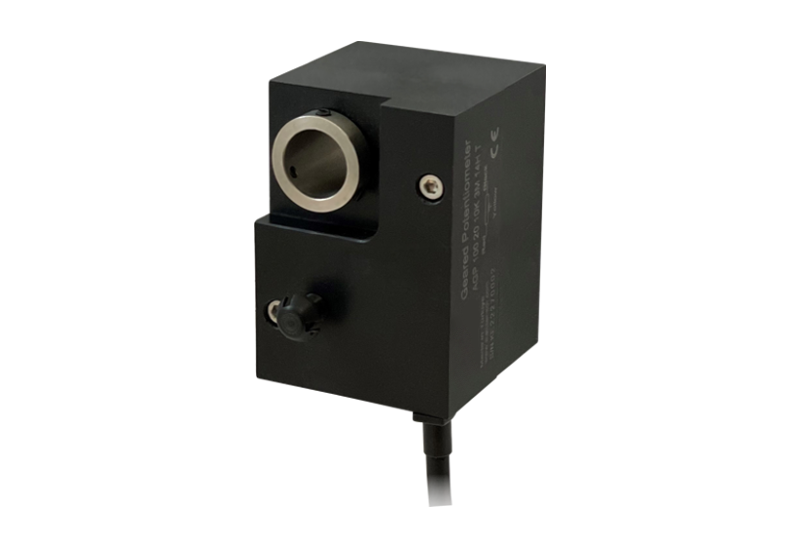

AGP 100 Series Geared Potentiometer || ATEK || Made in Türkiye
10 or 20 turn options (optional others)
14 mm hollow diameter
Potentiometric output
High linearity up to ±0.25%
1 million revolution service life
IP52 protection
Geared rotary potentiometer; movement life up to 1 million; potentiometric output
| Number Of Turns | Hollow Diameter | Body Diameter | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|---|
| 10 or 20 turns |
14 mm
|
45 mm
|
Potentiometric
|
IP52
|
±%0.25 |  |
- 10 or 20 turn options (optional others)
- 14 mm hollow diameter
- Potentiometric output
- High linearity up to ±0.25%
- 1 million revolution service life
- IP52 protection
- Compact structure, easy installation
| Brand |
Atek |
|---|---|
| Number of Turns |
10, 20 turns (optional others) |
| Linearity |
±%0.25 |
| Output Type |
Potentiometric |
| Resistance Values |
5K, 10K |
| Resistance Tolerance |
±% 20 |
| Supply Voltage |
42V max |
| Power Rating |
2W @ 40°C |
| Electrical Connection |
3×0,14 mm PVC cable |
| Shaft Material |
303 stainless steel |
| Housing Material |
Delrin |
| Speed |
≤300 rpm |
| Service Life |
1000000 revolutions |
| Ambient Temperature |
0 … +80°C |
| Protection Class |
IP52 |
- Paper processing machines,
- Textile machinery,
- Slewing systems and lifting gear of crane and excavator systems
- Actuators in power plants and chemical plants
