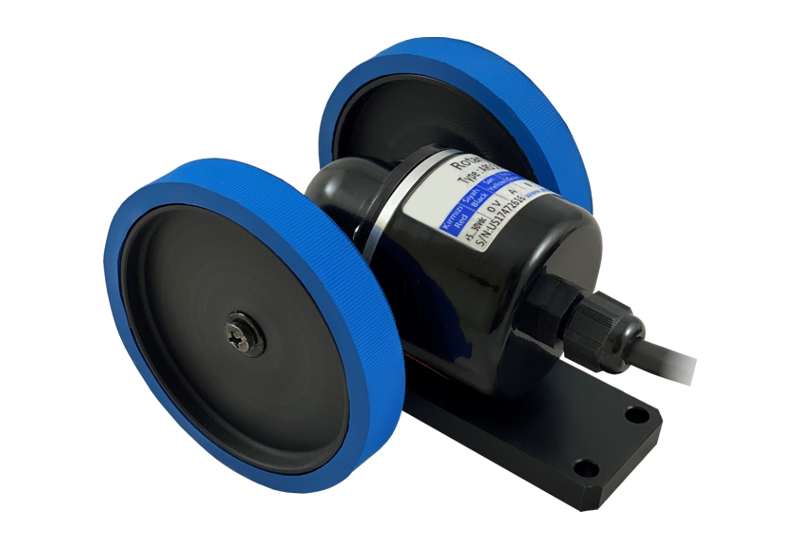

ATE 20 Series Double Wheel Type Incremental Encoder || ATEK || Made in Türkiye
Suitable for measuring the length and speed of the target moving with its wheeled structure
Incrementel measurement with magnetic principle
250 mm or 256 mm wheel circumference
3000 RPM operating speed
IP54 protection class
Suitable for measuring the length and speed of the target moving with its wheeled structure, incremental rotary encoder with high accuracy and long service life
| Resolution | Wheel Circumference | Output | Protection | Datasheet |
|---|---|---|---|---|
| 0,05 mm/pulse, 0,1mm/pulse, 0,25mm/pulse, 0,5mm/pulse, 1mm/pulse, 5mm/pulse, 10mm/pulse, 25mm/pulse, 250mm/pulse | 250 mm or 256 mm |
Push-Pull, TTL Line Driver, Open Collector
|
IP 54 |  |
- Suitable for measuring the length and speed of the target moving with its wheeled structure
- Output waveform according to measurement distance, suitable for international measurement units
- 250 or 256 mm wheel circumference
- 3000 RPM operating speed
- 300 kHz response frequency
- High accuracy
- Robust structure, long service life
- Easy mounting
- IP54 protection class
| Brand |
Atek |
|---|---|
| ELECTRICAL FEATURES |
–> |
| Resolution |
For 256 mm wheel circumference: |
| Electrical Interface |
PP: 10…30 VDC supply / 10…30 VDC PP output |
| Output Signals |
A, /A, B, /B, Z, /Z |
| Response Frequency |
300 KHz |
| Current consumption |
50 mA nominal |
| Output current |
100 mA maks. (per channel) |
| Electrical Connection |
5 or 8×0,14 mm2 shielded cable |
| MECHANICAL SPECIFICATIONS |
–> |
| Wheel Circumference |
250 or 256 mm |
| Starting Torque |
Defend on coefficient of friction |
| Operating Speed |
3000 RPM maks. |
| Operating Temp. |
-25 … +85 °C |
| Ambient Humudity |
% 35 … % 85 RH |
| Protection Class |
IP54 |
- Various packing machines
- Sheet manufacturing
- Textile machinery and general industrial machinery
