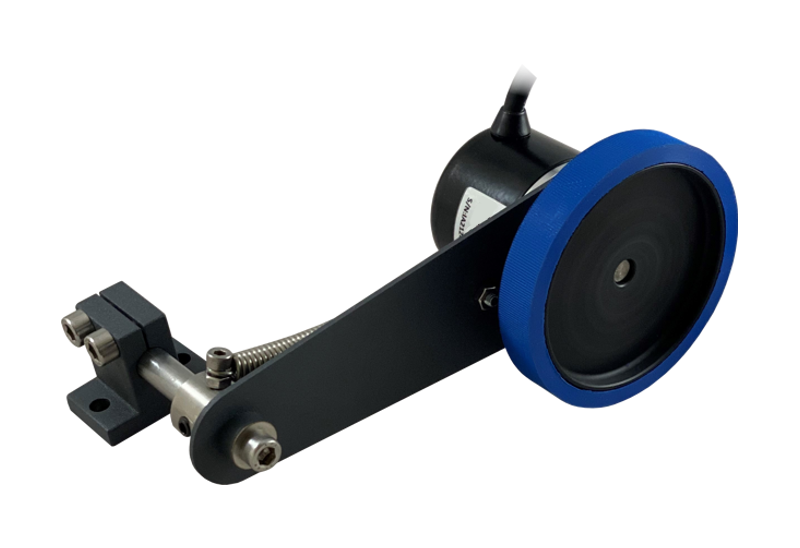

ATE 10 Series Single Wheel Spring Type Incremental Encoder || ATEK || Made in Türkiye
Suitable for measuring the length and speed of the target moving with its wheeled structure
Wide variety of mounting possibilities thanks to the spring lever
250 or 256 mm wheel circumference
3000 RPM operating speed
IP54 protection class
Suitable for measuring the length and speed of the target moving with its wheeled structure; wide variety of mounting possibilities thanks to the spring lever
| Resolution | Wheel Circumference | Wheel Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| 0,05 mm/pulse, 0,1mm/pulse, 0,25mm/pulse, 0,5mm/pulse, 1mm/pulse, 5mm/pulse, 10mm/pulse, 25mm/pulse, 250mm/pulse | 250 mm veya 256 mm | 82 mm |
Push-Pull, TTL Line Driver, Open Collector
|
IP 54 |  |
- Suitable for measuring the length and speed of the target moving with its wheeled structure
- Output waveform according to measurement distance, suitable for international measurement units
- Spring system to compensate for uneven parts of the measuring surface
- Wide variety of mounting possibilities thanks to the spring lever
- 250 or 256 mm wheel circumference (82 mm wheel diameter)
- 3000 RPM operating speed
- 300 kHz response frequency
- High accuracy
- Robust structure, long service life
- Easy mounting
- IP54 protection class
| Brand |
Atek |
|---|---|
| ELECTRICAL FEATURES |
–> |
| Resolution |
For 256 mm wheel circumference: |
| Electrical Interface |
PP: 10…30 VDC supply / 10…30 VDC PP output |
| Output Signals |
A, /A, B, /B, Z, /Z |
| Response Frequency |
300 KHz |
| Current consumption |
50 mA nominal |
| Output current |
100 mA maks. (per channel) |
| Electrical Connection |
5 or 8×0,14 mm2 shielded cable |
| MECHANICAL SPECIFICATIONS |
–> |
| Wheel Circumference |
250 veya 256 mm |
| Wheel Diameter |
82 mm |
| Starting Torque |
Defend on coefficient of friction |
| Operating Speed |
3000 RPM maks. |
| Operating Temp. |
-25 … +85 °C |
| Ambient Humudity |
% 35 … % 85 RH |
| Protection Class |
IP54 |
