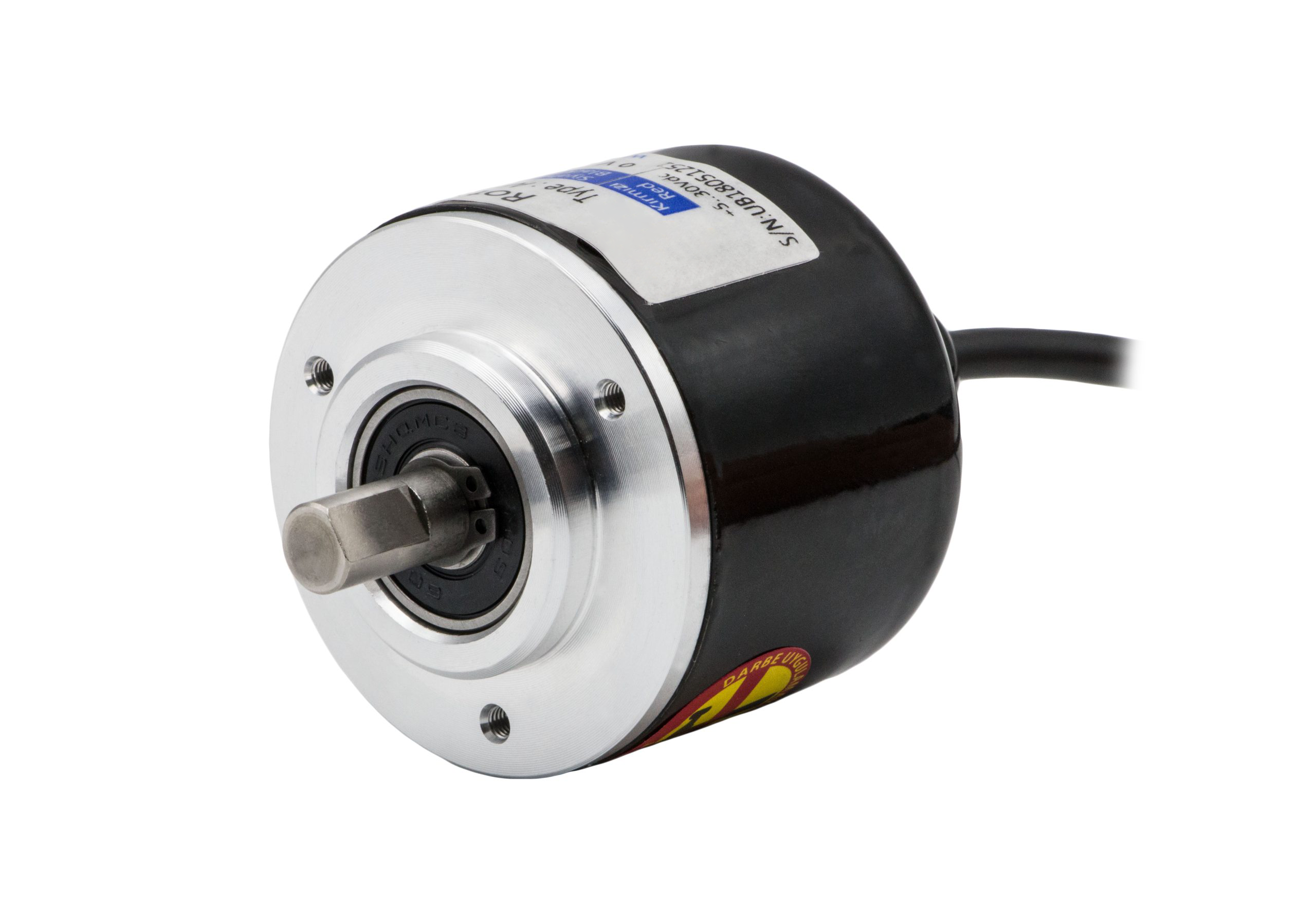

ARS S 50 Shaft || ATEK || Made in Türkiye
Incremental measurement with magnetic principle
50 mm body diameter
6, 8 or 10 mm shaft options
Resolution options from 1 to 1024 pulses
Durable up to 3000 RPM
IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 50 mm body diameter; different shaft options
Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
---|---|---|---|---|---|---|
Different options from 1 to 1024 pulses | 6, 8 or 10 mm | 50 mm | Clamping |
Push-Pull, TTL Line Driver, Open Collector
|
IP 54 | ![]() |
- Magnetic principle, incremental, angular measurement
- 50 mm body diameter
- Clamping flange
- S16 (M16, 8pin) socket or standard cable options
- 6, 8 or 10 mm shaft options
- Resistant to vibration and shock due to robust aluminum body
- Easy mounting
- Resolution options from 1 to 1024 pulses
- Durable up to 3000 RPM
- IP54 protection class
-We highly recommend using our Process Control Devices to precisely display measured values on your Rotary Encoder for your automation solutions.
Brand |
Atek |
---|---|
Measuring Type |
Magnetic |
Resolution |
Different options from 1 to 1024 pulses |
Max Operating Speed |
3000 RPM |
Output Frequency |
300 kHz |
Supply Voltage |
10 … 30 VDC or 5 VDC |
Current Consumption |
50 mA nominal |
Output Type |
Push pull, TTL Line Driver, Open Collector |
Output Signals |
A, /A, B, /B, Z, /Z |
Input Current |
100 mA max (per channel) |
Operating Temperature |
-25…+85 °C |
Storage Temperature |
-40…+85 °C |
Electrical Connection |
5 or 8 x 0,14 mm2 shielded cable |
Body Diameter |
50 mm |
Shaft Diameters |
6, 8 or 10 mm |
Protection Class |
IP54 |
Material |
Body: Aluminum |
- Servo-motors
- In the feedback task of measuring linear movements
- Elevator industry
- Packaging and Production lines
- Machinery Industry
- Textile Machinery
- Woodworking Machines
- Turning, Milling
- Automation and Robots
