Programmable Draw Wire Sensors

Different measuring lengths up to 1200mm
High resolution
±%0.25 FS linearity
2 m/s maxium speed
Analog or CANopen output
Programmable analog output
Small structure
IP67 protection class

Magnetic measurement; high resolution; robust stainless steel wire; small aluminum body; resistant to shocks and vibrations

Datasheet

Stroke (measuring) Lengths	Resolution	Output Type	Protection	Linearity	Datasheet
Different measuring lengths up to 1200mm	CANopen: 6µm Analog: 16 bit	Analog:4-20 mA, 0-10 V, 0-5 V, 0.5-4.5 V  CANopen	IP67	±%0,25 FS

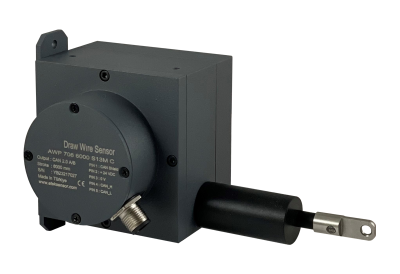

Measuring length up to 6000 mm
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output (Redundant output option)
Programmable analog output option
IP67 protection class

Magnetic absolute measurement; programmable analog output; redundant output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations

Datasheet

Stroke (measuring) Lengths	Resolution	Output Type	Protection	Linearity	Datasheet
0…6000 mm	0.05mm	Analog or CANopen (Optional Redundant)	IP67	±%0,5 FS

Measuring length up to 15000 mm
0.05 mm high resolution
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
IP54 (Optional IP67) protection class

Magnetic absolute measurement; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations

Datasheet

Stroke (measuring) Lengths	Resolution	Output Type	Protection	Linearity	Datasheet
0…15000 mm	0.05mm	Analog or CANopen	IP54 (Optional IP67)	±%0,5 FS

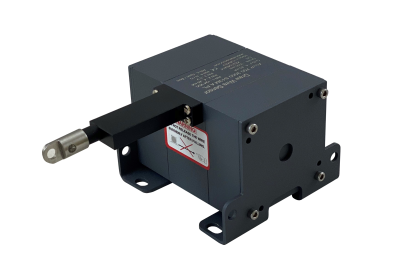

0…3000 mm stroke (measuring) length±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
IP67 protection class

Magnetic absolute measurement; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations

Datasheet

Stroke (measuring) Lengths	Resolution	Output Type	Protection	Linearity	Datasheet
0…3000 mm	0.05 mm	Analog or CANopen	IP67	±%0,5 FS

0…6000 mm stroke (measuring) length
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
IP67 protection class

Magnetic absolute measurement; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations

Datasheet

Stroke (measuring) Lengths	Resolution	Output Type	Protection	Linearity	Datasheet
0…6000 mm	0.05 mm	Analog or CANopen	IP67	±%0,5 FS

Different stroke (measuring) lengths between 14000 mm and 22000 mm
±%0,5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
Standard IP53 (optional IP67)

Magnetic absolute measurement; suitable for long distances; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations

Datasheet

Stroke (measuring) Lengths	Resolution	Output	Protection	Linearity	Datasheet
Different measuring lengths between 14000 mm and 22000 mm	0.05mm	Analog or CANopen	Standard IP53 (optional IP67)	±%0,5 FS

Measuring length up to 40.000 mm
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
IP67 protection class

Magnetic absolute measurement; suitable for long distances; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations

Datasheet

Stroke (measuring) Lengths	Resolution	Output Type	Protection	Linearity	Datasheet
0…40000 mm	0.05mm	Analog or CANopen	IP67	±%0,5 FS

Different measuring lengths up to 5000 mm
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
IP67 protection class

Magnetic absolute measurement; suitable for long distances; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations

Datasheet

Stroke (measuring) Lengths	Resolution	Output Type	Protection	Linearity	Datasheet
Different measuring lengths up to 5000 mm	0.05mm	Analog or CANopen	IP67	±%0,5 FS

Different measuring lengths up to 8000 mm (optional other strokes)
±%0.5 FS linearity
1 m/s maxium speed
Analog or CANopen output
Programmable analog output option
IP67 protection class

Magnetic absolute measurement; suitable for long distances; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations

Datasheet

Stroke (measuring) Lengths	Resolution	Output	Protection	Linearity	Datasheet
Different measuring lengths up to 8000 mm (optional other strokes)	0.05mm	Analog or CANopen	IP67	±%0,5 FS
