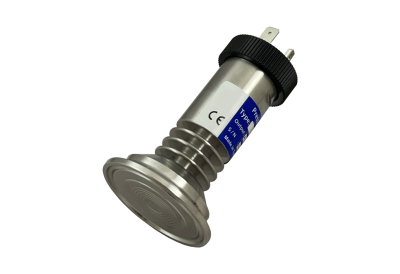

BT10 / BT20 / BT05 – 214 Flush Pressure Transmitter for High Temperature and Standard Applications || ATEK ||
-1…0~0.1bar…600bar pressure range
Suitable for sanitary applications
±0.5%FS linearity
4-20 mA, 0-10V, 0-5V, 0.5-4.5V output
IP65 protection class
With cooling fan options, excellent performance for high temperature medium applications
Flush diaphragm; stainless steel body; high sensitivity; EMC and reverse polarity protection; for standard applications; high performance in high temperature applications up to 250°C with the option of cooling fan
| Pressure Range | Output | Operating Temperature | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|
| -1…0~0.1bar…600bar | 4-20mA, 0-10V, 0-5V, 0.5-4.5V | -40～85°C (without cooling fan) -40～150°C (with 3 cooling fans) -40°C～250°C (with 5 cooling fans) |
IP 65 | ±0.5%FS |  |
- 316L flush diaphragm structure
- Sanitary, anti-fouling
- Wide pressure range, can measure absolute pressure, gauge pressure and sealed reference pressure
- Good seal, long-term stable work
- With cooling fan option, excellent performance for high temperature medium application
- Optional output signal, can be customized
| Brand |
Atek |
|---|---|
| Pressure range |
-1bar…0~0.1bar…600bar |
| Pressure reference |
Gauge pressure, Absolute pressure, Sealed gauge pressure |
| Supply & output |
300 % F.S. (≤0.7bar), 200%F.S. (≤100bar) |
| Accuracy |
4～20mA (12～30VDC) |
| Hysteresis ve repeatability |
% 0.5FS |
| Response time |
% 0.1FS |
| Sıcaklık kayması | |
| Tepki süresi | |
| Service life |
≥10×106 pressure cycles |
| Operating temp. |
-20°C … +85°C |
| Medium temp. |
-40～85°C (without cooling fans) |
| Storage temp. |
-40°C … +85°C |
| Insulation resistance |
≥100MΩ/250VDC |
| Vibration performence |
Sinus curvei: 20g, 25Hz～2kHz; IEC 60068-2-6 |
| Protection |
P65 |
| Medium compatibility |
All kinds of media compatible with 316L |
- Occasion with easy block, high sanitary requirement and convenient cleaning such as medicine and health care, food, liquor-making, dairy and drinks
- Environmental protection chemical coating, polyurethane equipment, paint detection system etc..
Benzer Ürünler
Ceramic diaphragm Stainless steel body Options from 0 ... 1 bar to 0 ... 400 bar ±0.5% FS sensitivity Different analog output options IP65, IP67 or IP68 protection class Economical and convenient solution Datashee
Pressure transmitter with ceramic diaphragm; economical and durable solution; relative or absolute measurement option
| Measuring Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| 0 ... 1 to 0 ... 400 bar | 4-20 mA, 0-10 VDC, 0.5-4.5 VDC ratiometric, 0-5 VDC, 1-6 VDC | IP65, IP67, IP68 | ±%0.5 FS | |
Piezoresistive working principle Stainless steel housing (1.4305) Optional 316L or titanium housing Different models between 100 mBar and 600 Bar Analog 4-20mA / 0-10V and CANopen output options ±0.5% F.S or ± 0.3% F.S accuracy IP65 or IP67 protection class Compact construction
Stainless steel body; high sensitivity; EMC and reverse polarization protected; small and compact design| Measuring Range | Output | Protection | Accuracy | Body Diameter | Datasheet |
|---|---|---|---|---|---|
| Different models from 0...100mbar to 0...600bar Different vacuum models from 0...-100mbar to 0...-1bar | 4-20 mA, 0-10 VDC, 0-20 mA, 1-6 VDC, 0-5 VDC, Ratiometric or CANopen | IP65 or IP67 | ±%0,5 F.S (ceramic), ±%0,3 F.S (silicon) | 22mm | |
Piezoresistive working principle Stainless steel housing (1.4305) Optional 316L or titanium housing Different models between 100 mBar and 600 Bar Analog 4-20mA / 0-10V and so on different outputs ±0.3% F.S accuracy IP65 or IP67 protection class Compact construction
Stainless steel body; high sensitivity; EMC and reverse polarization protected; small and compact design
| Measuring Range | Output | Protection | Accuracy | Body Diameter | Datasheet |
|---|---|---|---|---|---|
| Different models from 0…100mbar to 0…600bar Different vacuum models from 0…-100mbar to 0…-1bar | 4-20 mA, 0-10 VDC, 0-20 mA, 1-6 VDC, 0-5 VDC, Ratiometric etc. | IP65 or IP67 | ±%0,3 F.S | 26mm | |
Thin film steel diaphragm, flush membrane Stainless steel body Options from -0.5 ... 0.5 bar to 0 ... 100 bar ±0.5% FS sensitivity Different analog output options IP65, IP67 or IP68 protection class
Pressure transmitter with steel diaphragm and flush membrane; one-piece welded sealing body for high durability and resistance to ambient conditions; very small compact design; special smooth and flat flush membrane
| Measuring Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| -0.5 ... 0.5 to 0 ... 100 bar | 4-20 mA, 0-10 VDC, 0-5 VDC, 1-6 VDC, 0.5-4.5 VDC ratiometric | IP65, IP67, IP68 | ±%0.5 FS | |
Thin film steel diaphragm Stainless steel body Options from 0 ... 0.2 bar to 0 ... 600 bar ±0.5% FS, ± 0.15% FS, ± 0.1% FS accuracy options CANopen output IP67 protection class
Pressure transmitter with steel diaphragm and temperature measurement in one device; CANopen output; small and durable design; very high accuracy value options
| Measuring Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| 0 ... 0.2 to 0 ... 600 bar | CANopen | IP67 | ±0.5% FS, ±0.15% FS,±0.1% FS | |
Pressure Switch with Indicator Options from 0 ... 2.5 bar to 0 ... 600 bar ±0.5% FS accuracy Analog output options 2 PNP transistor outputs IP67 protection class
Pressure transmitter and switch with indicator in one device; thin film steel diaphragm; Programmable from mobile phone with NFC; current and voltage output option in one device; triple protection against extreme pressures; 2 PNP transistor outputs
| Measuring Range | Output | Protection | Accuracy | Datasheet |
|---|---|---|---|---|
| 0 ... 2.5 to 0 ... 600 bar | 4-20 mA, 0-10 VDC, 0-5 VDC, 1-6 VDC, switchable mA or V, PNP transistor | IP67 | ±0.5% FS | |
