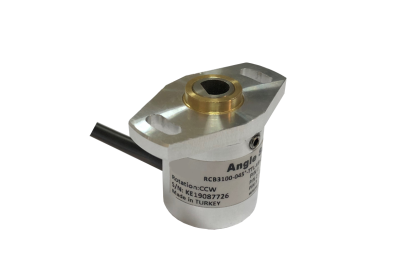

RCB 3100 Series Return Spring System Angle Sensor || ATEK || Made in Türkiye
Back to products
RSM 2800 Series || NOVOTECHNIK || Made in Germany

RSC 2800 Series || NOVOTECHNIK || Made in Germany

Click to enlarge
Novotechnic

Non-contact angular measurement with magnetic principle
Electrical measuring angle 0 … 360 °
6 mm shaft diameter
Analog, SSI, SPI or incremental output options
Single or redundant output options
Analog:12 bit, SSI:12 bit, SPI:14 bit, Incremental:128, 256, 512, 1024 pulse resolution
IP54, IP65 or IP67 protection class
Datashee

Non-contact, high precision, rotary measurement with magnetic principle; integrated 6 mm shaft; very long life thanks to the non-contact measuring principle


Datasheet
Measurement Range Resolution Linearity Output Protection Supply Voltage Datasheet
360° electrical measurement angle
12 bit
%±0.5
Analog, SSI, SPI, Incremental

 IP54, IP65, IP67 5 VDC or 24 VDC
  • Non-contact, precise, angular measurement with magnetic principle
  • Easy installation thanks to integrated flange
  • Very long life thanks to the non-contact measuring principle: more than 50 million movements
  • Electrical measuring angle from 10 ° to 30 ° to 0 ° to 360 °
  • Different output options
  • Analog: 4..20 mA, 0..10 VDC, ratiometric 5..95% or 10..90% VDC: 12 bit resolution
  • SSI: 12 bit resolution
  • SPI: 14 bit resolution
  • Incremental: 128, 256, 512, 1024 pulses (512, 1024, 2048, 4096 quadrature pulses)
  • Different supply voltage options: 5 or 24 VDC
  • High linearity value: 0.5%
  • Superior German technology
Brand

Novotechnic
ELECTRICAL FEATURES

–>
Measuring Type

Magnetic, non-contact
Measuring Range

0…360°
Output Options

SPI, SSI, incremental, 4-20mA, 0.1-10V, ratiometric
Resolution

Analog: 12 bit
SSI: 12 bit
SPI: 14 bit
Incremental: 128, 256, 512, 1024 ppr
Repeatability

Analog: ≤0.1°
SPI: ≤0.1°
SSI: ≤0.2°
Incremental: ≤0.2
Supply Voltage

5 VDC or 24 VDC
Current Consumption

Analog: 15 mA/channel
SSI: 27 mA/channel (@5VDC), 10 mA/channel (@24VDC)
Incremental: 20 mA/channel (@5VDC), 10 mA/channel (@24VDC)
SPI: 15 mA/channel
Reverse Polarity Protection for Supply

Yes
Short Circuit Protection

Yes
Electrical Connection

4 x 0.5 mm², AWG 20, TPE insulated, shielded cable (voltage / current)
4 x 2 x 0.25 mm², AWG 24, TPE insulated, shielded cable(SSI / Incremental)
5 x 0.14 mm², AWG 26, PUR insulated, shielded cable (SPI)
Connector M12x1, 4-pin / 8-pin on cable L = 0,15 m
MECHANICAL FEATURES

–>
Protection Class

IP54 / IP65 / IP67
Torque

0.15 (IP54) / 0.5 (IP65) / 1.0 (IP67) Ncm
Maximum Operational Speed

800 min -¹
Permitted Shaft Load

20 N
Life

>50×10⁶ movements
Operating Temperature

-40 … +85 °C
  • Press Machines
  • Textile Machinery
  • Marble Machines
  • Transfer Machines
  • Hydraulic Machines
  • Robot and Automation solutions
DATASHEET
PDF
User Manual
Analog
Digital
SPI
CAD / STEP
ZIP
