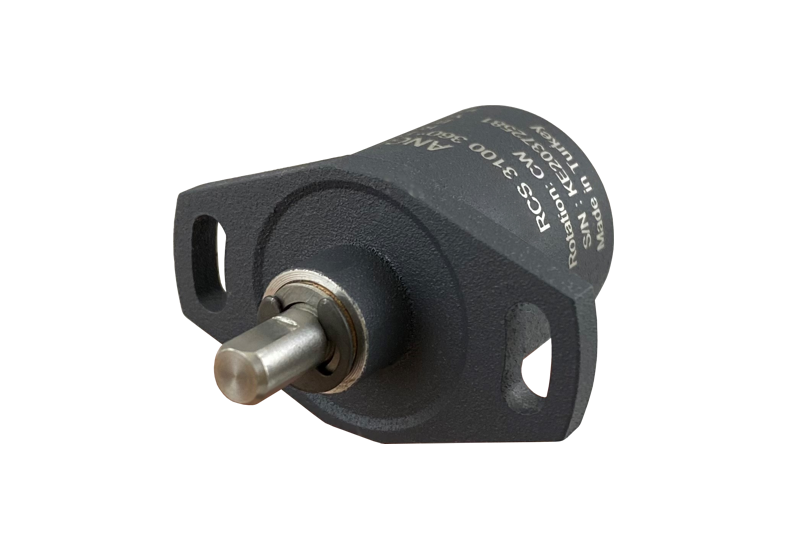

RCS 3100 Series Angle Sensor || ATEK || Made in Türkiye
Non-contact measurement
0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA output options
User-selectable angle values between 0-360°
12 bit resolution
6 mm shaft diameter
IP54 protection class
Contactless, high-accuracy magnetic principle angular measurement; durable against harsh environmental conditions; connection with coupling; very long mechanical life
| Measurement Range | Resolution | Output | Shaft Diameter | Protection | Supply Voltage | Datasheet |
|---|---|---|---|---|---|---|
| Different options between 0…360º | 12 bit | 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA | 6mm | IP 54 | 5 VDC or 24 VDC |  |
- Non-contact measurement
- 12 bit resolution
- User-selectable angle values between 0-360 °
- 0.5-4.5V Ratiometric, 0-10V, 0-5V, 4-20mA ratiometric output options
- 6 mm shaft diameter
- IP54 protection class
- Long service life
- Compact design
- High accuracy
| Brand |
Atek |
|---|---|
| Measuring Typei |
Magnetic, non-contact |
| Measuring Range |
Can be produced in the desired range from 0 to 360 ° |
| Resolution |
12 bit |
| Linearity |
± %0.5 FS |
| Repeatability |
0.1° |
| Response Frequency |
250 Hz |
| Output Signal |
Ratiometric (Supply Voltage:5 VDC, Load:≥ 1KΩ) |
| Current Consumption |
30 mA maks |
| Reverse Polarity Protection |
Yes, only supply |
| Operating Temperature |
-25…+85 °C |
| Storage Temperature |
-40…+85 °C |
| Electrical Connection |
3 x 0,14 mm² shielded cable |
| Max Operational Speed |
120 rpm |
| Protection Class |
IP54 |
| Material |
Body: Aluminum |
- Robotic systems
- Auto parts
- Solar energy and photovoltaic systems
- Automatic Guided Systems
- Crane and lifting systems
- Wind Power Plants
Benzer Ürünler
Incremental measurement with magnetic principle 37 mm body diameter Different hollow shaft options from 4 to 10 mm Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 37 mm body diameter; different end hollow shaft options
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 4, 5, 6, 8 or 10 mm | 37 mm | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Incremental measurement with optical principle 50 mm body diameter 6, 8 or 10 mm shaft options Resolution options from 60 to 20000 pulses Durable up to 6000 RPM IP54 protection class
Incremental and extremely high precision measurement with optical measuring principle; 50 mm body diameter; different shaft options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 60 to 20000 pulses | 6, 8 or 10 mm | 50 mm | Clamping | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Incremental measurement with magnetic principle 58 mm body diameter 6, 8, 10, 12 or 14 mm shaft options Resolution options from 1 to 1024 pulses Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 58 mm body diameter; different shaft options; different flange options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1 to 1024 pulses | 6, 8, 10, 12 or 14 mm | 58 mm | Clamping, Synchro, Tacho and Square | Push-Pull, TTL Line Driver, Open Collector | IP 54 | |
Absolute measurement with magnetic principle 58 mm body diameter 6, 8,10, 12 or 14 mm shaft options 12 bit angular resolution SSI interface Durable up to 3000 RPM IP54 protection class
Extremely resistant to harsh environmental conditions with magnetic mesauring principle; absolute precision measurement; 58 mm body diameter; different shaft options
| Resolution | Shaft Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| 12 bit | 6, 8, 10, 12 or 14 mm | 58 mm | Clamping, Synchro, Tacho and Square | SSI 13 bit (12 bit data + 1 stop bit) | IP 54 | |
Incremental measurement with optical principle 58 mm body diameter 10 , 12, 14 or 15 mm hollow shaft options Resolution options from 1024 to 20000 pulses Durable up to 6000 RPM IP54 protection class
Incremental and extremely high precision measurement with optical measuring principle; 58 mm body diameter; hollow shaft ; different flange options| Resolution | Hole Diameter | Body Diameter | Flange Type | Output | Protection | Datasheet |
|---|---|---|---|---|---|---|
| Different options from 1024 to 20000 pulses | 10, 12, 14 or 15 mm | 58 mm | Z type or Circular |
Push-Pull, TTL Line Driver, Open Collector |
IP 54 | |

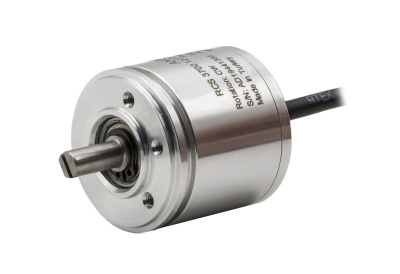

Absolute measurement with magnetic principle 37 mm body diameter CANopen or analog output Shaft, semi hollow shaft and sleeved options 14 bit angular resolution 3000 RPM operating speed IP67 protection class
Absolute measurement with magnetic principle; 37 mm body diameter; CANopen or analog output; compact design
| Resolution | Shaft Diameter | Body Diameter | Output | Protection | Datasheet |
|---|---|---|---|---|---|
| 14 Bit | 6, 8 or 10 mm | 37 mm | CANopen or Analog | IP 67 | |
