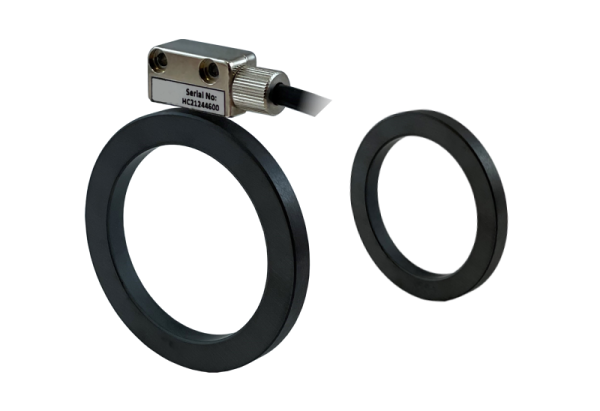

RB Series Magnetic Ring || ATEK || Made in Türkiye
Suitable for MLS 110/120/130/210 series
Different resolution options up to 36000 pulses with Atek MLS series reader sensors
Magnetic non-contact incremental measurement
1mm, 2mm or 5mm pitch
Hollow shaft up to 54mm
IP67 protection
Incremental magnetic ring made of sintered hard ferrite material suitable for use with magnetic reader sensors MLS 110/120/130/210 series
| Number Of Pole | Pitch | Material | Accuracy | Datasheet |
|---|---|---|---|---|
| 36, 46, 50, 64, 72, 100 or 128 | 1 / 2 / 5 mm | Sintered hard ferrite | 0.1° / 0.01° (depending on ring diameter) |
• Magnetic non-contact incremental measurement technology
• Different resolution options up to 36000 pulses with Atek MLS series reader sensors
• 1mm, 2mm or 5mm pitch
• Hollow shaft up to 54mm
• High accuracy
• Hard ferrite material
• Robust structure
• Resistant to dust, oil and moisture
• IP67 protection
| Brand |
Atek |
|---|---|
| Number of pole |
36, 46, 50, 64, 72, 100 or 128 |
| Pitch |
1 / 2 / 5 mm |
| Accuracy |
0.1° / 0.01° (depending on material diameter) |
| Material |
Sintered ferrite |
Suitable for MLS 110/120/130/210 series magnetic reader sensors, Motor commutation Speed measurement Angle measurements
