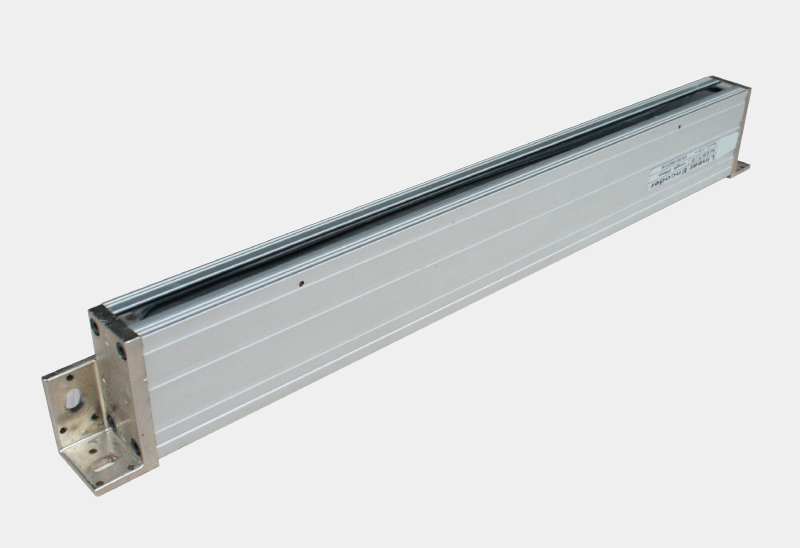

PS 310 Series Profile || ATEK || Made in Türkiye
Suitable for MLS 110/120/130/210 series
Extra easy mounting
Double seal protection
Sturdy aluminum housing
Unlimited mechanical life
IP67 protection class
Magnetic reader sensors are the bearing-type profile designed for MLS 110/120/130/210 series; extra protection against chips and burrs with double seal protection; B series integrated in 5mm magnetic tape profile; contactless, frictionless measurement
| Body Material | Protection Class | Reader Sensor-Tape Operating Distance | Datasheet |
|---|---|---|---|
| Aluminum | IP 67 | 1,5 mm (Max 2,5 mm) |  |
- MLS 110/120/130/210 Series magnetic profiled tape integrated profile
- Extra easy installation possibility
- Fully shielded against chips and burrs with double seal protection system
- Robust aluminum body for complete protection
- Insensitive to external factors such as moisture, oil and dust
- Unlimited mechanical life due to contactless and frictionless operation
| Brand |
Atek |
|---|---|
| Reader Sensor-Tape Operating Distance |
1,5 mm (max 2,5 mm) |
| Magnetic Tape Type |
B5 (Optional B2) |
| Life |
Infinite (Contactless) |
| Body Material |
Aluminum Closed Profile |
| Protection Class |
IP67 |
| Operating Temperature |
-25°C … +85°C |
- Used with MLS 110/120/130/210 series reader sensors
