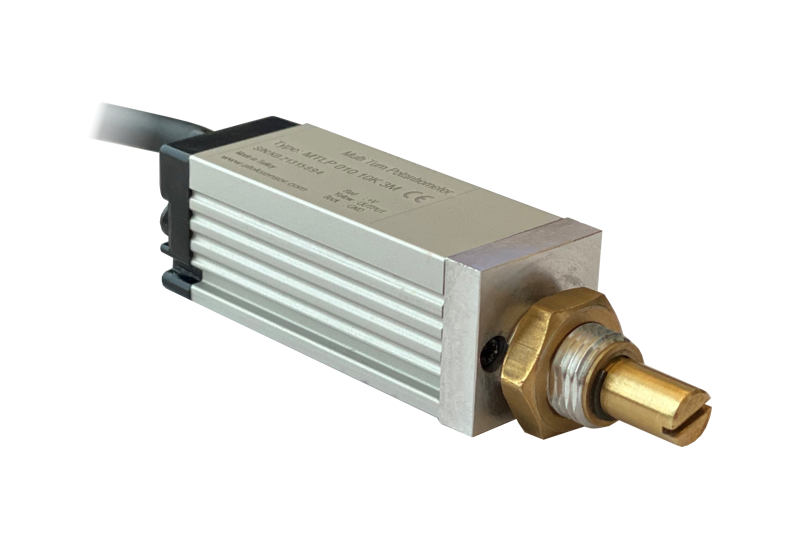

MTLP Series Multiturn Potentiometer || ATEK || Made in Türkiye
10, 25 or 50 turns option
6 mm shaft diameter
Potentiometric output
High linearity
Long service life up to 10 million turns
IP40 protection
Measurement of rotary movements with screw pitch potentiometric calculation on linear axis; very long life; precise and accurate measurement
| Number Of Turns | Shaft Diameter | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|
| 10, 25 or 50 turns |
6 mm
|
Poteniometric
|
IP40
|
±%1.5, ±%0.5, ±%0.4 |  |
- 10, 25 or 50 turns option
- 6 mm shaft diameter
- Potentiometric output
- High linearity
- Long service life up to 10 million turns
- IP40 protection
| Brand |
Atek |
|---|---|
| Number of turns |
10, 25, 50 turns |
| Linearity |
10 turns : ±%1.5 FS |
| Repeatability |
3.6° |
| Output Type |
Potentiometric |
| Resistance Values |
5K, 10K |
| Resistance Tolerance |
±% 20 |
| Supply Voltage |
42V max |
| Electrical Connection |
3×0,14 mm PVC cable |
| Operating Temperature |
-30°C…+100°C |
| Protection Class |
IP40 |
| Minimum Life |
10 million turns |
| Material |
Body: Aluminum |
