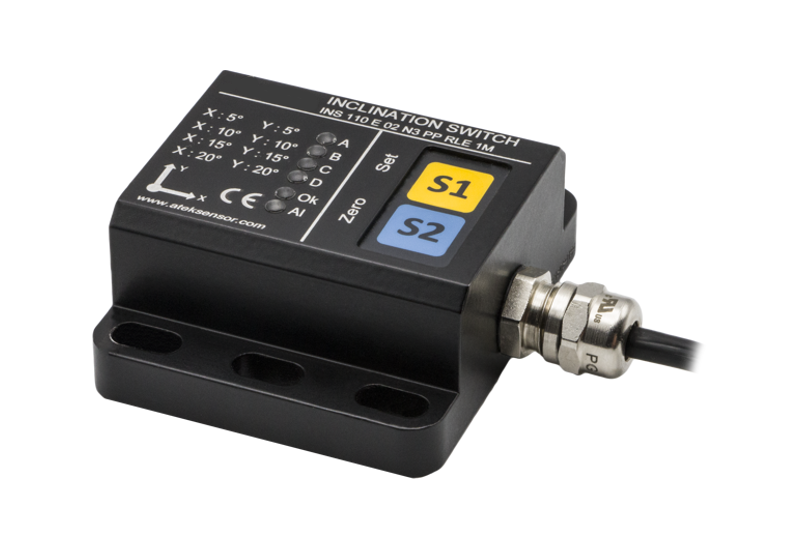

INS 110 Two Axis Tilt Sensor / Inclinometer || ATEK || Made in Türkiye
Two axis (XY) tilt measurement
Adjustable ±90° measuring range
Model with relay or PNP Open Collector output
± 0.15⁰ sensitivity
IP64 protection class
Compact structure
– 4 different operating mode (N1/ N2 / N3 / N5)
– Adjustable set values in calibrated operating mode
– 0 point can be adjusted on the sensor
High precision tilt measurement ±0.1°; compensated axial sensitivity; small and robust metal body
| Measurement Range | Output | Accuracy | Protection | Datasheet |
|---|---|---|---|---|
| 2 axis (X and Y axis ±90°) | Relay PNP Open Collector (Transistor) | ±0,15⁰ | IP 64 |  |
- Two Axis (XY) measurement
- Four different set options (can be changed according to request)
- Model with relay or PNP Open Collector output
- High precision: ±0.15⁰
- Ability to specify 0⁰ point
- Easy setup
- IP64 protection class
- Small and strong metal body
- Compact structure
| Brand |
Atek |
|---|---|
| Measurement Range |
±90⁰ |
| Supply Voltage |
12 … 24 VDC |
| Set Options |
4 different set options (A, B, C, D) |
| Measurement Axes |
XY |
| Output Type |
PNP Open Collector veya Röle Çıkışı |
| Open Collector Specifications |
Output Voltage: ~(V-1) Volt |
| Relay Specifications |
Relay Contact Capacity : 250V AC / 1,25A |
| Angle Resolution |
0,05⁰ |
| Accuracy |
±0,15⁰ |
| Operating Temp. |
-30…+70 °C |
| Relative Humudity |
% 10 ile % 90 |
| Electrical Connection |
3 meters cable or M12 5 pin (male) socket |
| Protection Class |
IP64 |
| Material |
Aluminium |
- Crane systems
- Fire trucks
- In vehicles, angle measurement in many parts such as pedal, steering, gearbox, motor shaft
- On-Vehicle Equipment
- Machine and Automation Applications
- Navigation
- Robotic systems
- Automation
Benzer Ürünler

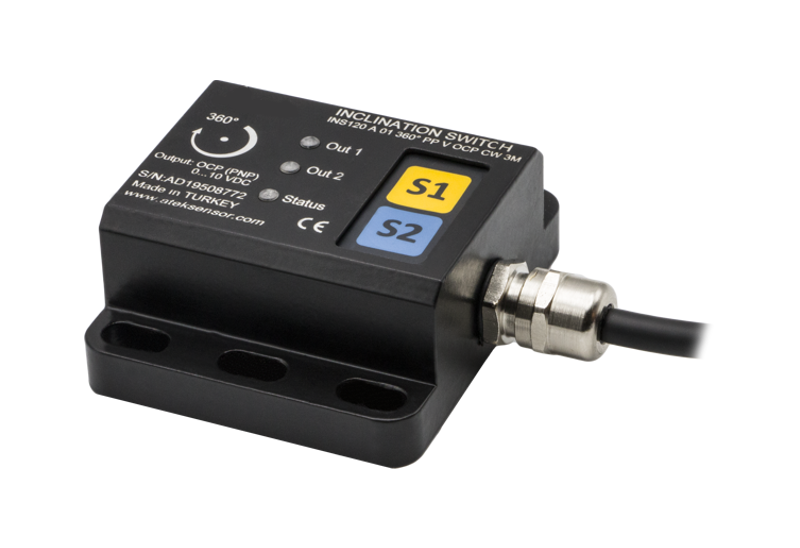

Single axis 360° inclination measurement Analog output options 0...5VDC, 0…10VDC or 4…20mA 2 x PNP open collector output type ±0.15⁰ sensitivity IP64 protection class Compact structure
- Programmable measuring range - Both analog and transistor output at the same time and dual analog output support - 0 point can be adjusted on the sensorYHigh precision tilt measurement ±0.15°; transistor and analog output; compensated axial sensitivity; small and robust metal body
| Measurement Range | Output | Accuracy | Protection | Datasheet |
|---|---|---|---|---|
| 1 axis (X axis 0...360°) | 0...5V / 0…10V / 4…20mA Analog Output 2 x PNP Open Collector (Transistor) | ±0,15⁰ | IP 64 | |

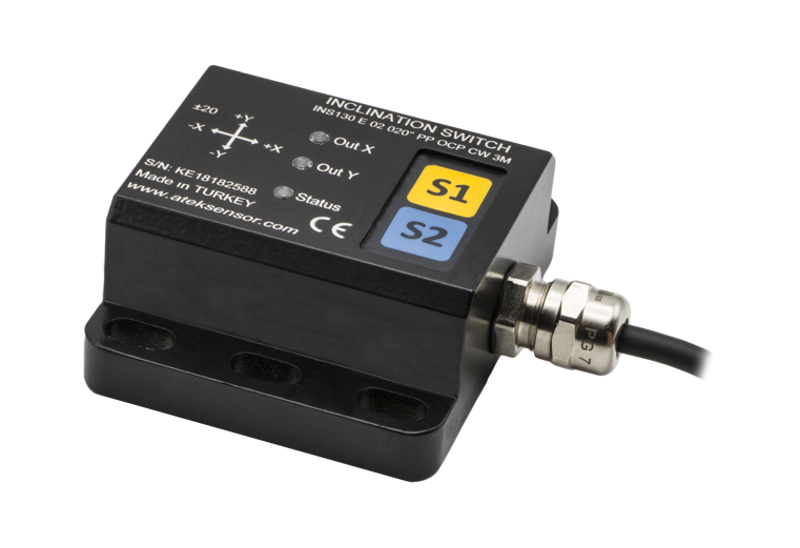

Two axes 0 ... 360⁰ angle and tilt measurement Analog output options 0...5VDC, 0… 10VDC or 4… 20mA PNP Open Collector output ±0.15⁰ sensitivity IP64 protection class Compact structure
- Programmable measuring range - Both analog and transistor output at the same time - 0 point can be adjusted on the sensorHigh precision tilt measurement ±0.15°; compensated axial sensitivity; small and robust metal body
| Measurement Range | Output | Accuracy | Protection | Datasheet |
|---|---|---|---|---|
| 1 axis (X axis 0...360°) 2 axis (X and Y axis ±0,90⁰) | 0...5V / 0…10V / 4…20mA Analog Output PNP Open Collector (Transistor) | ±0,15⁰ | IP 64 | |

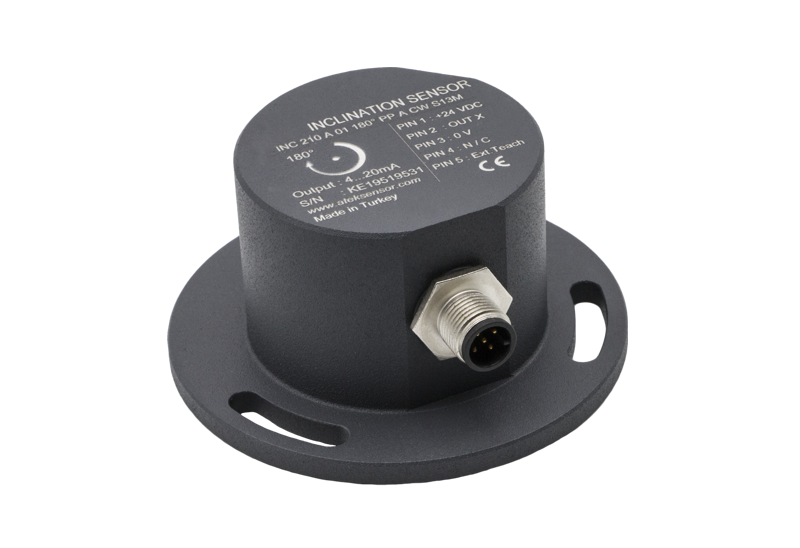

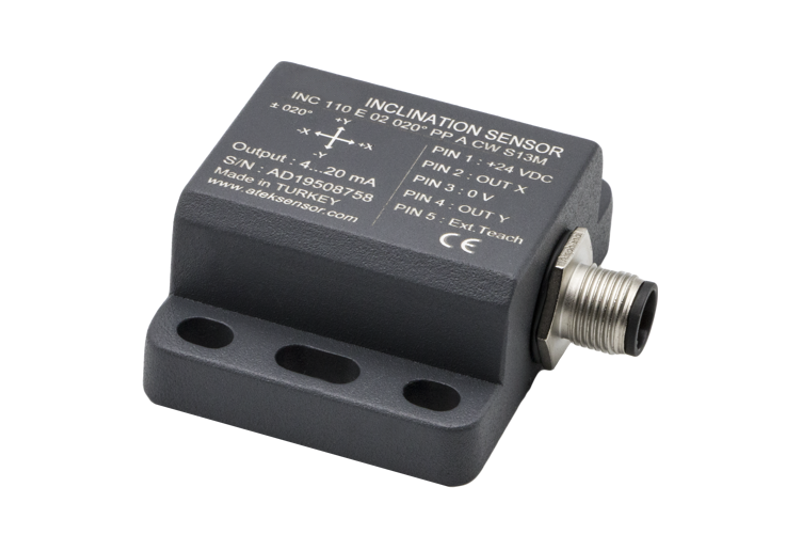

±90⁰ dual-axis measuring range or 0-360 ° single-axis measuring range option 4-20 mA, 0-5V, 0-10V or CANopen signal output option ±0.2⁰ accuracy IP67 protection class Compact structure
Programmable measuring range (Via CANopen)
- Adjustable 0 point with external voltage
High precision angle measurement ±0.2°; compensated axial sensitivity; small and robust rectangle metal body
| Measurement Range | Output | Accuracy | Protection | Datasheet |
|---|---|---|---|---|
| 1 axis (X axis 0...360°) 2 axis (X and Y axis ±0,90⁰) | 0...5V / 0…10V / 4…20mA Analog Output CANopen | ±0,2⁰ | IP 67 | |
Angle measurement up to 360⁰ 4-20 mA, 0-5V, 0-10V or CANopen signal output option ±0.2⁰ accuracy IP67 protection class Compact structure
- Programmable measuring range (Via CANopen) - Redundant output support - Adjustable 0 point with external voltageHigh precision tilt measurement ± 0.2°; compensated axial sensitivity; small and robust round metal body
| Measurement Range | Output | Accuracy | Protection | Datasheet |
|---|---|---|---|---|
| > 1 axis (X axis 0...360°) | 0...5V / 0…10V / 4…20mA Analog Output CANopen | ±0,2⁰ | IP 67 | |
Linear Measurement, Draw Wire Potentiometers, Programmable Draw Wire Sensors, Inclination/ Tilt Measurement

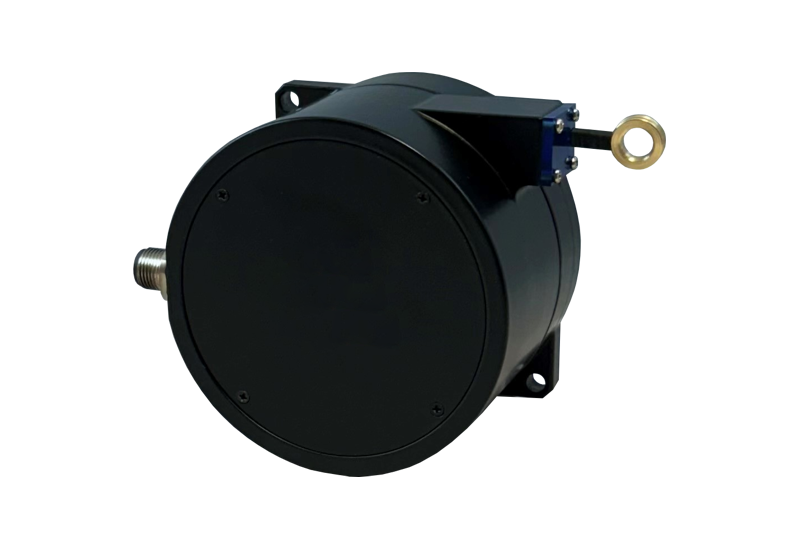

Integrated inclination sensor option for simultaneous length and inclination measurement Different stroke (measuring) lengths up to 10000 mm (10 meters) Selectable angle values between 0...360° or ±180° for inclination measurement Analog or CANopen output Programmable analog output option IP67 protection class
Integrated inclination sensor option for simultaneous length and inclination measurement; programmable analog output; high accuracy; robust stainless steel wire; aluminum body; resistant to shocks and vibrations
Datasheet| Stroke (measuring) Lengths | Inclinometer Measuring Range | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|
| Different measuring lengths up to 10000 mm (optional other strokes) | Different angles between 0…360° and ±180° | Analog or CANopen | IP67 | ±%0,5 FS | |
