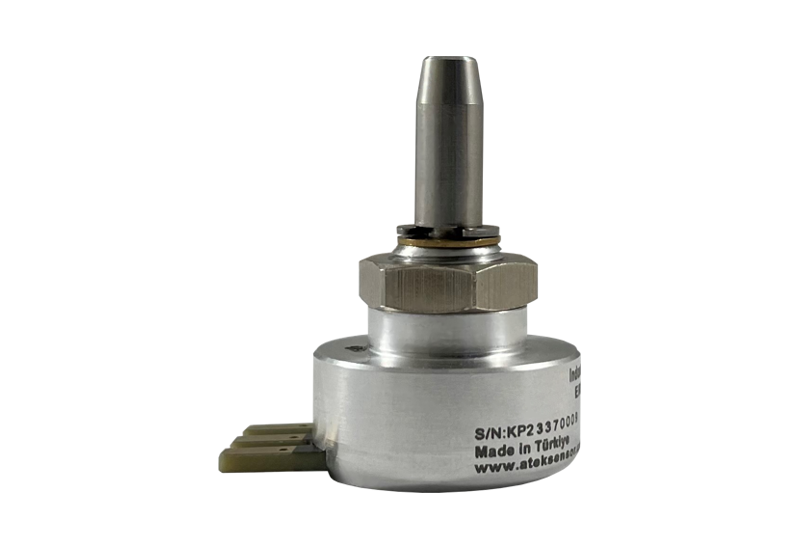

ERP S 22 Series Rotary Potentiometer || ATEK || Made in Türkiye
320° electrical angle
320°±1 mechanical angle (with mechanical stop)
22 mm small body diameter
6 or 6.35mm shaft diameter
High linearity up to ±1%
Long life up to 10 million movements
IP53 protection class
Rotary potentiometer with shaft; movement life up to 10 million; with or without mechanical stop; potentiometric output
| Measuring Range | Shaft Diameter | Body Diameter | Output Type | Protection | Linearity | Datasheet |
|---|---|---|---|---|---|---|
| 320° |
6 mm or 6,34 mm
|
22 mm
|
Potentiometric |
IP53
|
±%1 |  |
- 320° electrical angle
- 320°±1 mechanical angle (with mechanical stop)
- 22 mm small body diameter
- 6 or 6.35mm shaft diameter
- High linearity up to ±1%
- Long life up to 10 million movements
- IP53 protection class
| Brand |
Atek |
|---|---|
| Electrical Angle |
320° or other angles on request |
| Mechanical Angle |
320°±1, with or without mechanical stop |
| Resistance Values |
5K, 10K |
| Resistance Tolerance |
±% 20 |
| Repeatability |
0.1° max. |
| Independent Linearity |
±%1 |
| Output Type |
Potentiometric |
| Supply Voltage |
42V max |
| Recommended Wiper Current |
1 µA max. |
| Power rating |
0,5W @40° max. |
| Insulating Resistance |
>1Gohm @ 500VDC |
| Life |
10 million movements |
| Electrical connection |
3 pins |
| Body Diameter |
22 mm |
| Shaft Diameter |
6mm or 6.35mm (optional others) |
| Torque |
0.7 Ncm max |
| Operating Temperature |
-25°C … +85°C |
| Protection Class |
IP53 |
- Automotive engineering, drive and control engineering
- Controlgears
- Machinery construction
- Shipbuilding
- Medical technology
