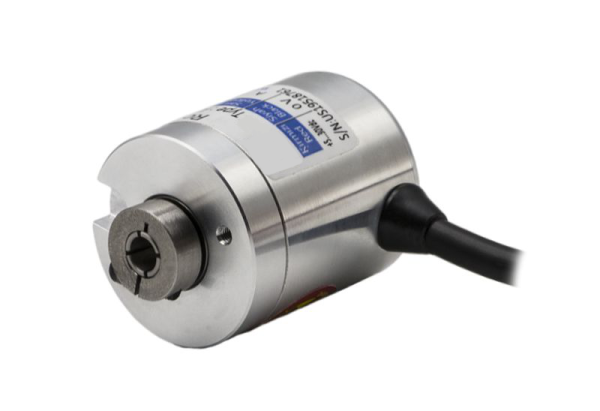

ARS B 37 End Hollow Shaft || ATEK || Made in Türkiye

Click to enlarge
Atek

Incremental measurement with magnetic principle
37 mm body diameter
4, 5 or 6 mm end hollow shaft options
Resolution options from 1 to 1024 pulses
Durable up to 3000 RPM
IP54 protection class

Extremely resistant to harsh environmental conditions with magnetic mesauring principle; incremental precision measurement; 37 mm body diameter; different end hollow shaft options


Datasheet
TR
EN
Resolution Shaft Diameter Body Diameter Output Protection Datasheet
Different options from 1 to 1024 pulses 4, 5 or 6 mm 37 mm
Push-Pull, TTL Line Driver, Open Collector
 IP 54
  • Magnetic principle, incremental, angular measurement
  • 37 mm body diameter
  • End hollow shaft options of 4, 5 or 6 mm diameter
  • Resistant to vibration and shock due to robust aluminum body
  • Easy assembly
  • Resolution options from 1 to 1024 pulses
  • Durable up to 3000 RPM
  • IP54 protection class

    -We highly recommend using our Process Control Devices to precisely display measured values on your Rotary Encoder for your automation solutions.

Brand

Atek
Measuring Type

Magnetic
Resolution

Different options from 1 to 1024 pulses
Max Operating Speed

3000 RPM
Output Frequency

300 kHz
Supply Voltage

10 … 30 VDC or 5 VDC
Current Consumption

50 mA nominal
Output Type

Push pull, TTL Line Driver, Open Collector
Output Signals

A, /A, B, /B, Z, /Z
Input Current

100 mA max (per channel)
Operating Temperature

-25…+85 °C
Storage Temperature

-40…+85 °C
Electrical Connection

5 or 8 x 0,14 mm2 shielded cable
Hollow Diameter

4, 5 or 6 mm
Protection Class

IP54
Material

Body: Aluminum
Shaft: Stainless Steel
  • Servo-motors
  • In the feedback task of measuring linear movements
  • Elevator industry
  • Packaging and Production lines
  • Machinery Industry
  • Textile Machinery
  • Woodworking Machines
  • Turning, Milling
  • Automation and Robots
DATASHEET
PDF
PDF
CAD / STEP
ZIP
