Atek

Incremental measurement with optical principle
58 mm body diameter
10 , 12, 14 or 15 mm hollow shaft options
Resolution options from 1024 to 20000 pulses
Durable up to 6000 RPM
IP54 protection class

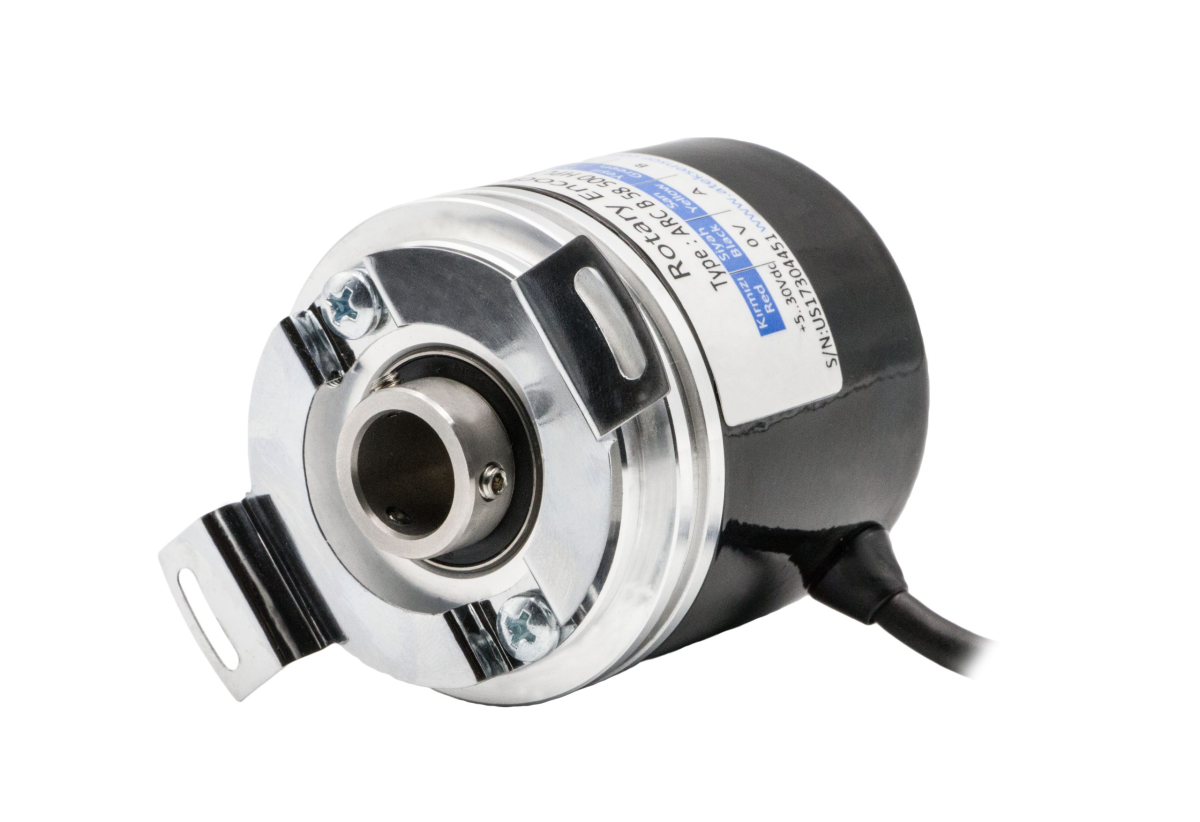

Incremental and extremely high precision measurement with optical measuring principle; 58 mm body diameter; hollow shaft ; different flange options


Datasheet
TR
EN
Resolution Hole Diameter Body Diameter Flange Type Output Protection Datasheet
Different options from 1024 to 20000 pulses 10, 12, 14 or 15 mm 58 mm Z type or Circular
Push-Pull, TTL Line Driver, Open Collector
 IP 54
  • Optic principle, incremental, angular measurement
  • 58 mm body diameter
  • Z-type flange or circular flange options
  • 10, 12, 14 or 15 mm hole diameters
  • Resistant to vibration and shock due to robust aluminum body
  • Easy assembly
  • Resolution options from 1024 to 20,000 pulses
  • Durable up to 6000 RPM
  • IP54 protection class

-We highly recommend using our Process Control Devices to precisely display measured values on your Rotary Encoder for your automation solutions.

Brand

Atek
Measuring Type

Optical
Resolution

Different options from 1024 to 20000 pulses
Max Operating Speed

6000 RPM
Output Frequency

300 kHz
Supply Voltage

10 … 30 VDC or 5 VDC
Current Consumption

50 mA nominal
Output Type

Push pull, TTL Line Driver, Open Collector
Output Signals

A, /A, B, /B, Z, /Z
Input Current

100 mA max (per channel)
Operating Temperature

-25…+85 °C
Storage Temperature

-40…+85 °C
Electrical Connection

5 or 8 x 0,14 mm2 shielded cable
Body Diameter

58 mm
Shaft Diameters

10, 12 ,14, 15 mm
Protection Class

IP54
Material

Body: Aluminum
Shaft: Stainless Steel
  • Servo-motors
  • In the feedback task of measuring linear movements
  • Elevator industry
  • Packaging and Production lines
  • Machinery Industry
  • Textile Machinery
  • Woodworking Machines
  • Turning, Milling
  • Automation and Robots
DATASHEET
PDF
PDF
CAD / STEP
ZIP
