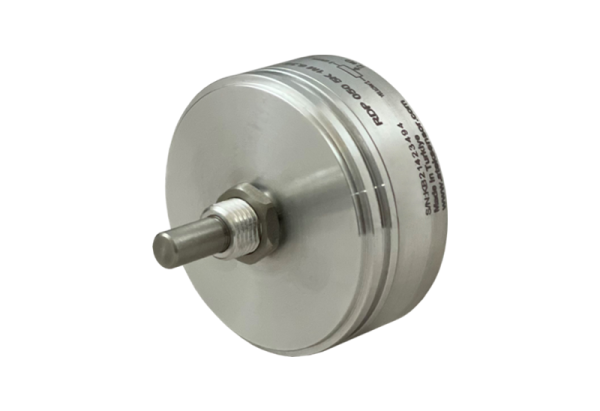

RDP Series Dual Rotary Potentiometer || ATEK || Made in Türkiye
Potentiometric output
R1: 70° / R2: 70° electrical angle
325° mechanical angle
6 or 6.34 mm shaft diameter
50.8 mm body diameter
±%1 linearity
Movement life up to 10 million
IP54 protection
Rotary potentiometer with shaft; movement life up to 10 million; 325° mechanical angle; potentiometric output
| Measuring Range | Shaft Diameter | Body Diameter | Output Type | Potection | Linearity | Datasheet |
|---|---|---|---|---|---|---|
|
R1: 70° / R2: 70° electrical angle
|
6 or 6.34 mm
|
50.8 mm
|
Potentiometric
|
IP54
|
±%1 |  |
- R1: 70° / R2: 70° electrical angle
- 325° mechanical angle
- 6 or 6.34 mm shaft diameter
- 50.8 mm body diameter
- Potentiometric output
- ±%1 linearity
- Long life up to 10 million movements
- IP54 protection
| Brand |
Atek |
|---|---|
| Electrical Angle |
R1: 70° / R2: 70° |
| Resistance Values (R1/R2 |
5K (R1=2.5K, R2=2.5K) veya 10K (R1=5K, R2=5K) |
| Resistance Tolerance |
±% 20 |
| Repeatability |
0.1° max. |
| Independent Linearity |
±% 1 |
| Output Type |
Resistive |
| Supply Voltage |
42V max |
| Recommended Wiper Current |
100 µA max. |
| Minimum Life (electrical) |
10 million movements |
| Electrical Connection |
3×0,102 mm2 soft PVC cable (standard 1m, optional others) |
| Mechanical Angle |
325°, mechanical limited |
| Torque |
0.5 Ncm max. |
| Body Material |
Alüminyum |
| Shaft Material |
Stainless steel |
| Operating Temperature |
-25°C … +75°C |
| Protection |
IP54 |
- Textile machinery
- Automatic door control systems
- Automotive
- All kinds of control and mesurement applications
