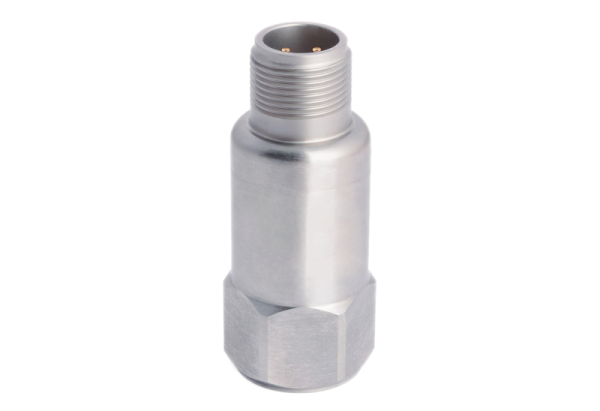

ATS 10 Vibration Sensor || ATEK || Made in Türkiye

Click to enlarge

For use with PLC/DCS systems
0-10mm/sn to 0-100mm/sn velocity ranges
Less than 5% sensitivity
10Hz to 1Khz frequency response
4-20mA output
1/4 28″ UNF Female, M6x1mm Male, M8x1.25mm Male, M10x1.5mm Male etc. connection options
M12 connector
IP67 protection



Datasheet
TREN

Accelerometer for use with PLC/DCS systems; Customisable features

Velocity Range Output Mounted Base Resonance Protection Sensitivity Datasheet
0-10mm/sn, 0-20mm/sn, 0-25mm/sn, 0-50mm/sn, 0-100mm/sn 4-20 mA 5kHz min IP67 %5
  • For use with PLC/DCS systems
  • 0-10mm/sn to 0-100mm/sn velocity ranges
  • Less than 5% sensitivity
  • 10Hz to 1Khz frequency response
  • 4-20mA output
  • M12 connector
  • 1/4 28″ UNF Female, M6x1mm Male, M8x1.25mm Male, M10x1.5mm Male etc. connection options
  • Stainless steel case
  • IP67 protection
Mounted Base Resonance

5kHz min
Velocity Ranges

0-10mm/sn, 0-20mm/sn, 0-25mm/sn, 0-50mm/sn, 0-100mm/sn
Frequency Response

10Hz (600cpm) to 1kHz (60kcpm) ± 5% – ISO10816
Isolation

Base isolated
Current Output

4-20mA DC proportional to Velocity Range
Case Material

Stainless Steel
Sensing Element/Construction

PZT/Compression
Mounting Torque

8Nm
Mounting Threads

¼-28” UNF Female, M6 x 1mm Male, M8 x 1.25mm Male, M10 x 1.5mm Male
Operating Temperature Range

-25 to 120ºC
Protection

IP67

Fans, Motors, Pumps, Compressors, Centrifuges, Conveyors, Air Handlers, Gearboxes, Rolls, Dryers, Presses, Cooling, VAC, Spindles, Machine Tooling, Process Equipment

DATASHEET
PDF
PDF
CAD / STEP
ZIP
